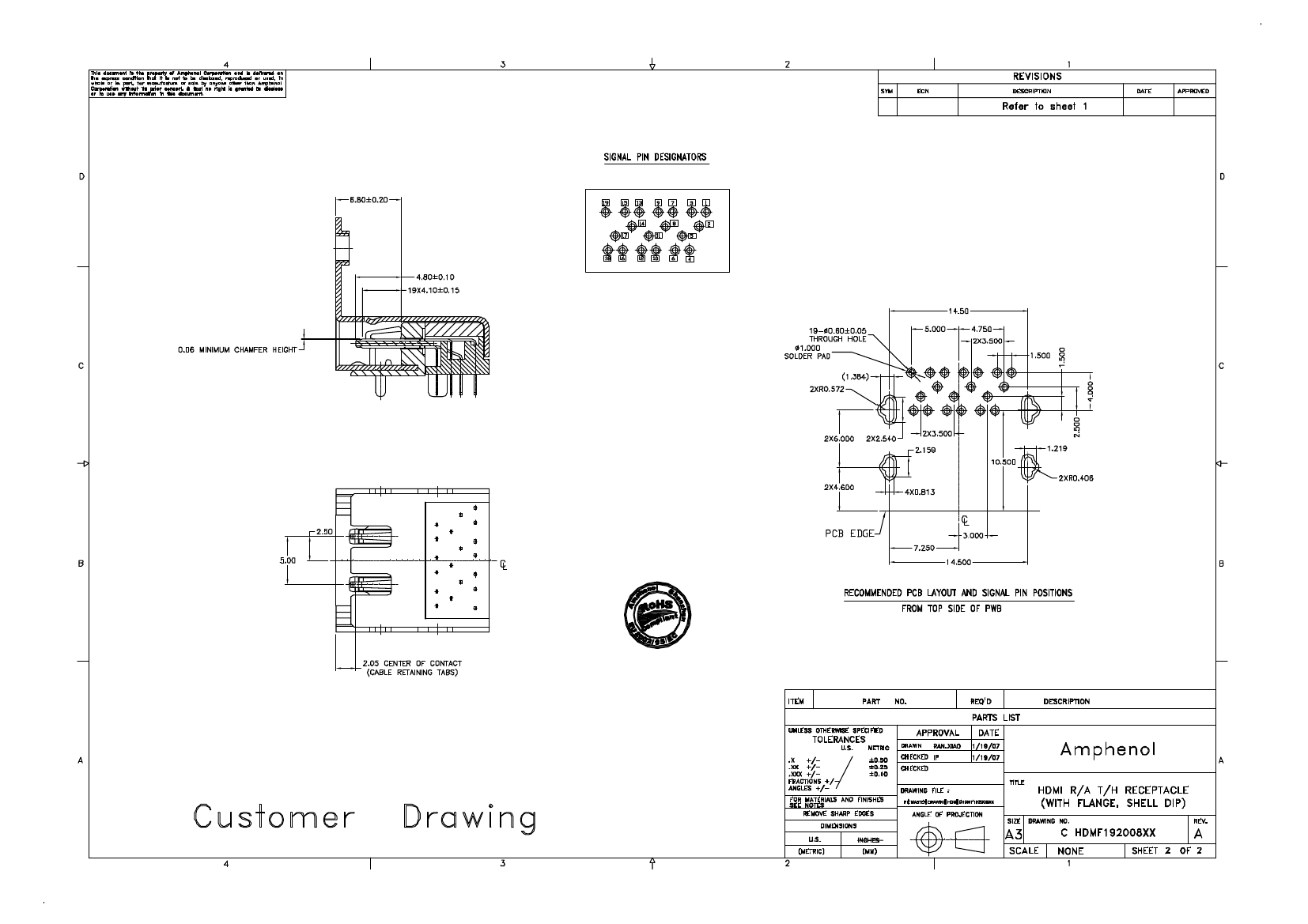

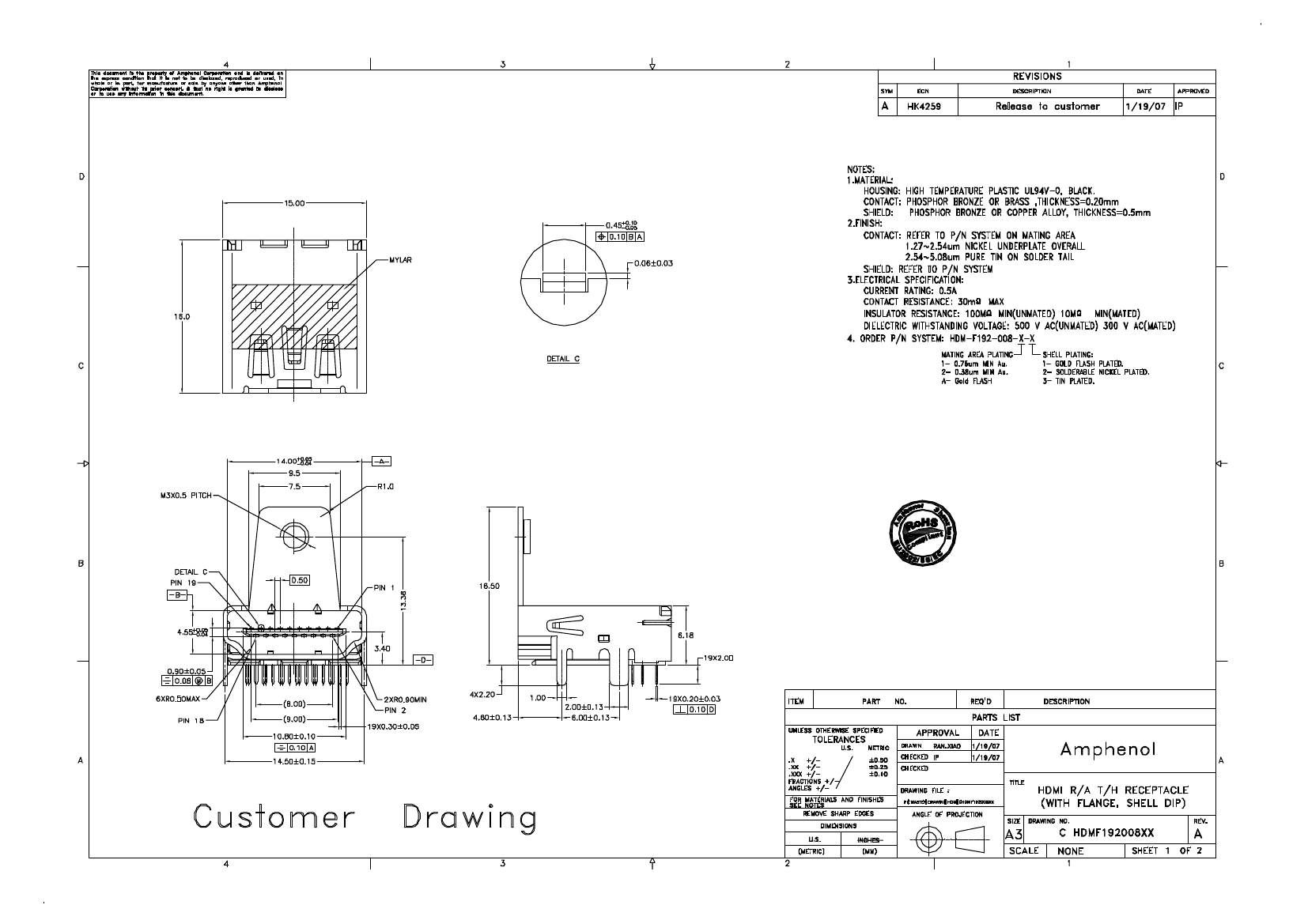

Preview

HDM-F192-008-A-1: DescriptionTelecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size130KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HDM-F192-008-A-1 Overview

Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT

HDM-F192-008-A-1 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (100)
Contact completed and terminated	TIN (200) OVER NICKEL (100)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	PLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HDM-F192-008
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	GOLD
Shell material	COPPER ALLOY/PHOSPHOR BRONZE
Termination type	SOLDER
Total number of contacts	19
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

HDM-F192-008-A-1 Related Products

	HDM-F192-008-A-1	HDM-F192-008-1-1	HDM-F192-008-1-3	HDM-F192-008-1-2	HDM-F192-008-2-2	HDM-F192-008-2-1	HDM-F192-008-2-3	HDM-F192-008-A-2	HDM-F192-008-A-3
Description	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 19 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (50)	GOLD (15) OVER NICKEL (100)	GOLD (15) OVER NICKEL (100)	GOLD (15) OVER NICKEL (100)	GOLD FLASH OVER NICKEL (100)	GOLD FLASH OVER NICKEL (100)
Contact completed and terminated	TIN (200) OVER NICKEL (100)	TIN (200) OVER NICKEL (100)	TIN (200) OVER NICKEL (100)	PURE TIN (200) OVER NICKEL (100)	TIN (200) OVER NICKEL (100)	TIN (200) OVER NICKEL (100)	TIN (200) OVER NICKEL (100)	TIN (200) OVER NICKEL (100)	TIN (200) OVER NICKEL (100)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HDM-F192-008	HDM-F192-008	HDM-F192-008	HDM-F192-008	HDM-F192-008	HDM-F192-008	HDM-F192-008	HDM-F192-008	HDM-F192-008
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	GOLD	GOLD	TIN	NICKEL	NICKEL	GOLD	TIN	NICKEL	TIN
Shell material	COPPER ALLOY/PHOSPHOR BRONZE	COPPER ALLOY/PHOSPHOR BRONZE	COPPER ALLOY/PHOSPHOR BRONZE	COPPER ALLOY/PHOSPHOR BRONZE	COPPER ALLOY/PHOSPHOR BRONZE	COPPER ALLOY/PHOSPHOR BRONZE	COPPER ALLOY/PHOSPHOR BRONZE	COPPER ALLOY/PHOSPHOR BRONZE	COPPER ALLOY/PHOSPHOR BRONZE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	19	19	19	19	19	19	19	19	19
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	-
Maker	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	-
Is Samacsys	-	N	N	N	N	N	N	-	-
