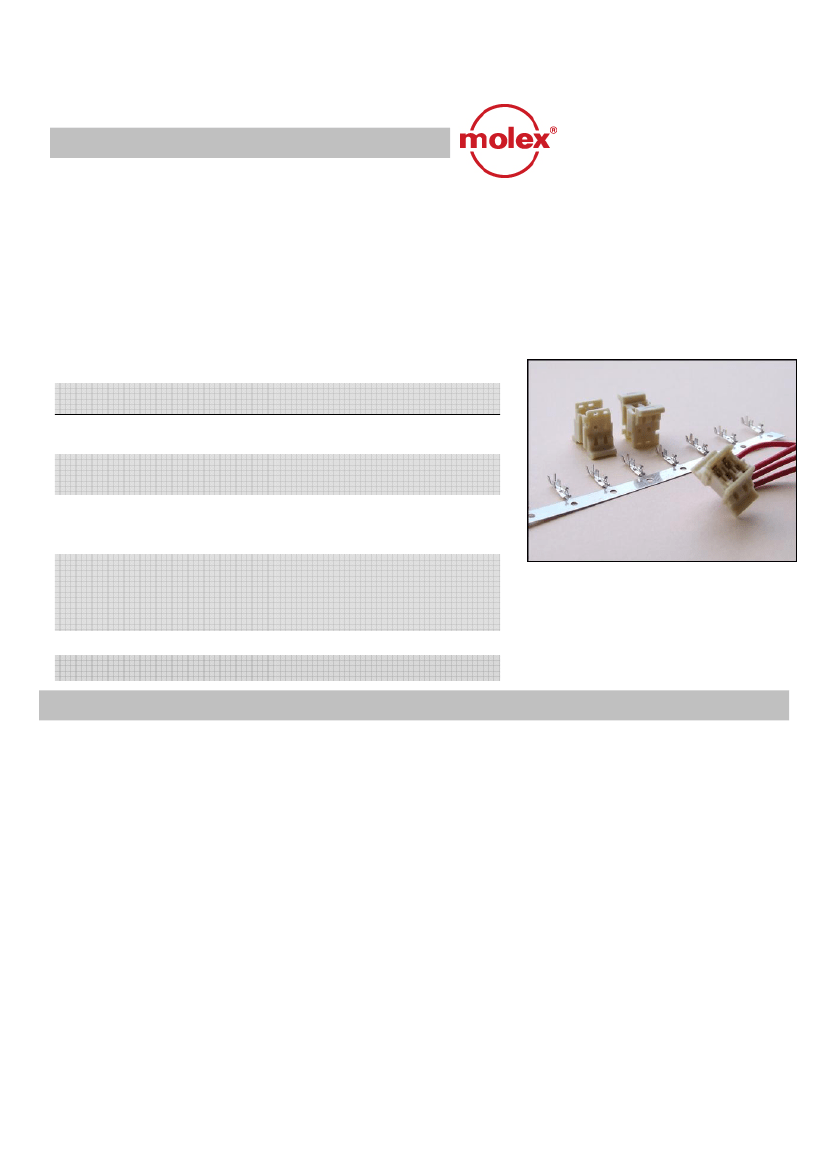

FEATURES AND BENEFITS
Discrete Wire Picoflex
®
The discrete wire picoflex® is the latest addition to the picoflex
®
product family. It is a
significant addition to the picoflex® product rang and is capable of carrying 2.4A and
the housing is glow wire compatible (ICE 60335). It mates with all existing picoflex®
headers with standard circuit size ranging from 4 to 26. Ergonomic design enables
easy of mating and un-mating which eliminates the requirement for an extraction tool.
Samples and application tooling are available through your local sales office.
1st to market – no known competitors
1.27mm (.050”) Pitch
Picoflex
®
Discrete Wire
91935 (Housing)
91821 (Terminal)
Housing and Terminal
Features
Glow wire compatible
2.4Amps
Easy grip finger tabs
Benefits
Suitable for use in stand alone, unattended
appliances
Can be used in power applications with
specific headers
Ease of mating and un-mating
Extraction tool not required
Increase customer production outputs
Hand and semi-automatic crimp tooling
available
Mini-Mac compatible
Low cost application tooling
No competitors
Can be mated to all existing headers
Robust crimp terminal design
1st to market
Standard interface design
SPECIFICATIONS
Specifications
Reference Information
Packaging: Bag/Reel
Mates With: All picoflex
®
headers
Glow-wire compatibility: IEC 60335
Designed In: Millimeters
Electrical
Voltage: 250V max
Current: 2.4A max
Contact Resistance: 15 milliohms
Dielectric Withstanding Voltage:
750V AC
Insulation Resistance: 1,000
Megohms min
Mechanical
Contact Retention to Housing: 15N
Mating Force: 1.7N max (Tin)
1.1N max (Gold)
Unmating Force: 0.25N
Durability: 30 cycles (Tin)
100 cycles (Gold)
Physical
Housing: PET 15% glass fill UL 94 V-0
Contact: Copper alloy
Plating:
Contact Area — Tin or Gold
Crimp Area —
Tin
Operating Temperature: -40°C to
105
°C
APPLICATIONS
Markets and Applications
White goods
Automotive
Medical
Industrial
Other Markets
–
Suitable in any markets where signal and power connections are required
1.27mm (.050”) Pitch
Picoflex
®
Discrete Wire
91935 (Housing)
91821 (Terminal)
Housing and Terminal
ORDERING INFORMATION
Order No.
91935-9004
91935-9006
91935-9008
91935-9010
91935-9012
91935-9014
91935-9016
91935-9018
91935-9020
91935-9022
91935-9024
91935-9026
91821-0001
91821-0003
Circuit Size
4
6
8
10
12
14
16
18
20
22
24
26
N/A
N/A
Description
Housing
Housing
Housing
Housing
Housing
Housing
Housing
Housing
Housing
Housing
Housing
Housing
Terminal
Terminal
Plating
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Tin
Gold
