GD74HCT390 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> GD74HCT390

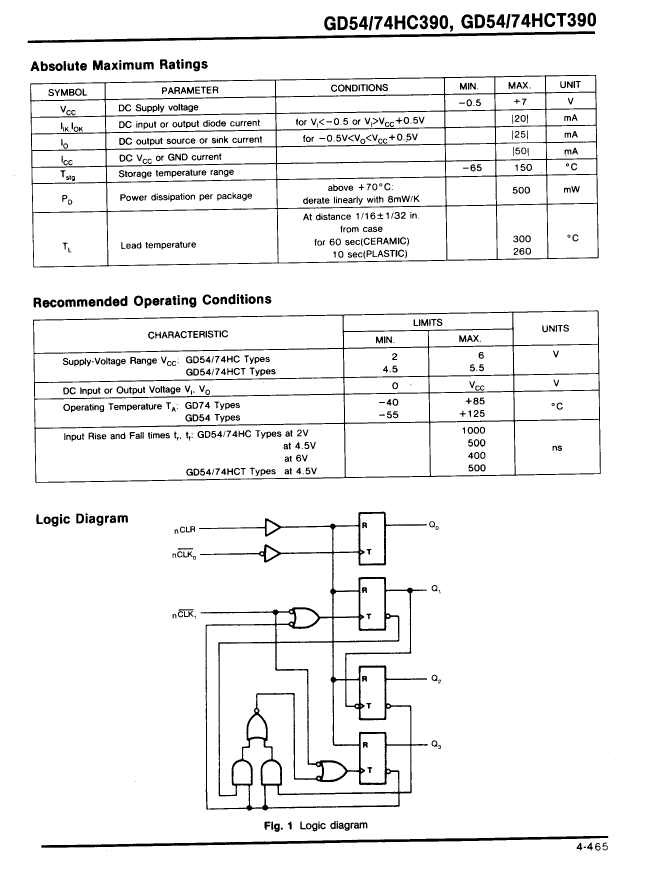

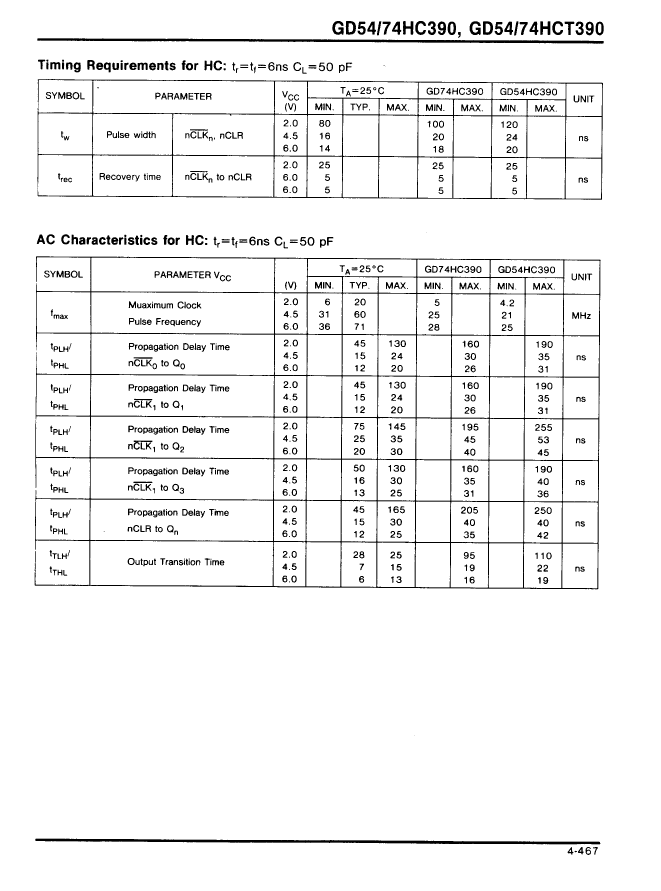

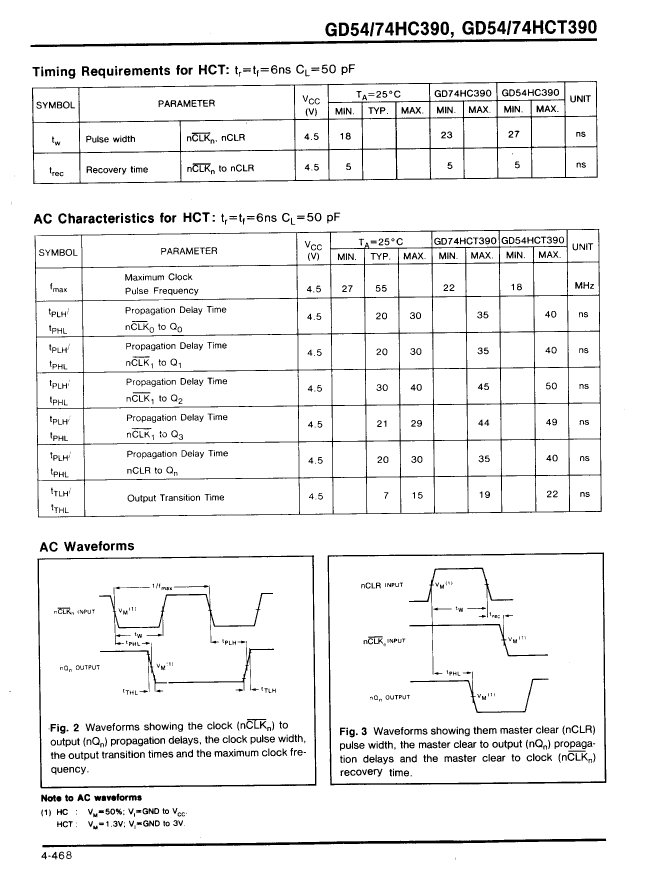

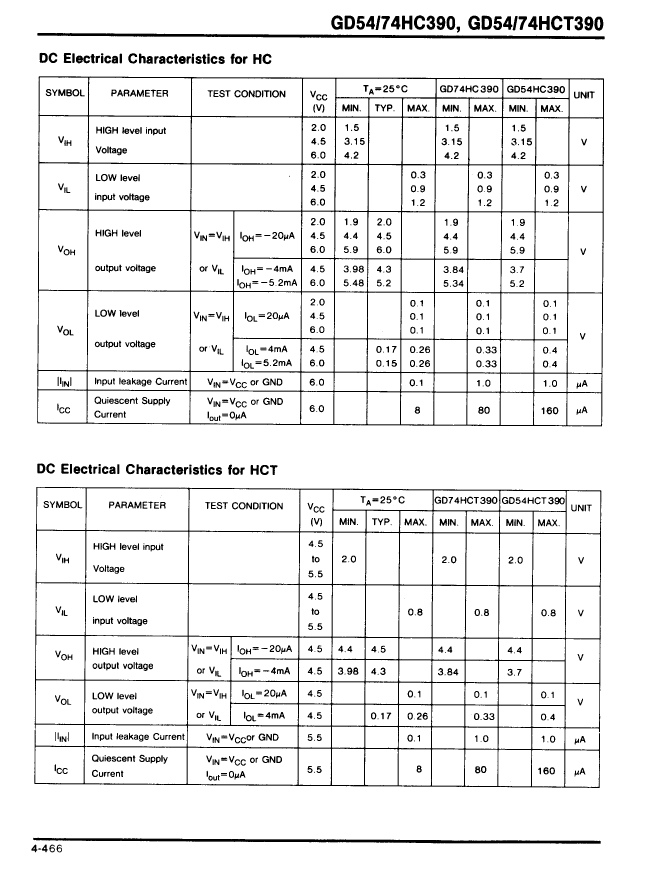

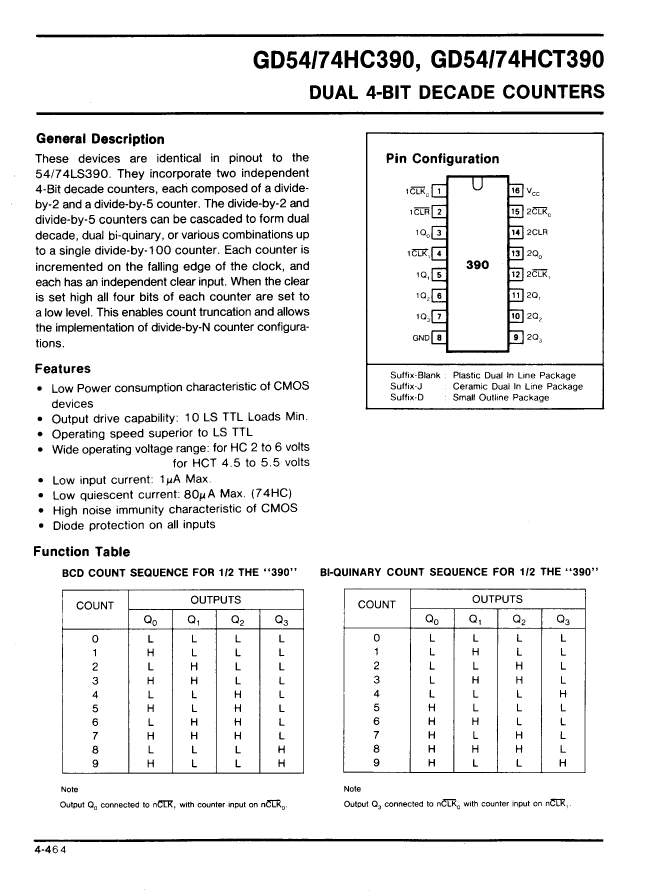

Preview

GD74HCT390: DescriptionCounter, Asynchronous, Up Direction, CMOS, PDIP16,; Categorylogic logic; File Size261KB，5 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GD74HCT390 Overview

Counter, Asynchronous, Up Direction, CMOS, PDIP16,

GD74HCT390 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Counting direction	UP
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	NO
Maximum Frequency@Nom-Sup	22000000 Hz
MaximumI(ol)	0.004 A
Operating mode	ASYNCHRONOUS
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

GD74HCT390 Related Products

	GD74HCT390	GD74HCT390D	GD54HC390J	GD74HCT390J	GD74HC390J	GD74HC390D	GD54HCT390J	GD74HC390
Description	Counter, Asynchronous, Up Direction, CMOS, PDIP16,	Counter, Asynchronous, Up Direction, CMOS, PDSO16,	Counter, Asynchronous, Up Direction, CMOS, CDIP16,	Counter, Asynchronous, Up Direction, CMOS, CDIP16,	Counter, Asynchronous, Up Direction, CMOS, CDIP16,	Counter, Asynchronous, Up Direction, CMOS, PDSO16,	Counter, Asynchronous, Up Direction, CMOS, CDIP16,	Counter, Asynchronous, Up Direction, CMOS, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP	UP	UP	UP	UP
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDSO-G16	R-XDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	NO	NO	NO	NO	NO	NO	NO	NO
Maximum Frequency@Nom-Sup	22000000 Hz	22000000 Hz	21000000 Hz	22000000 Hz	25000000 Hz	25000000 Hz	18000000 Hz	25000000 Hz
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	125 °C	85 °C	85 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	DIP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	SOP16,.25	DIP16,.3	DIP16,.3	DIP16,.3	SOP16,.25	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	2/6 V	5 V	2/6 V	2/6 V	5 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
