GD74LS04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> GD74LS04

GD74LS04: DescriptionInverter, LS Series, 6-Func, 1-Input, TTL, PDIP14,; Categorylogic logic; File Size47KB，2 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

GD74LS04 Overview

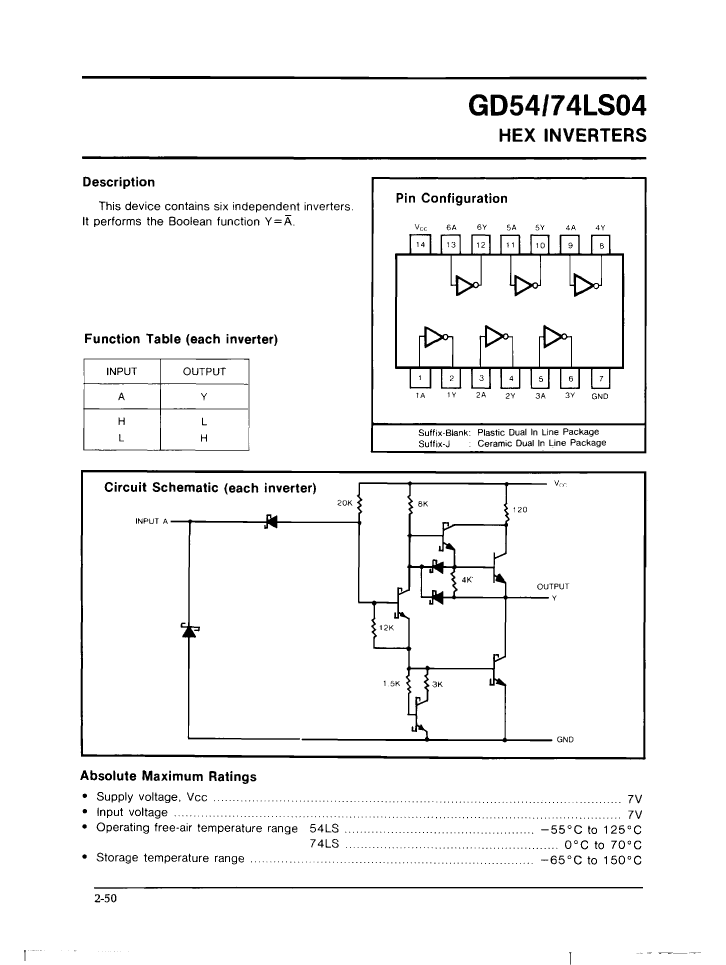

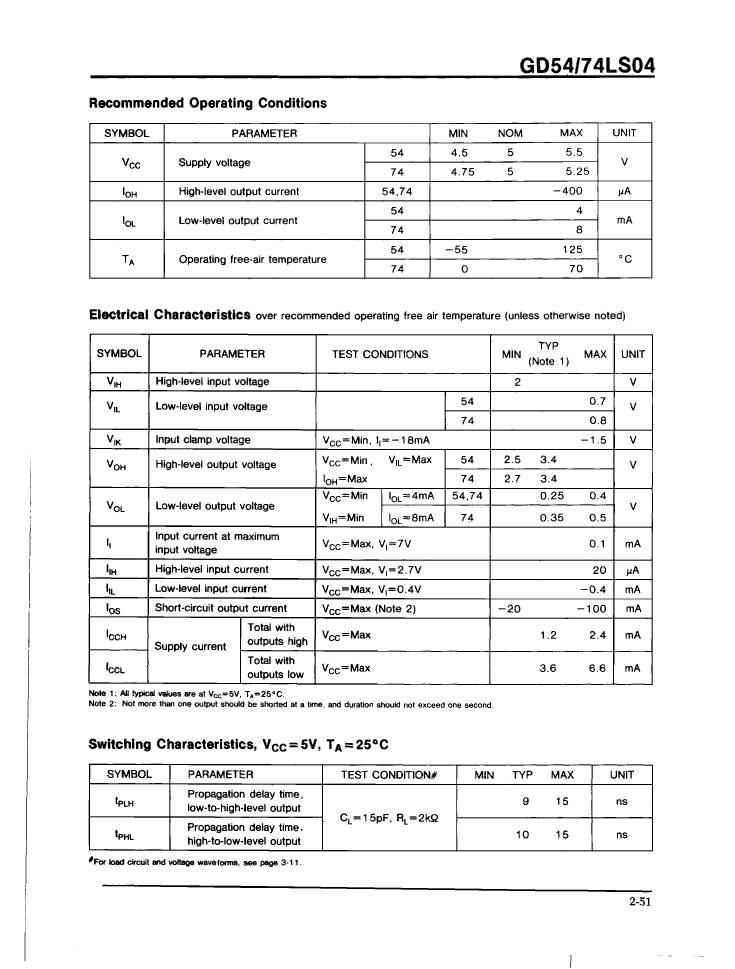

Inverter, LS Series, 6-Func, 1-Input, TTL, PDIP14,

GD74LS04 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	15 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	6.6 mA
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

GD74LS04 Related Products

	GD74LS04	GD54LS04	GD54LS04J	GD74LS04J
Description	Inverter, LS Series, 6-Func, 1-Input, TTL, PDIP14,	Inverter, LS Series, 6-Func, 1-Input, TTL, PDIP14,	Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14,	Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14,
Reach Compliance Code	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-CDIP-T14	R-CDIP-T14
Load capacitance (CL)	15 pF	15 pF	15 pF	15 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6
Number of entries	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	6.6 mA	6.6 mA	6.6 mA	6.6 mA
propagation delay (tpd)	15 ns	15 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
