SWT7-X1BTR

Description
Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.55N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size353KB,5 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Environmental Compliance
Download Datasheet Parametric View All

SWT7-X1BTR Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.55N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT

SWT7-X1BTR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator typeSTEM
body width6.2 mm
body height2 mm
Body length or diameter6.3 mm
Circuit configuration1X1
Maximum contact current (DC)0.05 A
Contact (DC) maximum rated R load.05A@12VDC
Maximum contact voltage (DC)12 V
Manufacturer's serial numberSWT7
Installation featuresSURFACE MOUNT-STRAIGHT
Number of switches1
Maximum operating force2.55 N
Maximum operating temperature70 °C
Minimum operating temperature-20 °C

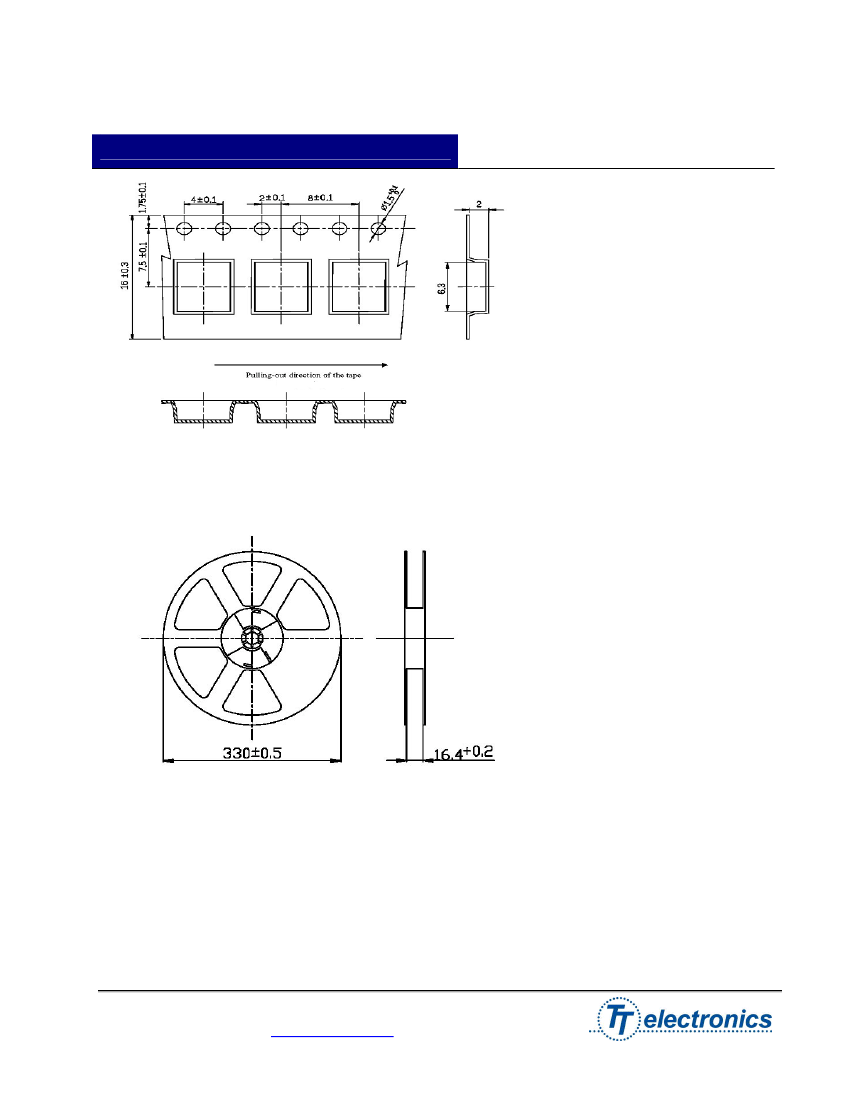

method of packingTAPE AND REEL
surface mountNO
Switch actionMOMENTARY-TACTILE
switch functionSPST
Switch typeKEYPAD SWITCH
Termination typeSOLDER
Base Number Matches1
Model SWT7
Tactile Switches, 6.2 X 6.3 mm
Low Profile, SMD
RoHS Compliant

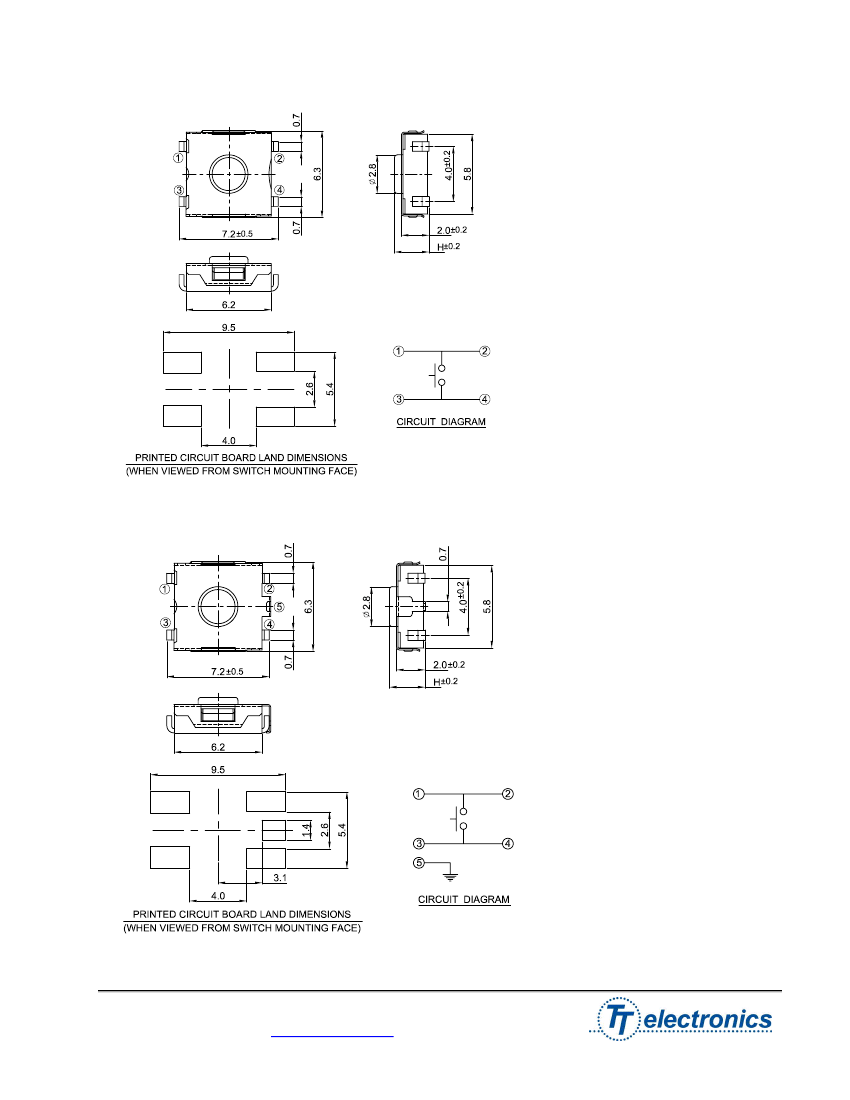

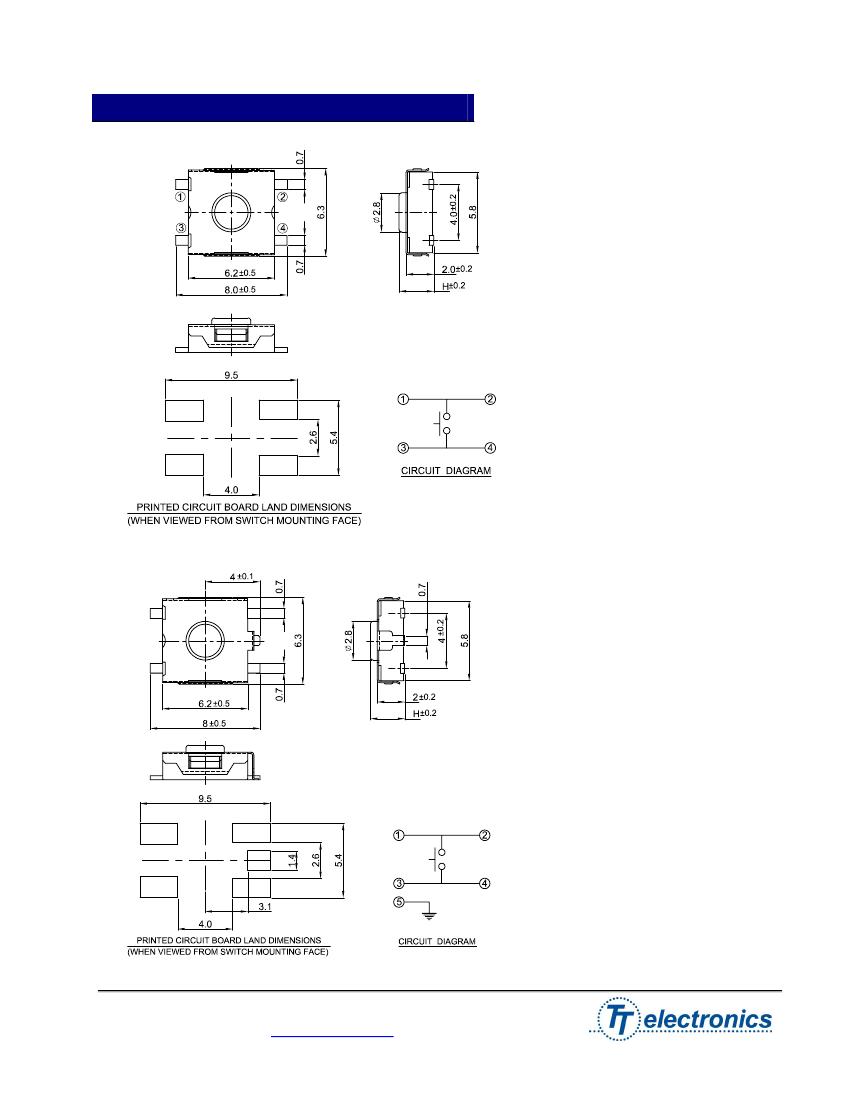

MODELS AVAILABLE
Top Actuation – G Pin
Top Actuation - G Pin w/ Ground
Top Actuation - J Pin
Top Actuation - J Pin w/ Ground
SWT7-G
SWT7-X
SWT7-J
SWT7-Z
ELECTRICAL
Contact Resistance
Insulation Resistance
Dielectric Strength
Rating
Contact Arrangement
100 mΩ
100 MΩ min
AC 250V
DC 12V, 50 mA
Single throw single pole
ENVIRONMENTAL
Life Mechanical
Operating Force Range (refer to operating force table)
Operating Temperature Range
Storage Temperature Range
Stop Strength
Vibration
Shock
Soldering
100K Cycles
100 gf – 260 gf
-20 C – 70 C
-30 C – 80 C
Vertical Static Load of 3Kgf
Mil-STD-202F, Method 201A
Mil-STD-202F, Method 213B Condition A
Recommendations available upon request
o
o
o
o
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
October 10, 2006
Website:
www.bitechnologies.com
page 1 of
5
BI technologies
