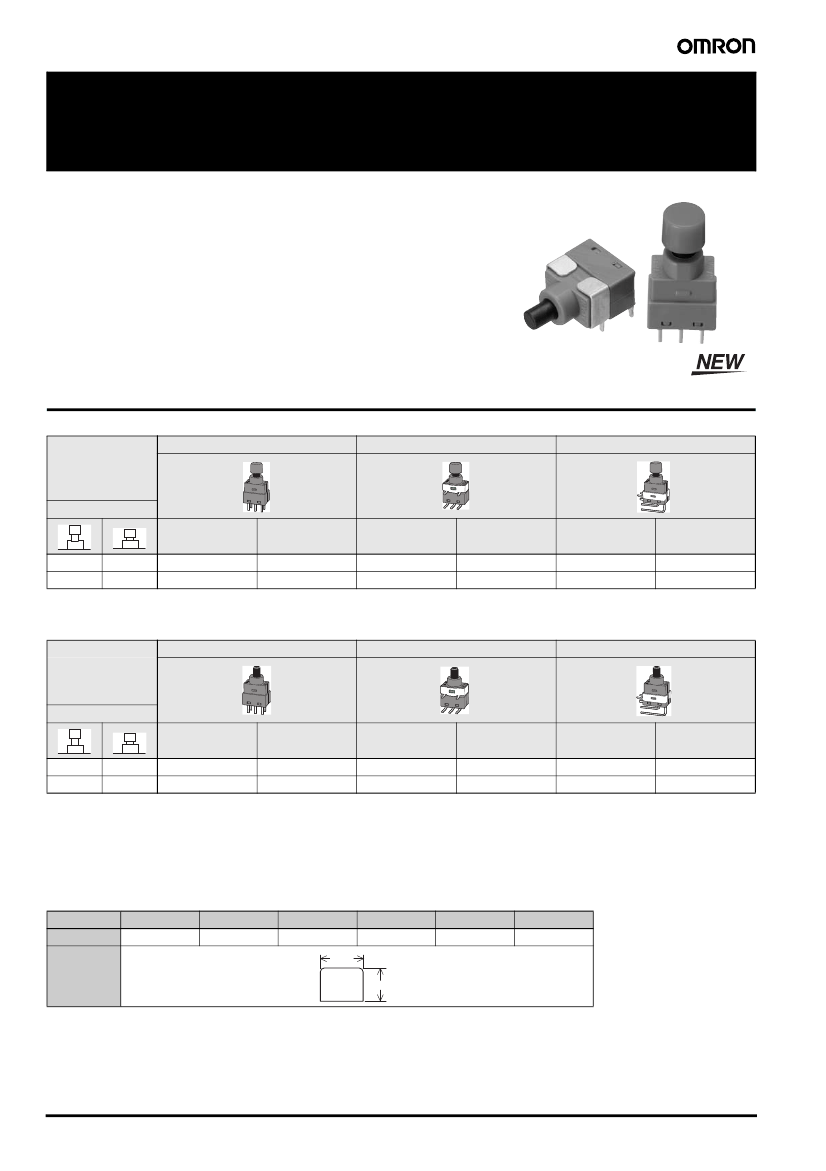

Pushbutton Switch (Microminiaturize)
A9P
Two-point clip contact mechanism
combined with see-saw action.
•
Gold-plated clip contact and cleaning mechanisms ensure high reliability.
•
Specially designed to allow no grease entry into the contact portion.
•
Sealed against flux entry and a built-in "O-ring ensures immersion wash ability.
•
Washable models. (IP64)
•
RoHS
Ordering Information
●
With button
Terminal style
DIP terminal
Right Angle
Vertical Mount
Switching Function
Single Pole Double
Throw
ON
ON
ON
(ON)
A9P11-0031
A9P13-0031
Double Pole Double
Throw
A9P21-0031
A9P23-0031
Single Pole Double
Throw
A9P11-0032
A9P13-0032
Double Pole Double
Throw
A9P21-0032
A9P23-0032
Single Pole Double
Throw
A9P11-0033
A9P13-0033
Double Pole Double
Throw
A9P21-0033
A9P23-0033
Note:
(ON) is Momentary
●
Without button
Terminal style
DIP terminal
Right Angle
Vertical Mount
Switching Function
Single Pole Double
Throw
ON
ON
ON
(ON)
A9P11-0011
A9P13-0011
Double Pole Double
Throw
A9P21-0011
A9P23-0011
Single Pole Double
Throw
A9P11-0012
A9P13-0012
Double Pole Double
Throw
A9P21-0012
A9P23-0012
Single Pole Double
Throw
A9P11-0013
A9P13-0013
Double Pole Double
Throw
A9P21-0013
A9P23-0013
Note: 1.
(ON) is Momentary
2.
Plunger coller
Gray: Alternate
Ivory: Momentary
●
Button
Available in a wide range of color.
Please order separately excluding red.
Color
White
A9P-011
Black
A9P-021
Gray
A9P-031
5 dia.
Blue
A9P-041
Green
A9P-051
Yellow
A9P-061
Configuration
4
1
Pushbutton Switch (Microminiaturize)
A9P

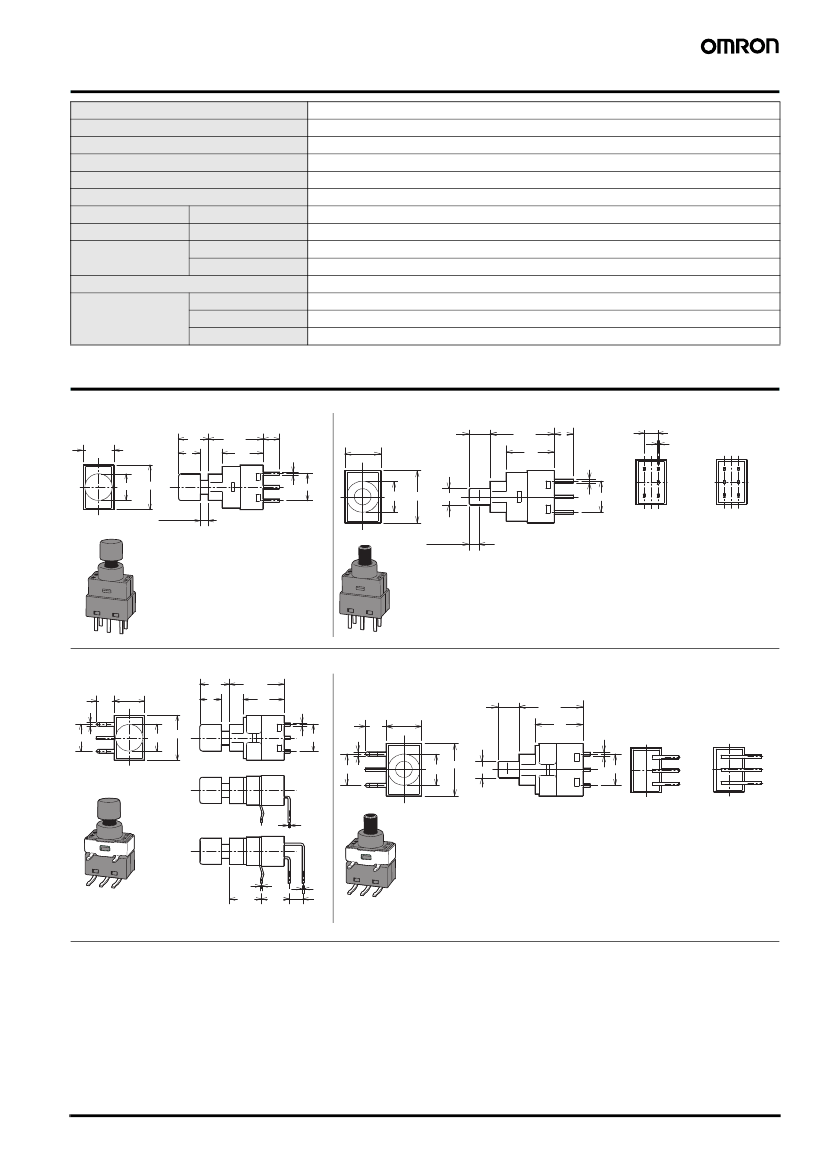

Specifications
Switching capacity
Ambient temperature
Ambient humidity
Insulation resistance
Contact resistance
Dielectric strength
Vibration resistance
Shock resistance
Life expectancy
Operating force
DIP terminal
Weight
Right Angle
Vertical Mount
Malfunction
Malfunction
Mechanical
Electrical
AC/DC 60V 50mA, AC/DC 20mV 1μ A (minimum current)
-20 to 80
°C
60% RH Max. (with no icing or condensation)
operating : 45% to 85% (5 to 35
°C
)
1000 MΩ min (Initial value)
50 mΩ max (Initial value)
500VAC for 1 min between terminals, between terminals and ground
Malfunction: 10 to 55Hz, 1.5-mm double amplitude
Malfunction: 500m/s
2
min
50,000 operations min
50,000 operations min
Alternate: 1.96 to 6.86 N / Momentary: 1.47 to 3.43 N
0.7 g
0.9 g
0.9 g

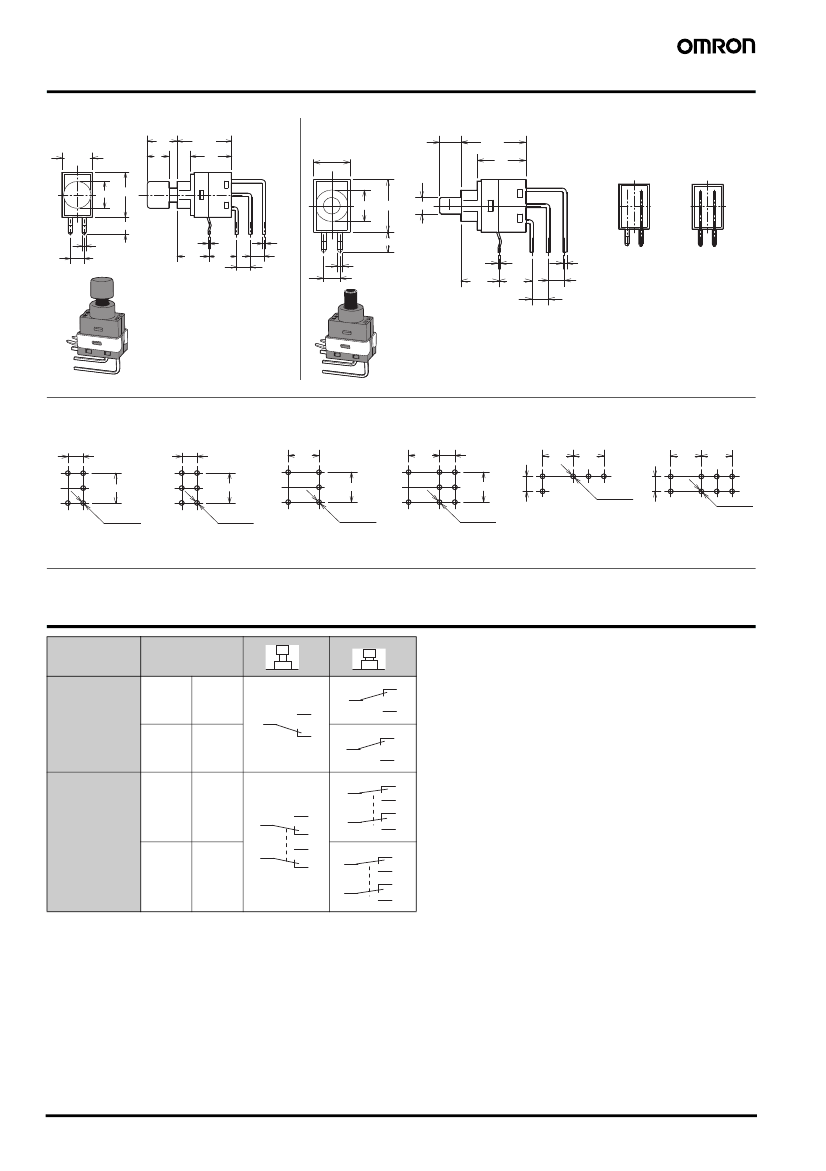

Dimensions
●
DIP terminal
With button
5.5
5.6
±
0.3
4
10
±
0.5
7.5
3
5.6
±
0.3
0.6
JAPAN
(Unit: mm)
Without button
3.3
±
0.3
10
±
0.5
7.5
0.6
5.08
(1)
3
2.54
0.4
(4)
(5)
5 dia. 8.4
±
0.3
2.6 dia.
JAPAN
stroke 1.5
5.08
(3)
(6)
(1)
(2)
(3)
(4)
(5)
(6)
JAPAN
stroke 1.5
●
Right Angle
With button
3.2
0.7
5.6
±
0.3
5.08
JAPAN
5.08
JAPAN
0.4
0.3
5.84
5.08
0.4
2.54
JAPAN
JAPAN
JAPAN
5 dia. 8.4
±
0.3
5.5
4
10
±
0.5
7.5
0.6
8.4
±
0.3
5 dia.
5.08
Single Pole Type Double Pole Type
Without button
3.3
±
0.3
3.2
0.7
8.4
±
0.3
5 dia.
2.6 dia.
5.6
±
0.3
10
±
0.5
7.5
0.6
(4)
5.08
(5)
(6)
(1)
(2)
(3)
(4)
(5)
(6)
Single Pole Type
Double Pole Type
Pushbutton Switch (Microminiaturize)
A9P
2
Safety Precautions
●
Cautions
Use the Pushbutton Switch within the rated voltage and current
ranges, otherwise the Pushbutton Switch may have a shortened life
expectancy, radiate heat, or burn out. This particularly applies to the
instantaneous voltages and currents when switching.
●
RoHS Compliant
The "RoHS Compliant" designation indicates that the listed models
do not contain the six hazardous substances covered by the RoHS
Directive.
Reference: The following standards are used to determine compli-
ance for the six substances.
•
Lead: 1,000 ppm max.
•
Mercury: 1,000 ppm max.
•
Cadmium: 100 ppm max.
•
Hexavalent chromium: 1,000 ppm max.
•
PBB: 1,000 ppm max.
•
PBDE: 1,000 ppm max.
●
Handling
Do not apply excessive operating force to the Switch. Otherwise the
Switch may be damaged or deformed, and the switch mechanism
may malfunction as a result. Apply an operating force not exceeding
9.8 N. Apply the operating load from the side of the striker. Do not
apply a load from an angle or from above the striker. Doing so may
deform the Switch contact.
●
Soldering
Observe the following conditions when soldering the Pushbutton
Switch.
●
Environment for Storage and Use
To prevent discoloration of the terminals and other problems during
storage, do not store the switch in locations subject to the following
conditions.
1. High temperatures or humidity
2. Corrosive gases
3. Direct sunlight
Also, the switch is not waterproof or splash-resistant. Do not install or
use the switch in locations that are subject to contact with water.
Do not subject the switch to freezing or condensation.
Automatic Soldering Bath
Soldering temperature: 260°C max. (Preheating: 100°C 120 s)
Soldering time: 5 s max.
Manual Soldering
Soldering temperature: 350°C at the tip of the soldering iron.
Soldering time: 3 s max.
●
Washing
Apply alcohol or fluorine based solvents to clean.
Do not clean the switch immediately after soldering. Wait for at least
five minutes after soldering before cleaning.
Ultrasonic cleaning is not available dip into the switch washing
agents for two minute maximum.
●
Packing
100 per plastoc bag.
●
Using Flux
Making mistakes in the type of flux or in the amount or method in
which it is applied can cause flux to enter the interior of the Switch,
with adverse effects on Switch performance. Assess the proper flux,
conditions, and methods prior to using it.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. A170-E1-01
In the interest of product improvement, specifications are subject to change without notice.
OMRON Corporation
Electronic Components Company
Switch Division
Manual Switch Department
Shiokoji Horikawa, Shimogyo-ku,
Kyoto, 600-8530 Japan
Tel: (81)75-344-7096/Fax: (81)75-344-7188
Printed in Japan
0108 (0108)
