S87C752-6F28 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> S87C752-6F28

S87C752-6F28: DescriptionMicrocontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP28,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，18 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

S87C752-6F28 Overview

Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP28,

S87C752-6F28 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
bit size	8
CPU series	8051
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	64
rom(word)	2048
ROM programmability	UVPROM
speed	12 MHz
Maximum slew rate	20 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

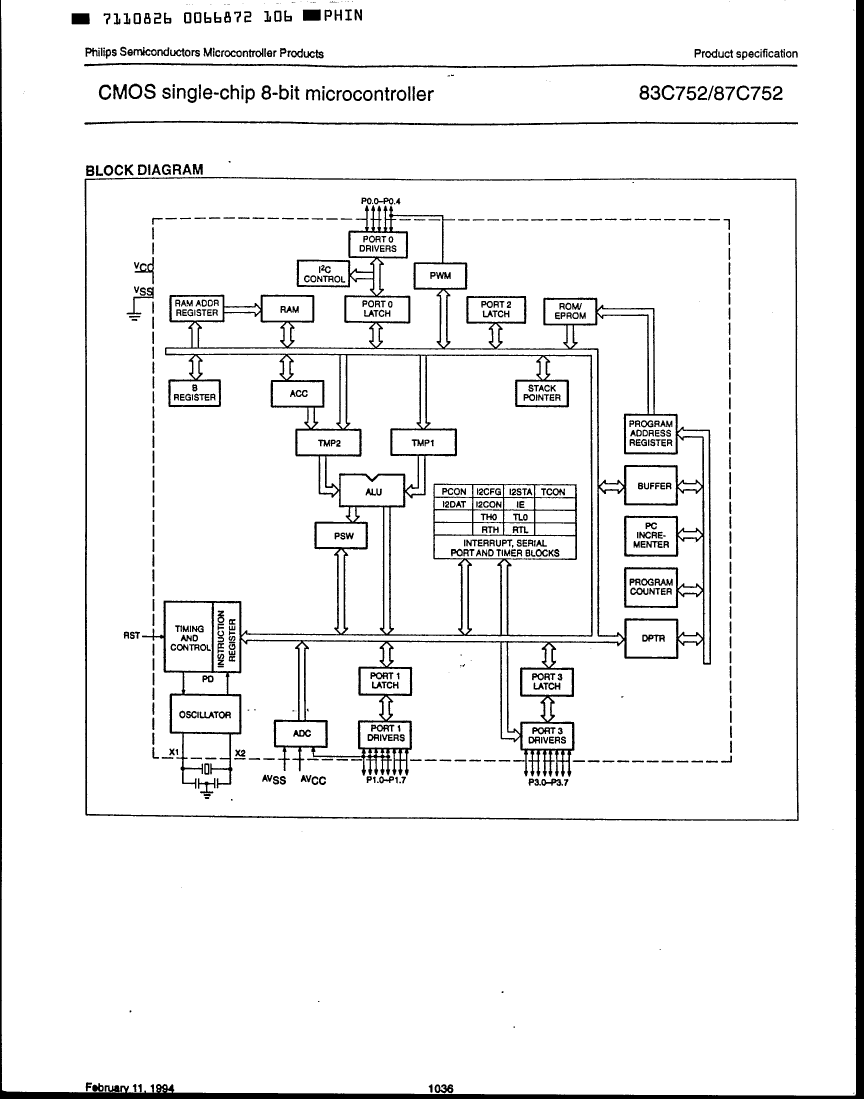

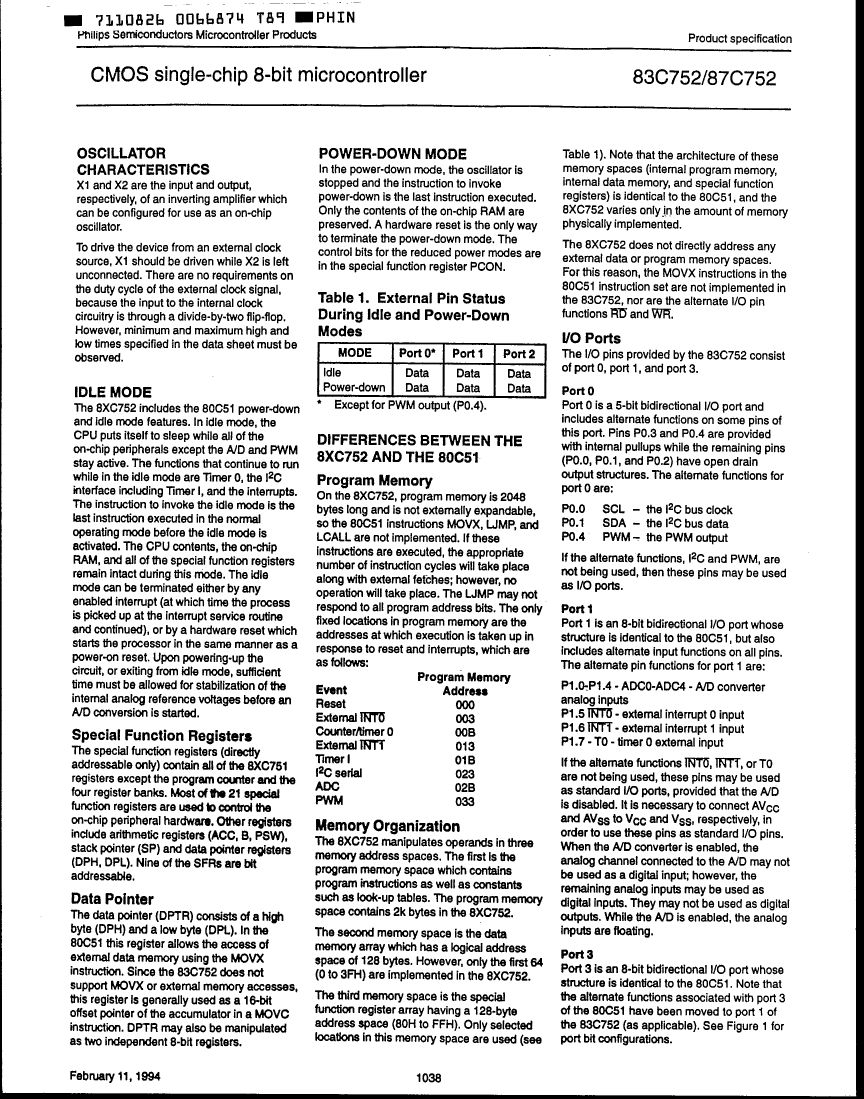

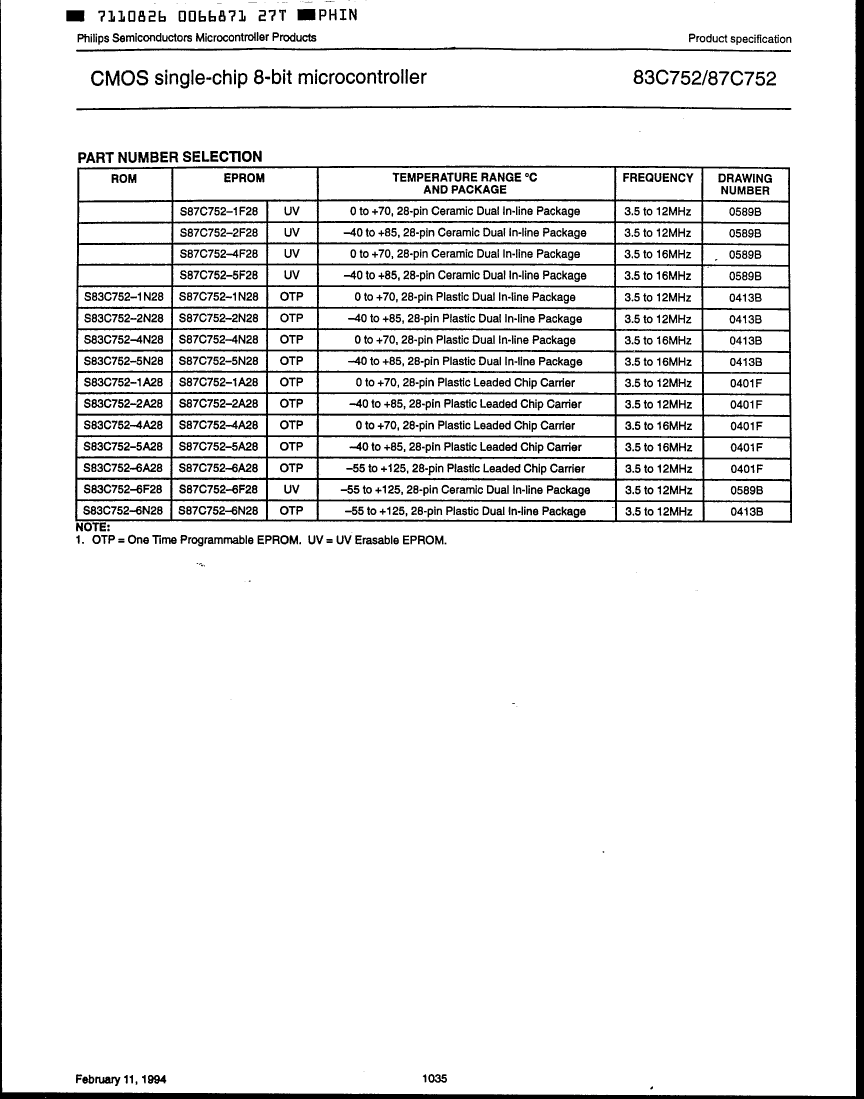

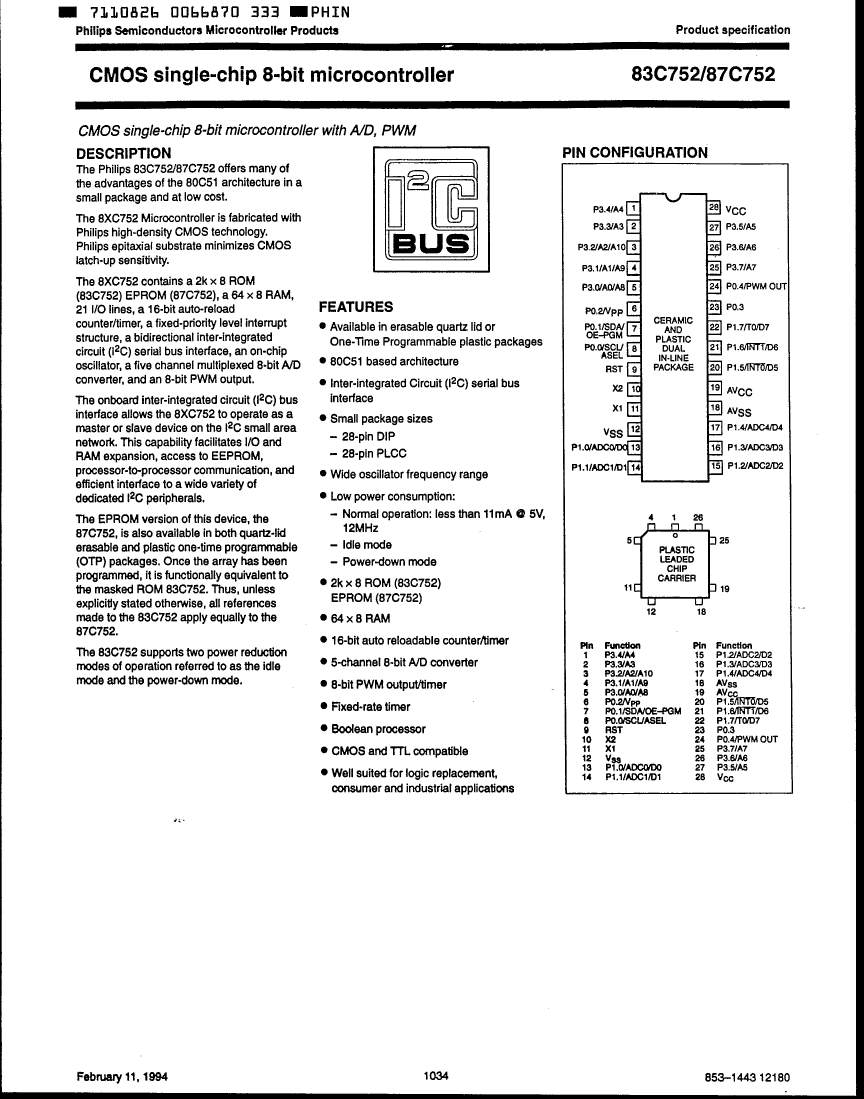

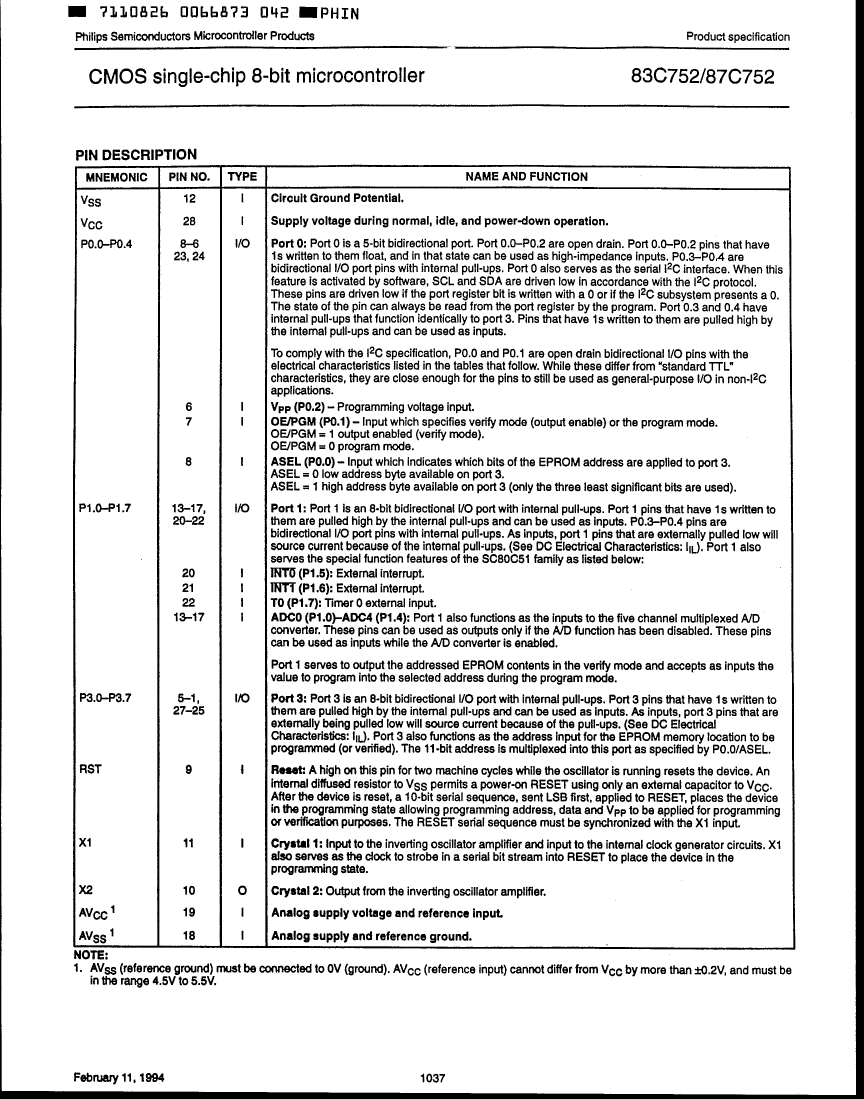

Preview

Download Datasheet

View All

S87C752-6F28 Related Products

	S87C752-6F28	S83C752-6F28	S83C752-4A28	S87C752-1F28	S83C752-2N28	S87C752-2F28	S87C752-4F28	S87C752-5F28
Description	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP28,	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, CDIP28,	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, PQCC28,	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP28,	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, PDIP28,	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP28,	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP28,	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	QCCJ, LDCC28,.5SQ	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
bit size	8	8	8	8	8	8	8	8
CPU series	8051	8051	8051	8051	8051	8051	8051	8051
JESD-30 code	R-XDIP-T28	R-XDIP-T28	S-PQCC-J28	R-XDIP-T28	R-PDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	28	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	85 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-40 °C	-40 °C	-	-40 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	QCCJ	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	LDCC28,.5SQ	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	64	64	64	64	64	64	64	64
rom(word)	2048	2048	2048	2048	2048	2048	2048	2048
ROM programmability	UVPROM	MROM	MROM	UVPROM	MROM	UVPROM	UVPROM	UVPROM
speed	12 MHz	12 MHz	16 MHz	12 MHz	12 MHz	12 MHz	16 MHz	16 MHz
Maximum slew rate	20 mA	20 mA	24 mA	20 mA	20 mA	20 mA	24 mA	24 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	-	-
Maker	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
