MCM69L736AZP10.5R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MCM69L736AZP10.5R

Preview

MCM69L736AZP10.5R: Description128KX36 CACHE SRAM, 10.5ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119; Categorystorage storage; File Size763KB，19 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

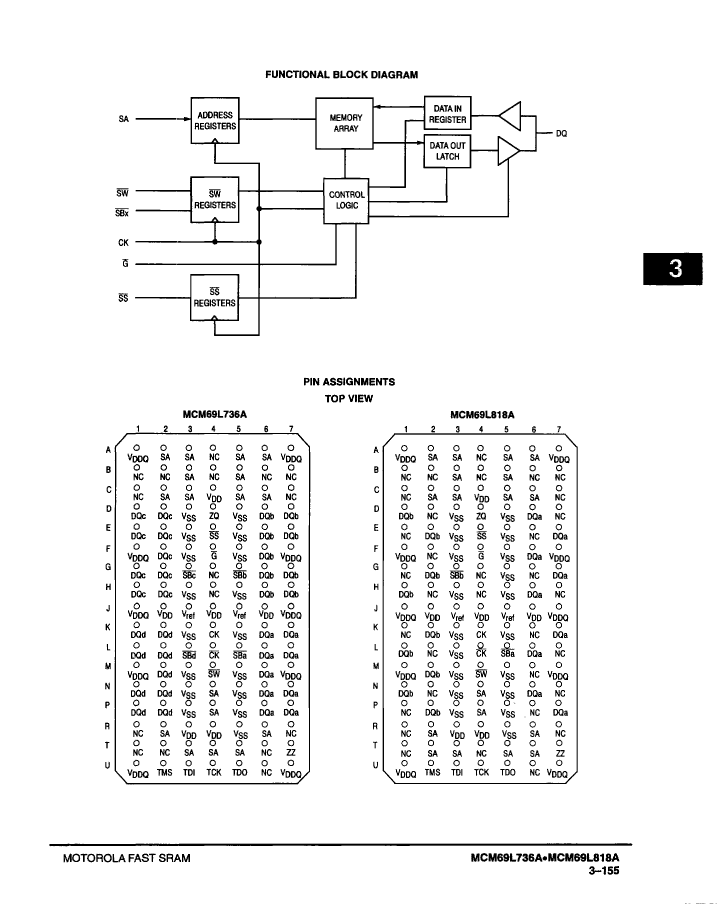

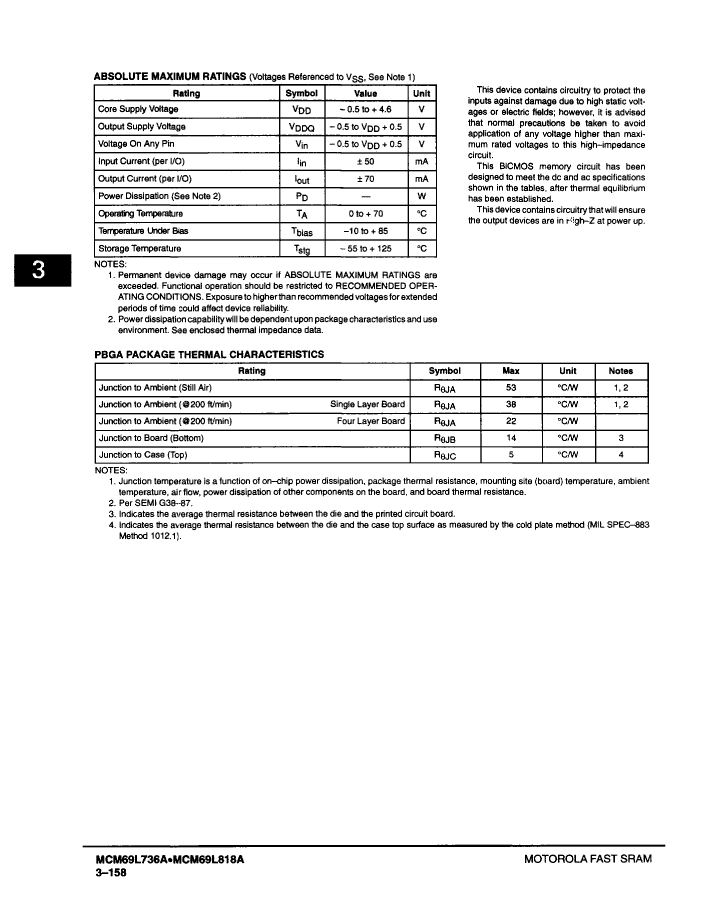

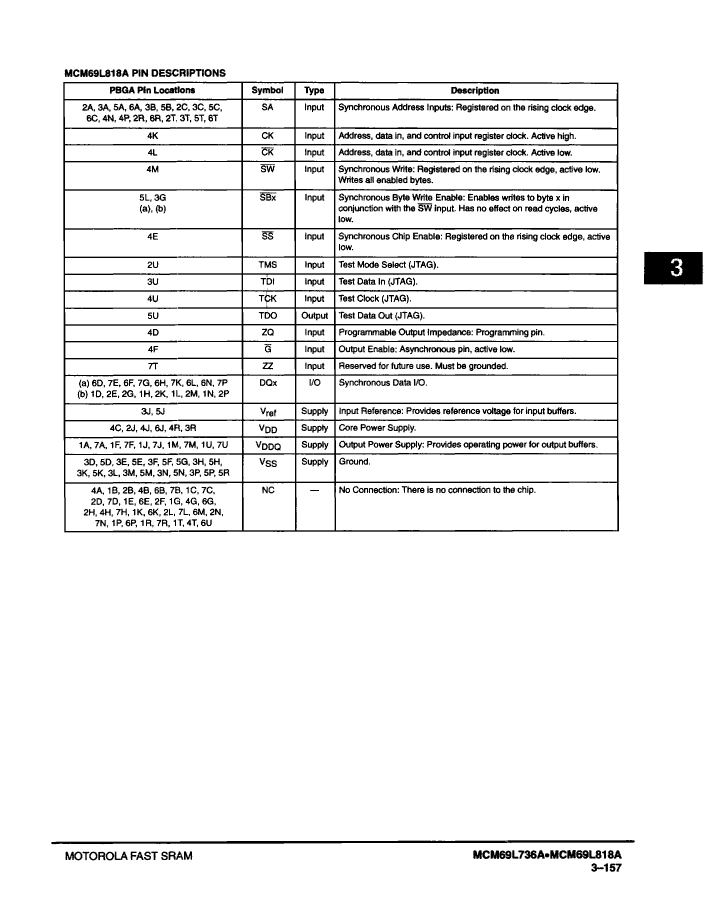

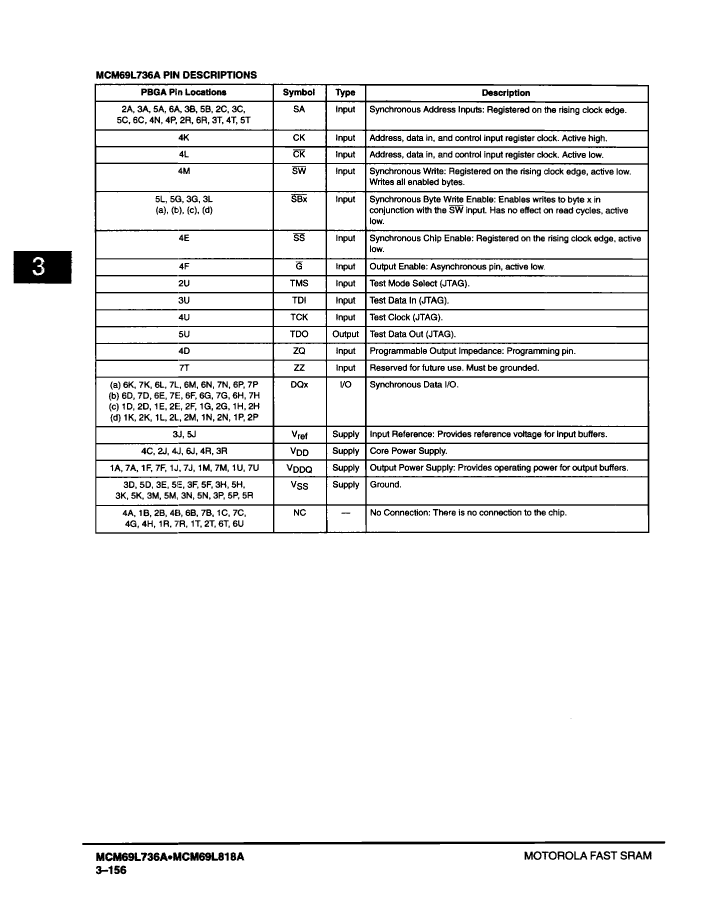

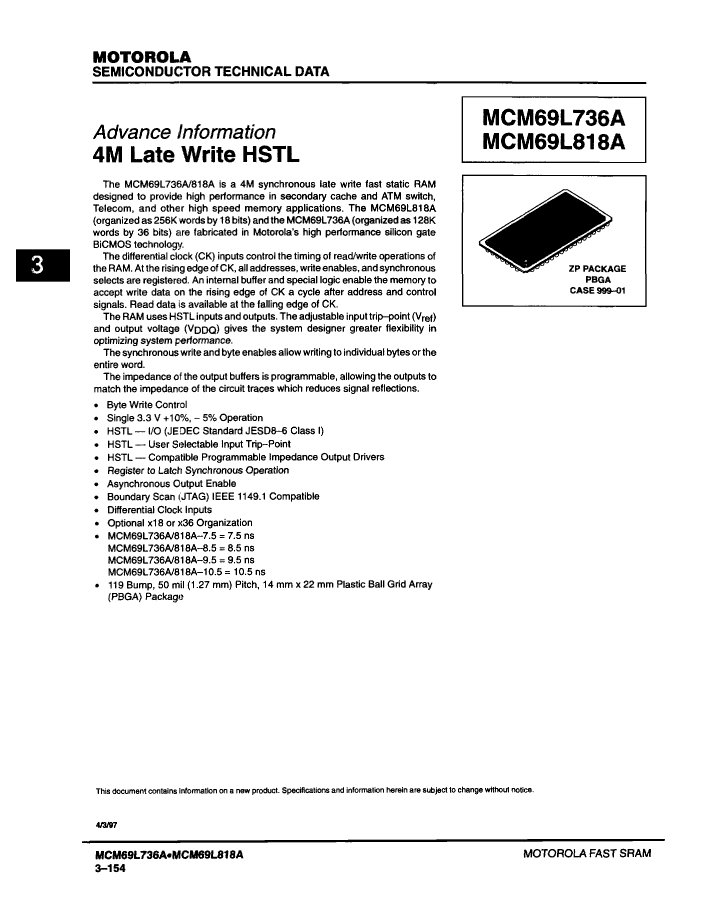

MCM69L736AZP10.5R Overview

128KX36 CACHE SRAM, 10.5ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119

MCM69L736AZP10.5R Parametric

Parameter Name	Attribute value
Parts packaging code	BGA
package instruction	BGA,
Contacts	119
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	10.5 ns
JESD-30 code	R-PBGA-B119
length	22 mm
memory density	4718592 bit
Memory IC Type	CACHE SRAM
memory width	36
Number of functions	1
Number of ports	1
Number of terminals	119
word count	131072 words
character code	128000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX36
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.4 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3.15 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
width	14 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MCM69L736AZP10.5R Related Products

	MCM69L736AZP10.5R	MCM69L736AZP7.5R	MCM69L736AZP7.5	MCM69L736AZP10.5	MCM69L818AZP10.5R
Description	128KX36 CACHE SRAM, 10.5ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119	128KX36 CACHE SRAM, 7.5ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119	128KX36 CACHE SRAM, 7.5ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119	128KX36 CACHE SRAM, 10.5ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119	256KX18 CACHE SRAM, 10.5ns, PBGA119, 14 X 22 MM, 1.27 MM PITCH, PLASTIC, BGA-119
Parts packaging code	BGA	BGA	BGA	BGA	BGA
package instruction	BGA,	BGA,	BGA,	BGA,	BGA,
Contacts	119	119	119	119	119
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Base Number Matches	1	1	1	1	1
Maximum access time	10.5 ns	-	7.5 ns	10.5 ns	-
JESD-30 code	R-PBGA-B119	-	R-PBGA-B119	R-PBGA-B119	-
length	22 mm	-	22 mm	22 mm	-
memory density	4718592 bit	-	4718592 bit	4718592 bit	-
Memory IC Type	CACHE SRAM	-	CACHE SRAM	CACHE SRAM	-
memory width	36	-	36	36	-
Number of functions	1	-	1	1	-
Number of ports	1	-	1	1	-
Number of terminals	119	-	119	119	-
word count	131072 words	-	131072 words	131072 words	-
character code	128000	-	128000	128000	-
Operating mode	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS	-
Maximum operating temperature	70 °C	-	70 °C	70 °C	-
organize	128KX36	-	128KX36	128KX36	-
Output characteristics	3-STATE	-	3-STATE	3-STATE	-
Exportable	YES	-	YES	YES	-
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	BGA	-	BGA	BGA	-
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-
Package form	GRID ARRAY	-	GRID ARRAY	GRID ARRAY	-
Parallel/Serial	PARALLEL	-	PARALLEL	PARALLEL	-
Certification status	Not Qualified	-	Not Qualified	Not Qualified	-
Maximum seat height	2.4 mm	-	2.4 mm	2.4 mm	-
Maximum supply voltage (Vsup)	3.6 V	-	3.6 V	3.6 V	-
Minimum supply voltage (Vsup)	3.15 V	-	3.15 V	3.15 V	-
Nominal supply voltage (Vsup)	3.3 V	-	3.3 V	3.3 V	-
surface mount	YES	-	YES	YES	-
technology	BICMOS	-	BICMOS	BICMOS	-
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-
Terminal form	BALL	-	BALL	BALL	-
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm	-
Terminal location	BOTTOM	-	BOTTOM	BOTTOM	-
width	14 mm	-	14 mm	14 mm	-
