UPC2792TB datasheet, PDF - EEWORLD Datasheet

UPC2792TB: DescriptionWide Band Low Power Amplifier, 1200MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size132KB，1 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPC2792TB Overview

Wide Band Low Power Amplifier, 1200MHz Max,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	17 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	1200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Base Number Matches	1

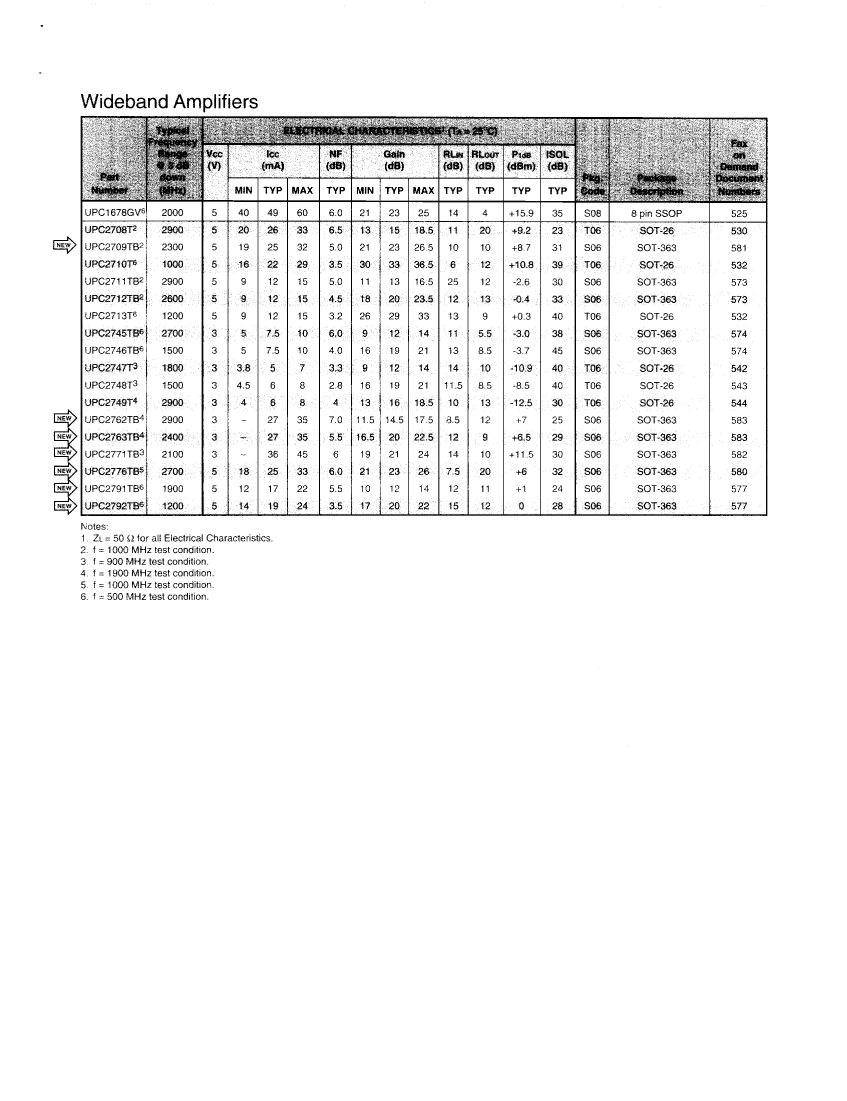

	UPC2792TB	UPC2791TB	UPC2771TB	UPC2747T	UPC2749T	UPC2748T
Description	Wide Band Low Power Amplifier, 1200MHz Max,	Wide Band Low Power Amplifier, 1900MHz Max,	Wide Band Low Power Amplifier, 2100MHz Max,	Wide Band Low Power Amplifier, 1800MHz Max, MINI MOLD, 6 PIN	Wide Band Low Power Amplifier, 2900MHz Max,	Wide Band Low Power Amplifier, 1500MHz Max, MINI MOLD, 6 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Gain	17 dB	10 dB	19 dB	9 dB	13 dB	16 dB
Maximum operating frequency	1200 MHz	1900 MHz	2100 MHz	1800 MHz	2900 MHz	1500 MHz
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
structure	COMPONENT	COMPONENT	-	COMPONENT	-	COMPONENT
Maximum operating temperature	85 °C	85 °C	-	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-	-40 °C
