Attenuators
DC - 18 GHz High Performance
DC-18 GHz Performance
5, 10, and 20 Watt Model selection
Rugged Stainless Steel Interface Construction
Any Male/Female combination available
Low VSWR - High Performance.
SMA Medium Power Types

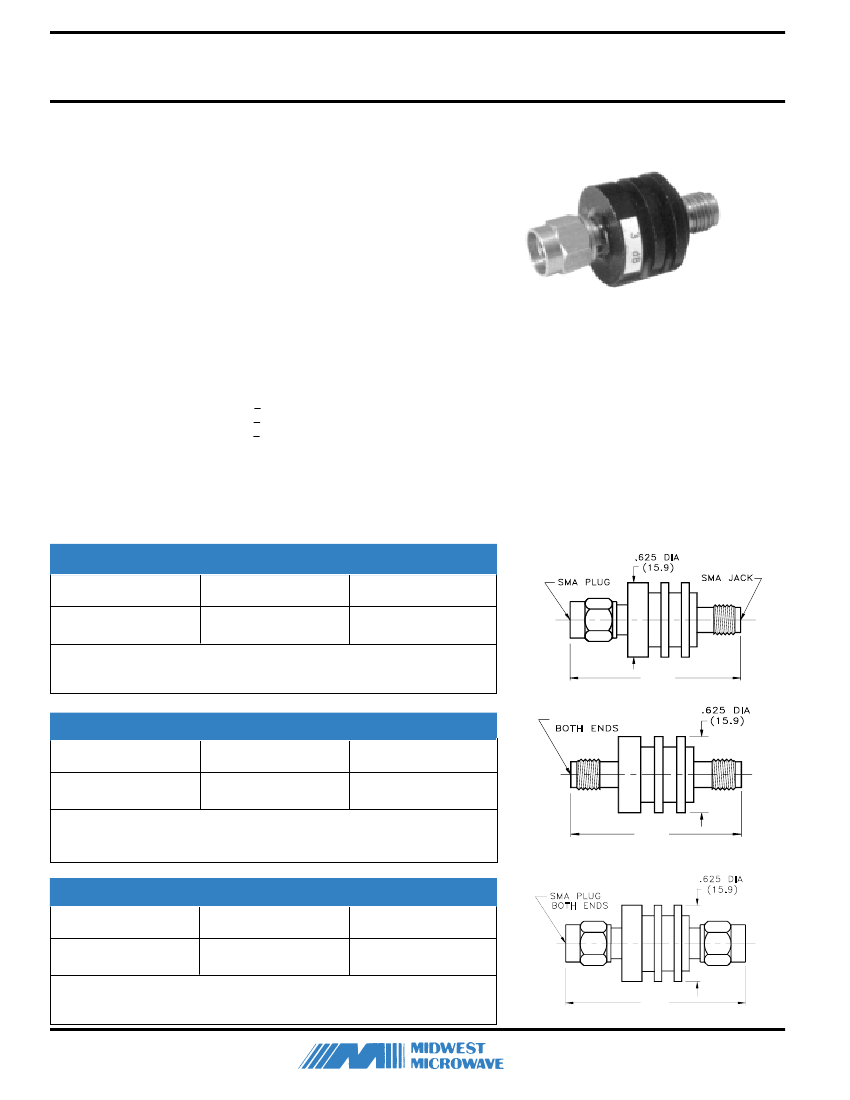

Midwest Microwave's SMA series of medium power fixed coaxial
attenuators provide temperature stable, ruggedly built, precision perfor-
mance in light weight reasonably sized packages. Attenuation values
range through 40 dB in 1 dB increments and are available with any
combination of female or male SMA connectors
5 Watts - DC - 18 GHz
Frequency:
DC - 18.0, DC-12.4, and DC-6.0 GHz units available
Attenuation Values:
1 thru 20 dB in 1 dB Increments
Attenuation Accuracy:
1- 6 dB + 0.3dB
VSWR:
GHz
7-10 dB + 0.5 dB
11-20 dB + 0.7 dB
1.25 max. @ DC - 6.0 GHz, 1.30 max. @ 6 - 12.4 GHz, and 1.40 max. @ 12.4 - 18.0
Power:
5 Watts Average @ +40C derated linearly to 0.5 Watts @ +125C
Peak Power:
200 Watts
Operating Temperature Range:
-54C to +125C
Finish:
Black Anodized Aluminum and Stainless Steel Connectors
DC - 18.0 GHz
Male/Female
ATT-0473-XX-SMA-07
473 Series
Female/Female
ATT-473F-XX-SMA-07
Model Numbers
Male/Male
ATT-473M-XX-SMA-07
XX = Attenuation Value: Select 01-20dB in 1dB increments
5 WATTS
DC - 12.4 GHz
Male/Female
ATT-0474-XX-SMA-07
1.20
474 Series
Female/Female
ATT-474F-XX-SMA-07
Model Numbers
Male/Male
ATT-474M-XX-SMA-07
SMA JACK
XX = Attenuation Value: Select 01-20dB in 1dB increments
1.07
5 WATTS
DC - 6.0 GHz
Male/Female
ATT-0475-XX-SMA-07
475 Series
Female/Female
ATT-475F-XX-SMA-07
Model Numbers
Male/Male
ATT-475M-XX-SMA-07
XX = Attenuation Value: Select 01-20dB in 1dB increments
5 WATTS
1.33
20
