820-IF140.0M-C Overview

SAW Filter, 1 Function(s), 140MHz, ROHS COMPLIANT PACKAGE-4

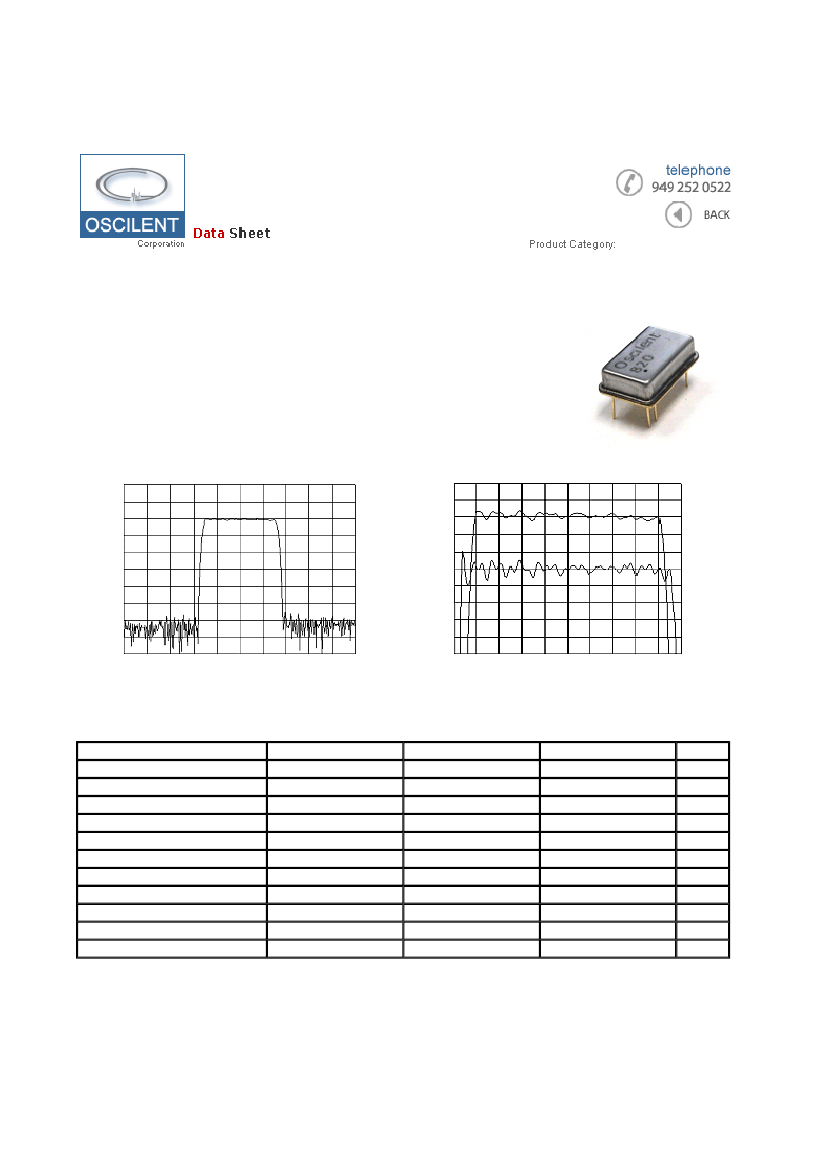

Oscilent Corporation IF SAW Filter | 820-IF140.0M-C
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF140.0M-C
.
TYPE :
20.2 x 12.6 Thru Hole
Base Station & Repeater
May 30 2003
140.0 MHz Bandpass Filter
25.0 MHz Bandwidth
PART NUMBER :
820-IF140.0M-C
.
Horizontal : 8.0 MHz/Div
Veritical : 10 dB/Div
Horizontal : 3.0 MHz/Div
Veritical : 1 dB/Div
Veritical : 20 ns/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
139.9
-
24.3
25.0
-
-
-
-
50
-
-
Typical
140.0
26.5
24.8
25.5
28.6
0.5
20
1.20
60
LN
25
Maximum
140.1
28.0
-
-
30.0
1.0
50
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
dB
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
