820-IF120.0M-C

Description
120.0 MHz IF SAW Filter
File Size261KB,2 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet View All

820-IF120.0M-C Overview

120.0 MHz IF SAW Filter

IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF120.0M-C
.
TYPE :
20.2 x 12.6mm
IF SAW Filter
Apr 18, 2007
120.0 MHz IF SAW Filter
PART NUMBER :
820-IF120.0M-C
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Bandwidth at -1.0 dB
Bandwidth at -3.0 dB
Bandwidth at -35.0 dB
Bandwidth at -40.0 dB
Amplitude Ripple
Ultimate Rejection
Group Delay Variation
Absolute Delay at Fo
Temperature Coefficient
Minimum
119.94
-
-
-
-
20.25
-
-
-
50
-
-
-
Typical
120.0
22.2
50
50
19.95
20.35
21.70
21.80
0.75
55
50
2.2
-72
Maximum
120.06
24.0
-
-
-
-
-
22.0
1.0
-
100
-
-
Units
MHz
dB
ohm
ohm
MHz
MHz
MHz
MHz
dBp-p
dB
nsec
µsec
ppm/°C

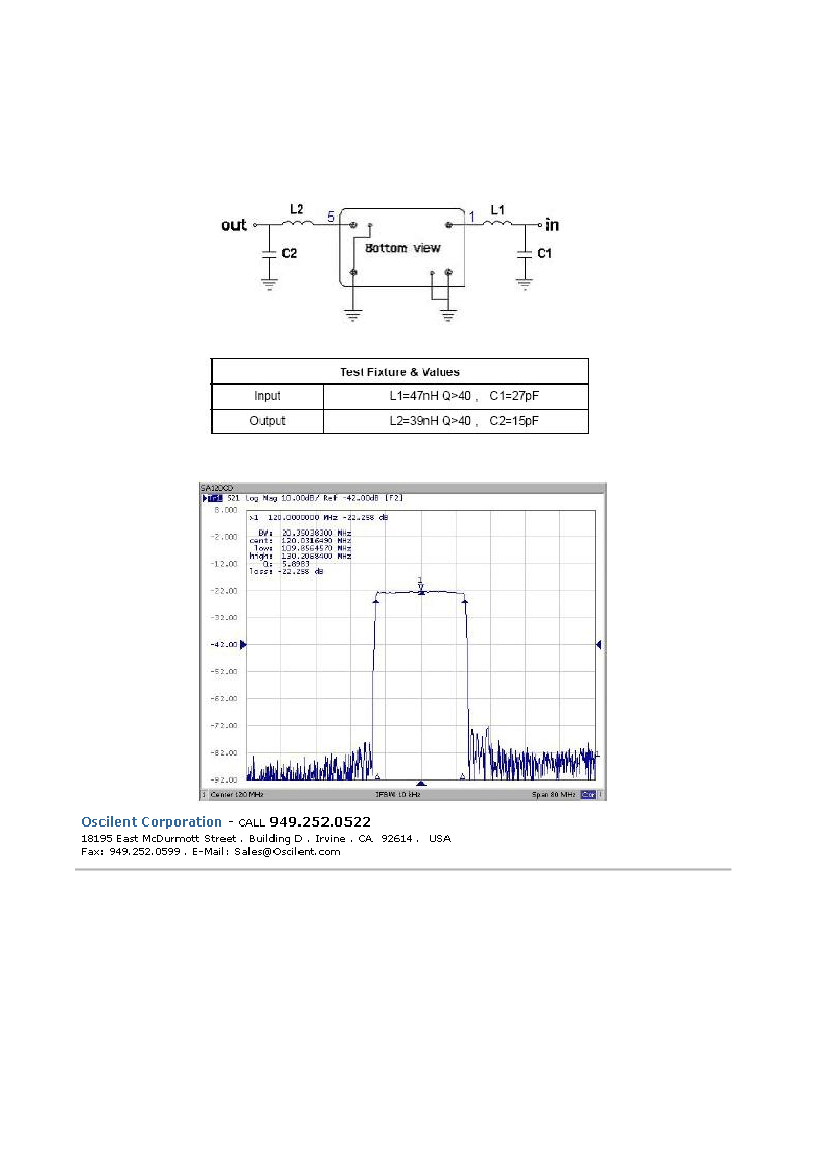

*With Matching Network (Reference Testing Environment Circuit as shown) Modify Impedance Values as necessary.
.
