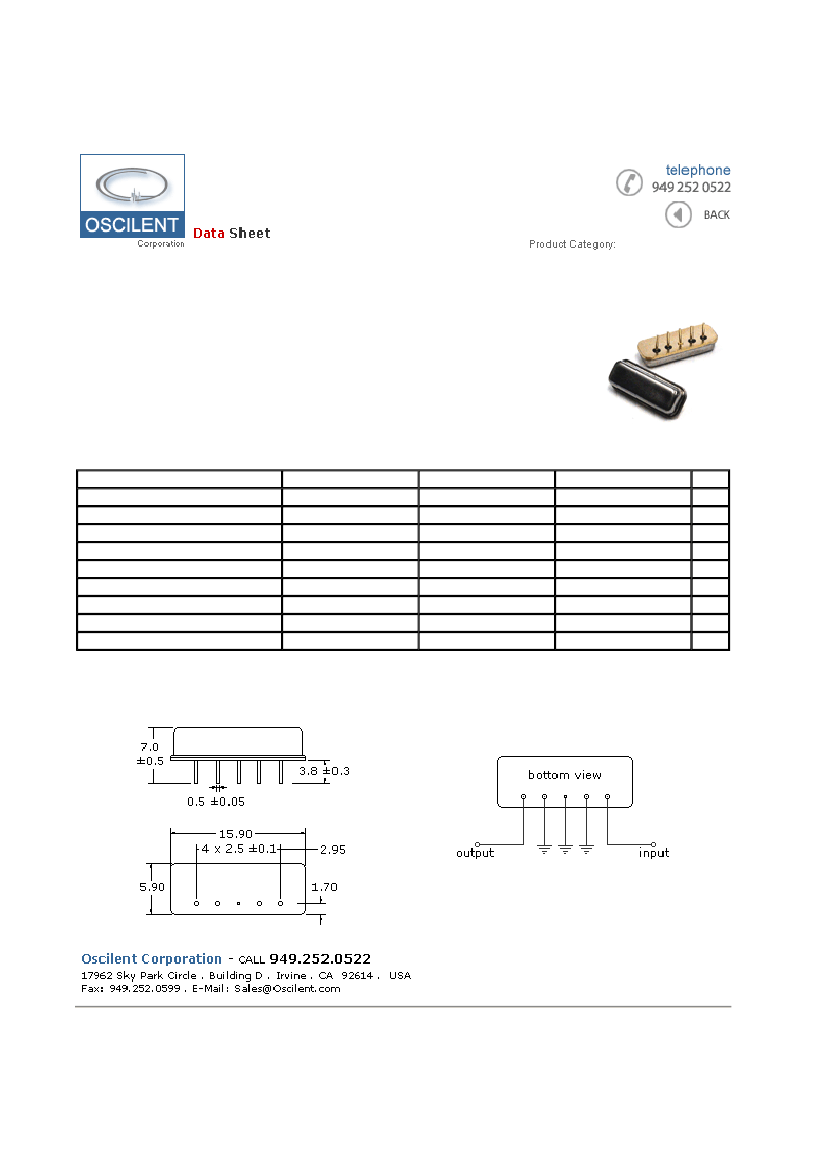

Oscilent Corporation IF SAW Filter | 815-IF43.75M-A

Page 1 of 1

IF SAW Filter

Part Number

Package

Application

Last Modified

815-IF43.75M-A

TYPE :

15.9 x 5.9 Thru Hole

Digital Cable TV

May 22 2003

43.75 MHz Bandpass Filter

6.0 MHz Bandwidth

PART NUMBER :

815-IF43.75M-A

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

3 dB Bandwidth

35 dB Bandwidth

Lower Sidelobe (35.0 ~ 39.90 MHz)

Upper Sidelobe (47.85 ~ 50.0 MHz)

Upper Sidelobe (50.0 ~ 55.0 MHz)

Passband Ripple

Ambient Temperature

Minimum

5.8

Typical

43.75

16.0

6.0

7.8

0.6

Maximum

17.0

8.0

1.0

Units

MHz

°C

* Custom SAW IF Filters available. Contact Oscilent for assistance.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

Source Impedance = 50 ohms

Load Impedance = 2 Kohms / 3pF

Part No.:

815-IF43.75M-A
