813-SL70.0M-05 Overview

Base Station & Repeater

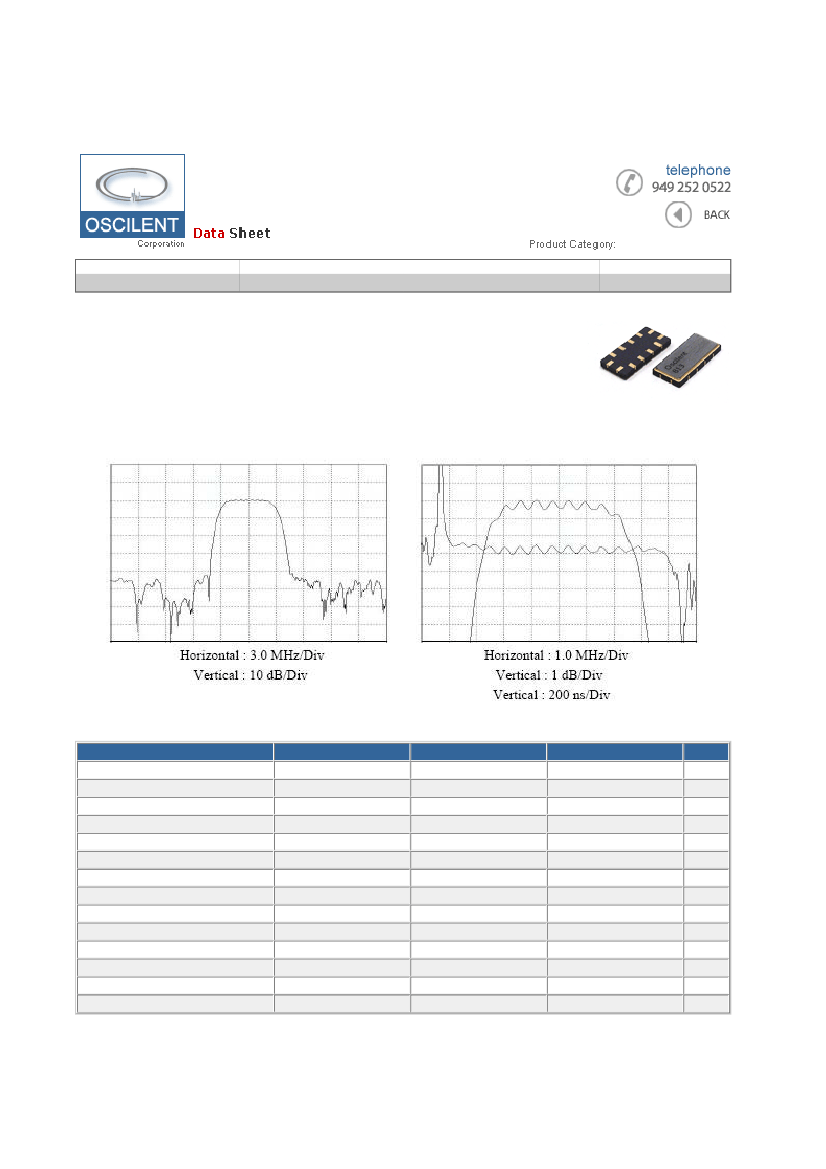

Oscilent Corporation IF SAW Filter | 813-SL70.0M-05
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
813-SL70.0M-05
.
TYPE :
13.3 x 6.5mm SMD
Base Station & Repeater
Apr 18, 2007
70.0 MHz Bandpass Filter
Low Loss
5.2 MHz Bandwidth
PART NUMBER :
813-SL70.0M-05
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
Source Impedance (single ended)*
Load Impedance (single ended)*
Bandwidth 1.0 dB
Bandwidth 3.0 dB
Bandwidth 35.0 dB
Passband Ripple
Group Delay Variation
Absolute Delay
Substrate Material
Ambient Temperature
Ultimate Rejection
Temperature Coefficient
Minimum
69.8
-
-
-
4.4
5.2
-
-
-
-
-
-
40
-
Typical
70.00
8.5
50
50
4.8
5.6
8.5
0.6
95
0.84
YZ-LN
25
42
-94
Maximum
70.2
9.2
-
-
-
-
9.0
1.0
150
-
-
-
-
-
Units
MHz
dB
ohm
ohm
MHz
MHz
MHz
dB
nsec
µsec
-
°C
dB
ppm/°C
.

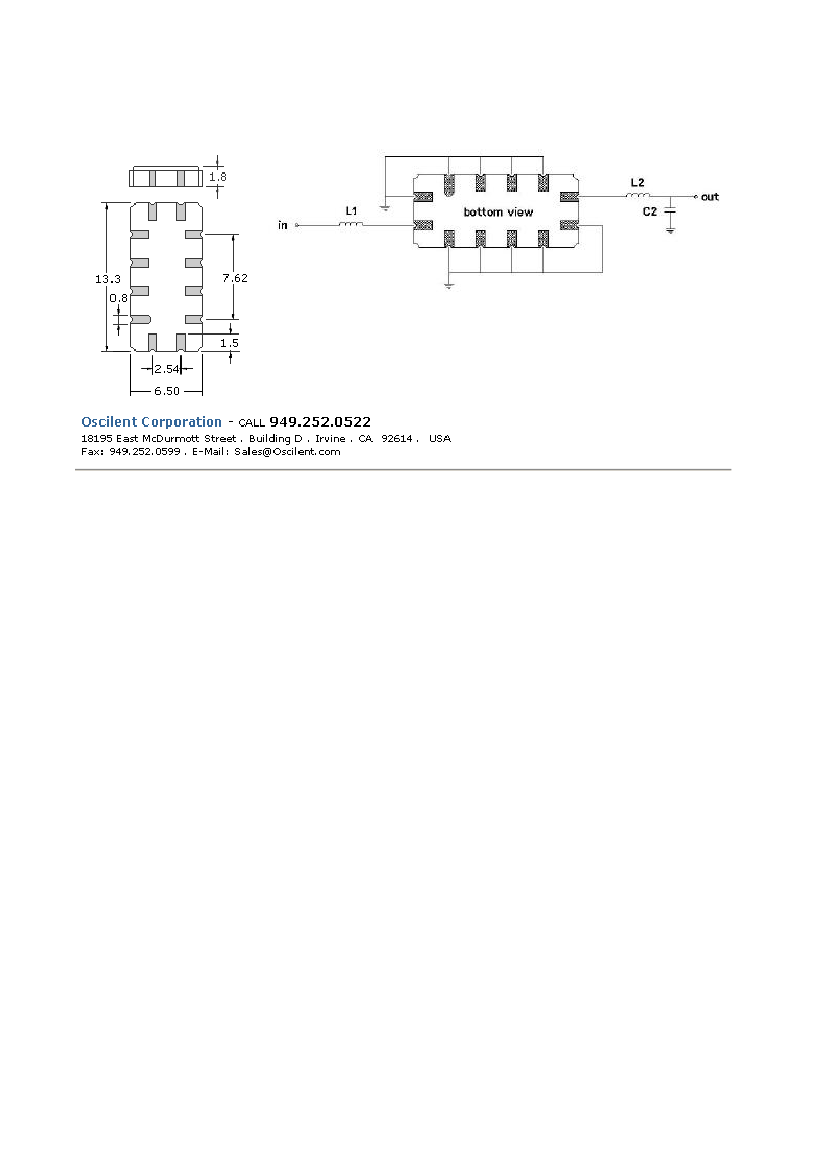

PACKAGE OUTLINE
(mm)
TEST FIXTURE
