Oscilent Corporation IF SAW Filter | 813-SL125.0M-30

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

813-SL125.0M-30

TYPE :

13.3 x 6.5 SMD

Low-Loss 125MHz

Jan 01, 2007

Low-Loss 125MHz IF SAW Filter

PART NUMBER :

813-SL125.0M-30

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Insertion Loss at Fo

Source Impedance (single ended)*

Load Impedance (single ended)*

Temperature Coefficient

Amplitude Ripple fo+/-13.5MHz

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Relative Attenuation:

Lower Sidelobe

Upper Sidelobe

Absolute Delay at Fo

Group Delay Variation fo +/-13.5 MHz

IN/OUT Return Loss at Fo

0.75

Minimum

29.0

29.5

Typical

125.0

12.0

-94

0.65

30.5

30.6

36.0

Maximum

14.0

1.0

33.5

Units

MHz

ohm

ppm/C

dBp-p

MHz

*With Matching Network (Ref. Testing Environment Circuit as Shown Below).

Those impedances could be modified with different impedance values and/or structures, if necessary

PACKAGE OUTLINE

(mm)

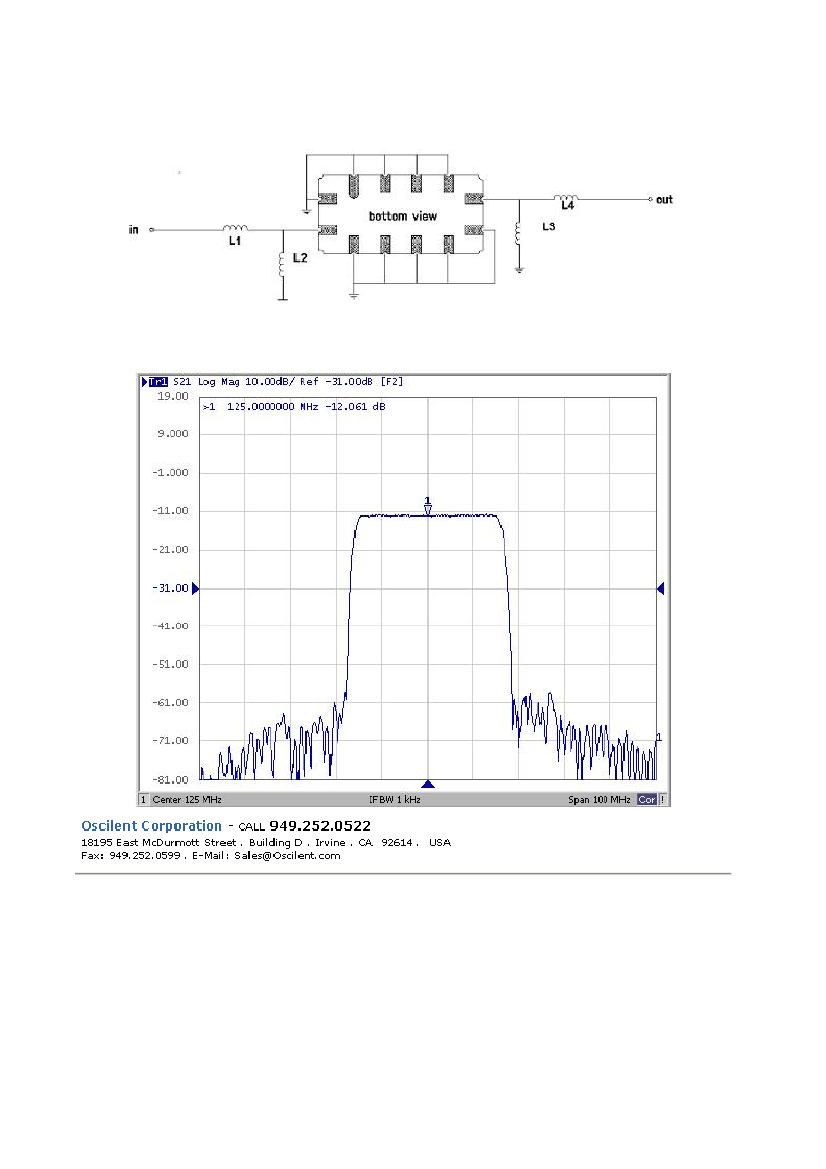

TEST CIRCUIT
