809-SL140.0M-18

Description
140.0 MHz Bandpass Filter Low Loss
File Size257KB,2 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet View All

809-SL140.0M-18 Overview

140.0 MHz Bandpass Filter Low Loss

Oscilent Corporation IF SAW Filter | 809-SL140.0M-18
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
809-SL140.0M-18
.
TYPE :
9.1 x 6.5 SMD
Base Station & Repeater
Apr 18, 2007
140.0 MHz Bandpass Filter
Low Loss
PART NUMBER :
809-SL140.0M-18
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss at Fo
Operating Temperature Range
Storage Temperature Range
Source Impedance (single ended)*
Load Impedance (single ended)*
Bandwidth at -1.0 dB
Bandwidth at -3.0 dB
Bandwidth at -35.0 dB
Relative Attenuation:
from 100 to 124 MHz
from 156 to 180 MHz
Amplitude Ripple
Group Delay Variation
Absolute Delay at Fo
Temperature Coefficient
In/Out Return Loss at Fo
40
40
-
-
-
-
-
46
44
0.6
55
0.88
-94
-
Minimum
-
-
-30
-40
-
-
17.2
18.0
-
Typical
140.0
8.5
-
-
50
50
18.2
19.2
22.8
-
-
-
1.0
100
-
-
-
dB
dB
dBp-p
nsec
µsec
ppm/°C
dB
Maximum
-
11.0
+80
+85
-
-
-
-
25.0
Units
MHz
dB
°C
°C
ohm
ohm
MHz
MHz
MHz
*With Matching Network (Reference Testing Environment Circuit as shown) Modifiy Impedance Values as necessary.
.

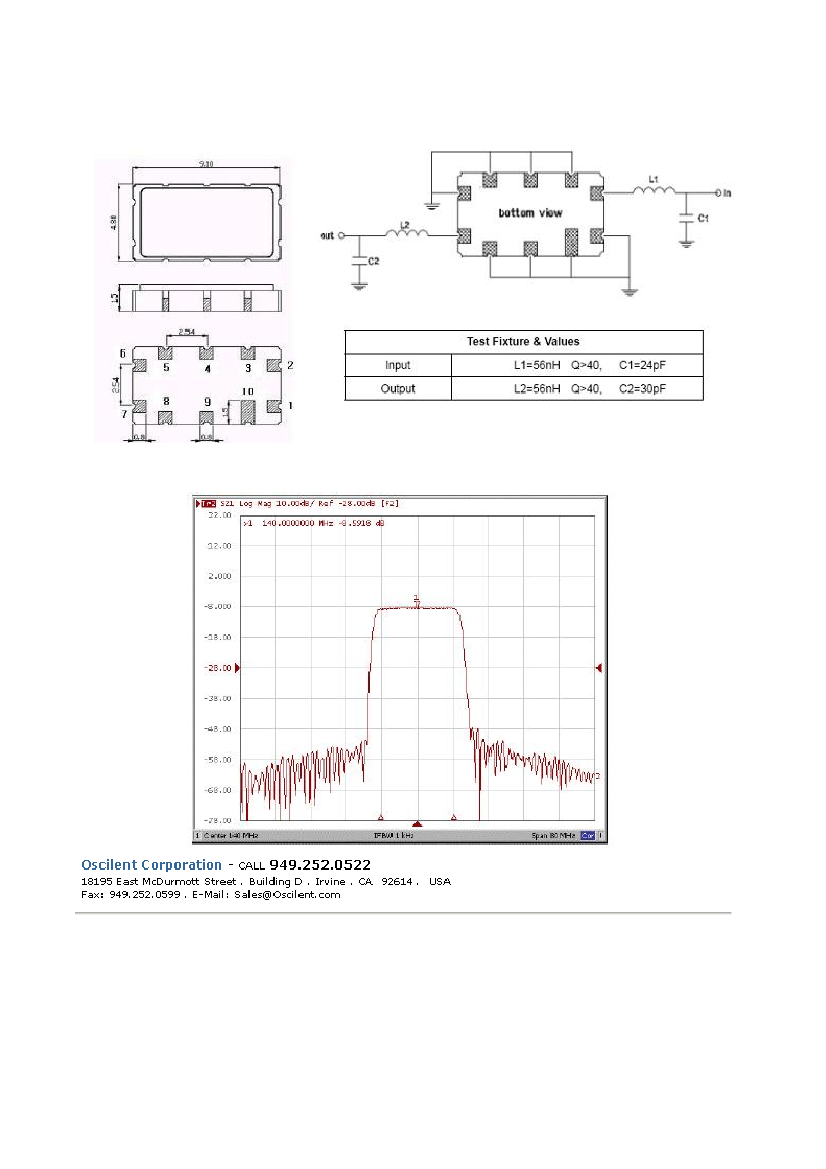

PACKAGE OUTLINE
(mm)
TEST FIXTURE
