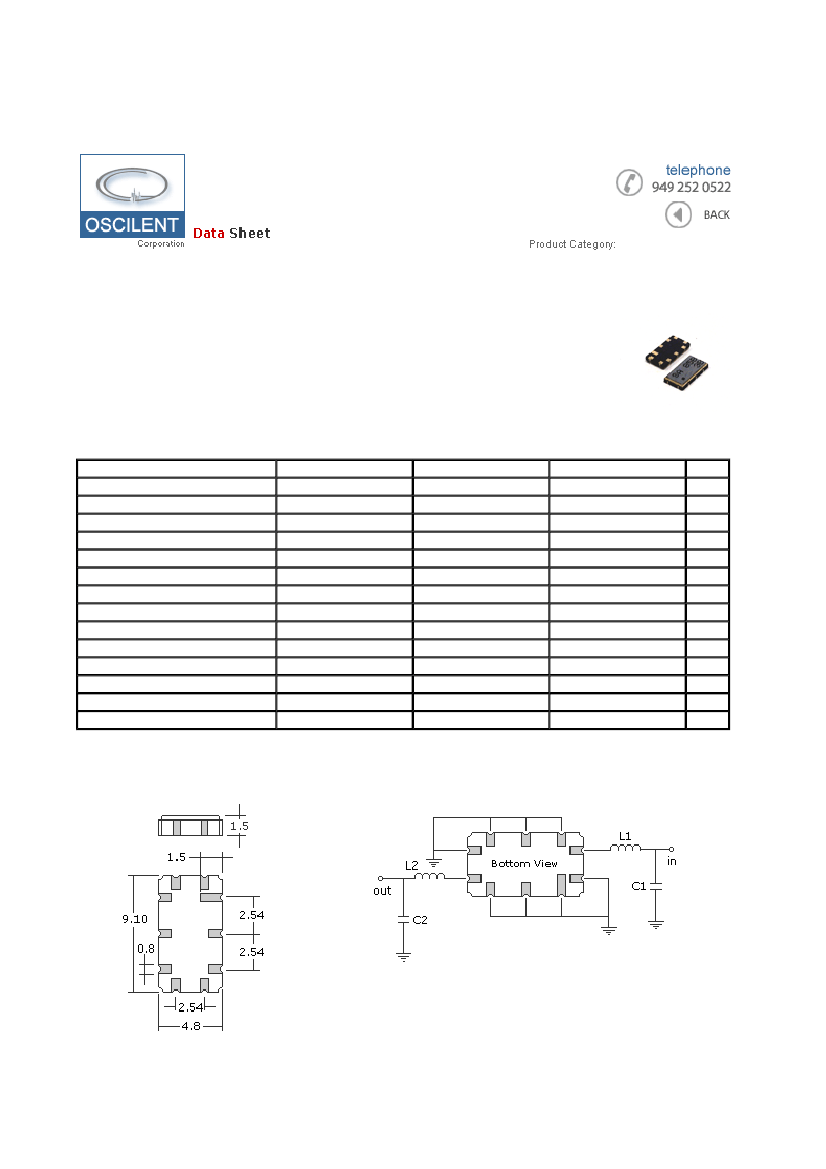

Oscilent Corporation IF SAW Filter | 809-IF85.38M-B

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

809-IF85.38M-B

.

TYPE :

9.1 x 4.8 SMD

Mobile Communication

May 22 2003

85.38 MHz Bandpass Filter

1.26 MHz Bandwidth

PART NUMBER :

809-IF85.38M-B

..

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

5dB Bandwidth

33dB Bandwidth

Attenuation at Fo - 0.9 MHz

Attenuation at Fo + 0.9 MHz

Attenuation at Fo ± 1.25 MHz

Attenuation at Fo ± 1.7 MHz

Input / Output Impedance

Passband Ripple

Ultimate Rejection

Substrate Material

Ambient Temperature

Operating Temperature

Minimum

-

1.26

-

35

-

35

-

-30

Typical

85.38

10.7

1.35

1.65

45

43

42

43

50

0.5

40

Quartz

25

-

Maximum

-

12.0

-

1.80

-

1.0

-

+80

Units

MHz

dB

MHz

dB

ohm

dB

-

°C

* All performance include Temperature Variations

** Custom SAW IF Filters available. Contact Oscilent for assistance.

.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

L1 = 330nH

C1 = 75pF

L2 = 390nH

C2 = 82pF

Source/Load Impedance = 50 ohms

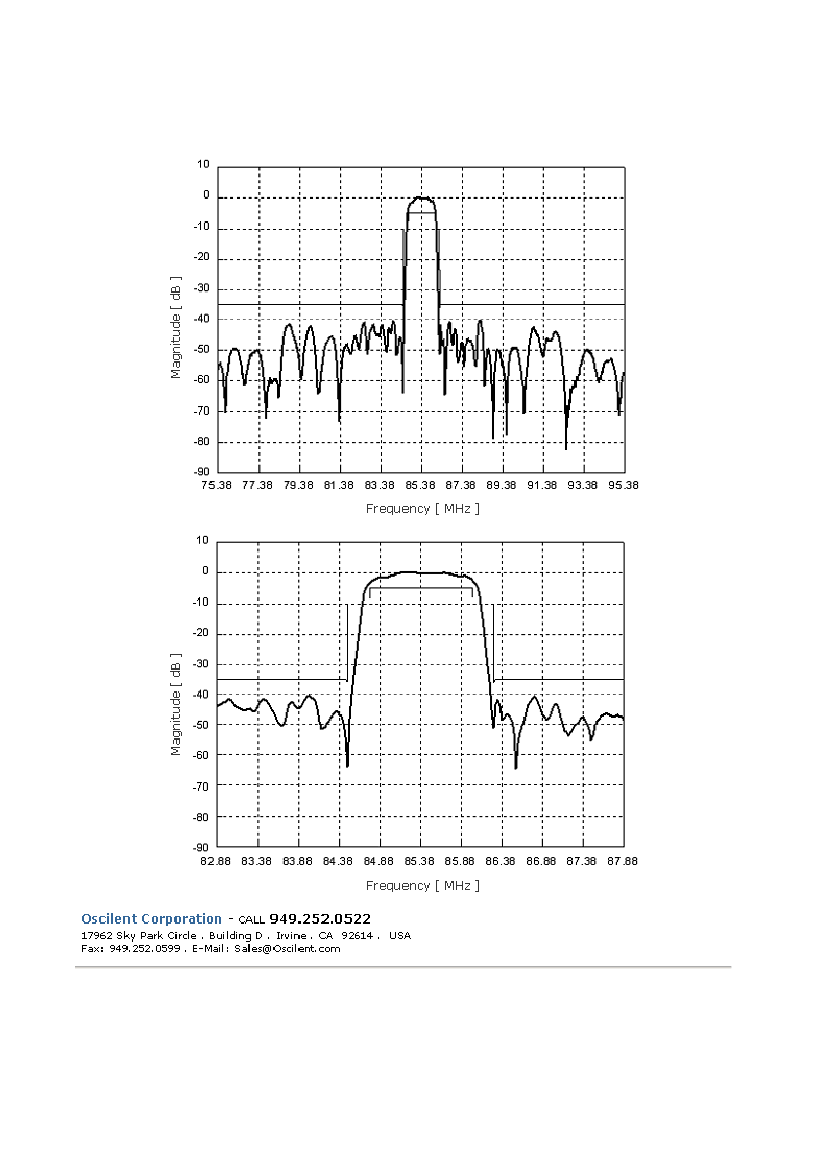

FREQUENCY RESPONSE

http://www.oscilent.com/spec_pages/if_sawfilter/if_809_if85_38b.htm

12/28/2005
