Oscilent Corporation IF SAW Filter | 809-IF85.38M-G
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
809-IF85.38M-G
TYPE :
9.1 x 4.8 SMD
Mobile Communication
Jan. 01, 2007
85.38 MHz IF SAW Filter
PART NUMBER :
809-IF85.38M-G
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss at Fo
Attenuation Fo +630 kHz
Attenuation Fo -630 kHz
Attenuation Fo +900 kHz
Attenuation Fo -900 kHz
Attenuation Fo +1.7 MHz
Attenuation Fo -1.7 Mhz
Source Impedance (Single Ended)*
Load Impedance (Single Ended)*
Substrate Material
Passband Ripple at Fo + 300 kHz
Minimum
-
-
-
-
33
33
35
35
-
-
-
-
Typical
85.38
9.6
3.8
3.8
41
44
43
42
50
50
Quartz
0.7
Maximum
-
12.5
5.0
5.0
-
-
-
-
-
-
-
1.2
Units
MHz
dB
dB
dB
dB
dB
dB
dB
ohm
ohm
-
dB
* With Matching Network (Ref. Testing Environment Circuit as shown below)
Those impedances could be modified with different impedance values and/or structures, if necessary.
** Custom SAW IF Filters available. Contact Oscilent for assistance.

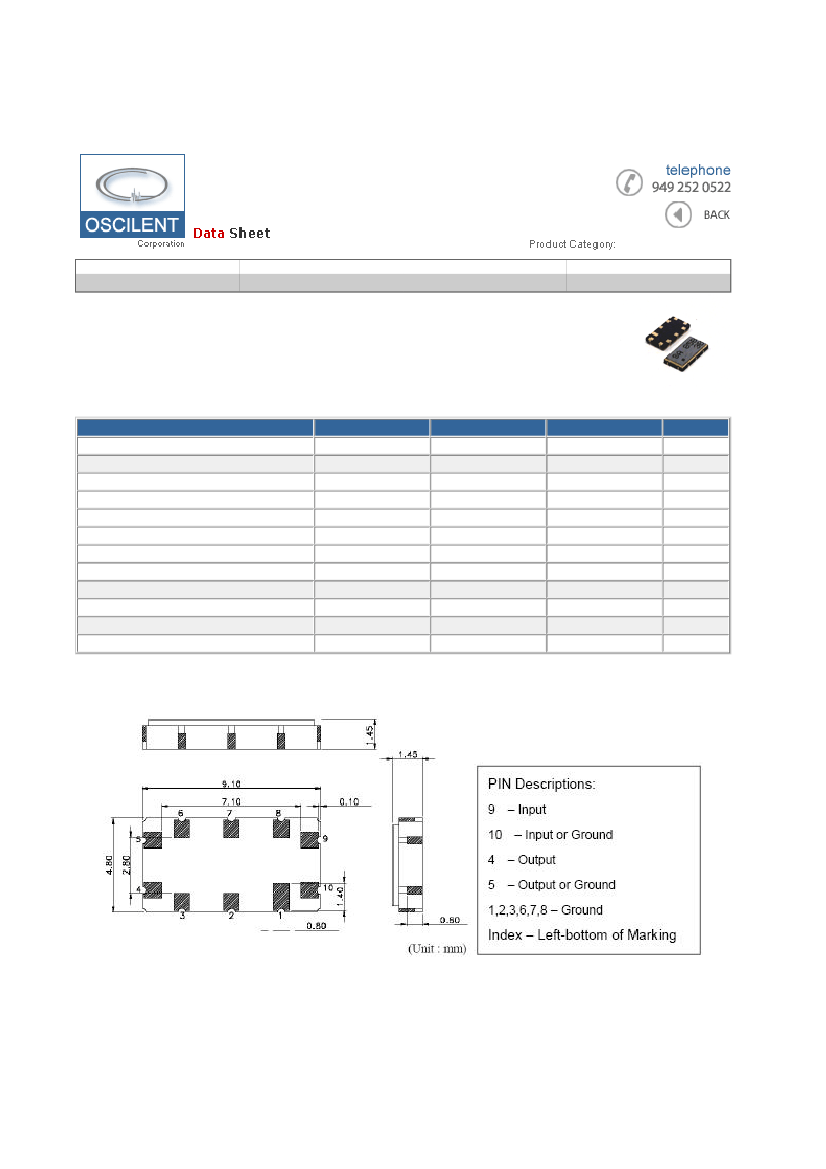

PACKAGE OUTLINE
(mm)

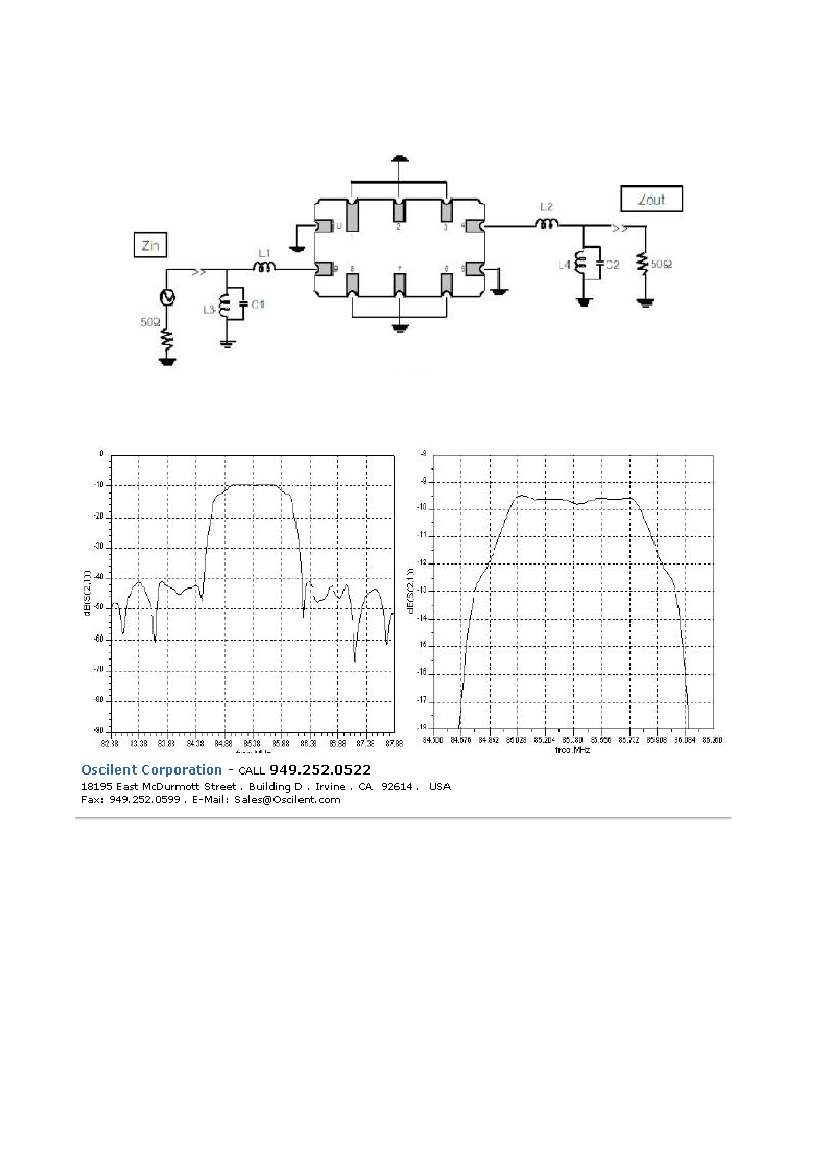

TEST CIRCUIT
