Oscilent Corporation IF SAW Filter | 807-SL300.0M-07
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
807-SL300.0M-07
TYPE :
7.0 x 5.0 SMD
Mobile Communication
Jan. 01, 2007
300.00 MHz Bandpass Filter
9.20 MHz Bandwidth
PART NUMBER :
807-SL300.0M-07
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss at Fo
Bandwidth at -1.0 dB
Bandwidth at -3.0 dB
Bandwidth at -40.0 dB
Relative Attenuation
Lower Sidelobe
Upper Sidelobe
Temperature Coefficient
Input / Output Impedance (Single Ended)*
Amplitude Ripple
Group Delay Variation
Ambient Temperature
Absolute Delay at Fo
40
40
-
-
-
-
-
-
45
45
-23
50
0.65
32
25
0.520
Minimum
-
-
7.0
8.0
-
Typical
300.00
14.0
7.40
9.20
15.40
-
-
-
-
-
1.5
100
-
1.0
dB
dB
ppm/°C
ohm
dBp-p
ns
°C
µsec
Maximum
-
-
-
-
17.0
Units
MHz
dB
MHz
MHz
MHz
* With Matching Network (Ref. Testing Environment Circuit as shown) Modification to Impedance Values are possible if
needed.
PACKAGE OUTLINE
(mm)

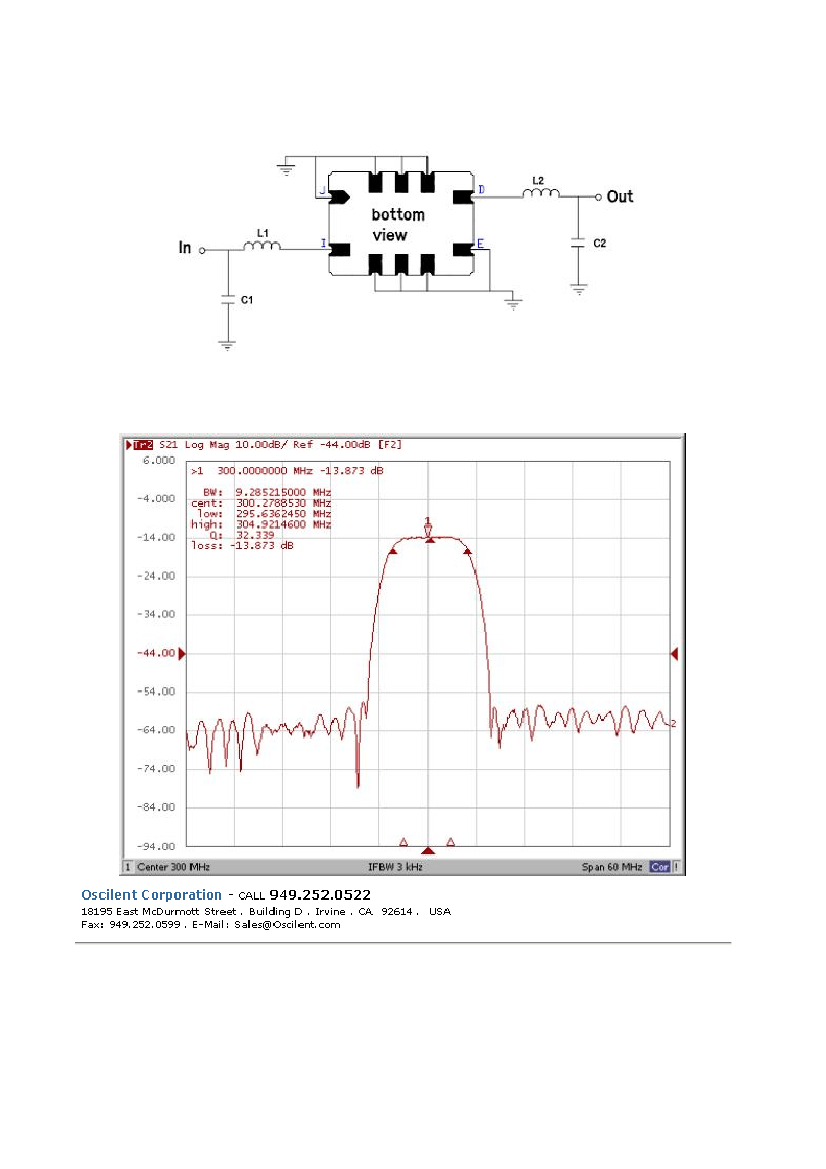

TEST FIXTURE
