74LVT32374G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74LVT32374G

74LVT32374G: DescriptionLow Voltage 32-Bit D-Type Flip-Flop with 3-STATE Outputs; Categorylogic logic; File Size77KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74LVT32374G Overview

Low Voltage 32-Bit D-Type Flip-Flop with 3-STATE Outputs

74LVT32374G Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	BGA
package instruction	LFBGA, BGA96,6X16,32
Contacts	96
Reach Compliance Code	unknow
series	LVT
JESD-30 code	R-PBGA-B96
length	13.5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Maximum Frequency@Nom-Su	160000000 Hz
MaximumI(ol)	0.064 A
Number of digits	8
Number of functions	4
Number of ports	2
Number of terminals	96
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	LFBGA
Encapsulate equivalent code	BGA96,6X16,32
Package shape	RECTANGULAR
Package form	GRID ARRAY, LOW PROFILE, FINE PITCH
power supply	3.3 V
Prop。Delay @ Nom-Su	4.5 ns
propagation delay (tpd)	5.2 ns
Certification status	Not Qualified
Maximum seat height	1.4 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
Trigger type	POSITIVE EDGE
width	5.5 mm

Preview

Download Datasheet

View All

74LVT32374 • 74LVTH32374 Low Voltage 32-Bit D-Type Flip-Flop with 3-STATE Outputs

April 2001

Revised June 2002

74LVT32374 • 74LVTH32374

Low Voltage 32-Bit D-Type Flip-Flop

with 3-STATE Outputs

General Description

The LVT32374 and LVTH32374 contain thirty-two non-

inverting D-type flip-flops with 3-STATE outputs and are

intended for bus oriented applications. The device is byte

controlled. A buffered clock (CP) and Output Enable (OE)

are common to each byte and can be shorted together for

full 32-bit operation.

The LVTH32374 data inputs include bushold, eliminating

the need for external pull-up resistors to hold unused

inputs.

These flip-flops are designed for low-voltage (3.3V) V

applications, but with the capability to provide a TTL inter-

face to a 5V environment. The LVT32374 and LVTH32374

are fabricated with an advanced BiCMOS technology to

achieve high speed operation similar to 5V ABT while

maintaining a low power dissipation.

Features

Input and output interface capability to systems at

5V V

Bushold data inputs eliminate the need for external

pull-up resistors to hold unused inputs (74LVTH32374)

Also available without bushold feature (74LVT32374)

Live insertion/extraction permitted

Power Up/Down high impedance provides glitch-free

bus loading

Outputs source/sink

−

32 mA/

64 mA

ESD performance:

Human-body model

2000V

Machine model

200V

Charged-device model

1000V

Packaged in plastic Fine-Pitch Ball Grid Array (FBGA)

Ordering Code:

Order Number

74LVT32374G

(Note 1)(Note 2)

74LVTH32374G

(Note 1)(Note 2)

Package

Number

BGA96A

(Preliminary)

BGA96A

Package Description

96-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide

Note 1:

Ordering code “G” indicates Trays.

Note 2:

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

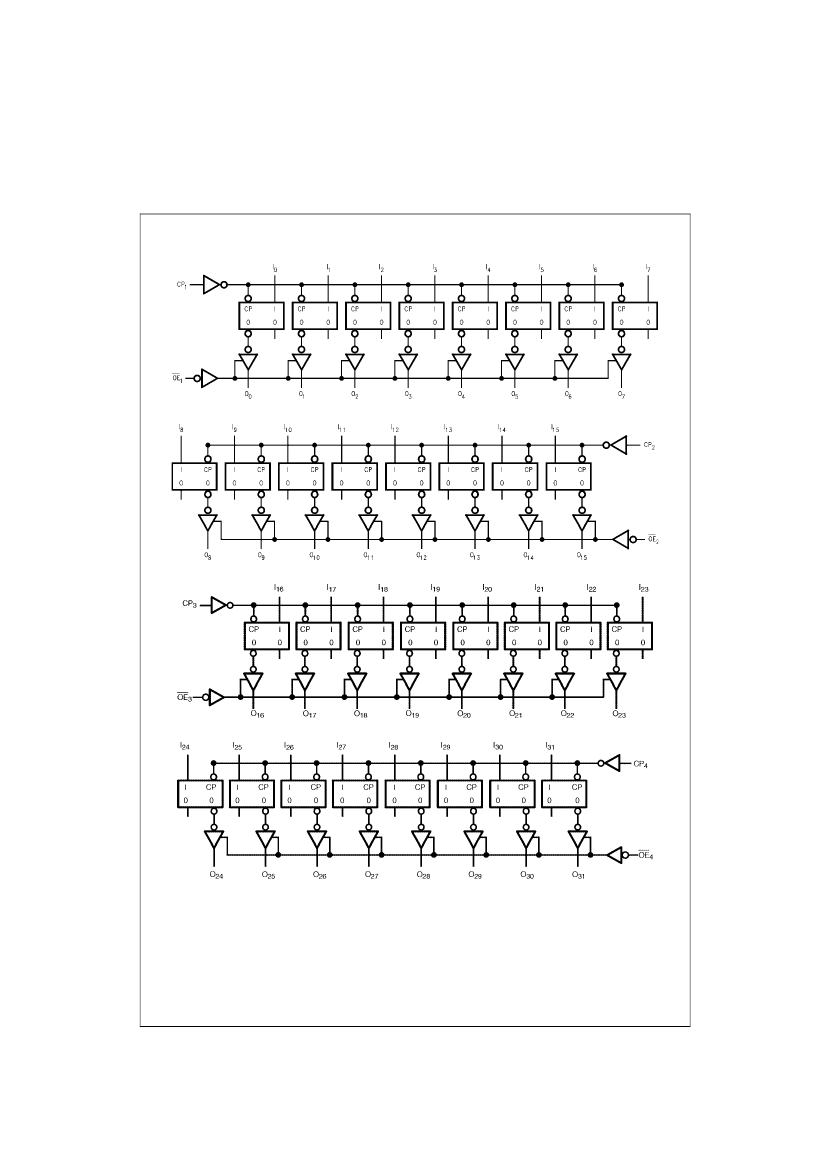

Logic Symbol

DS500452

www.fairchildsemi.com
