HM2P87PD81X1Z1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P87PD81X1Z1

HM2P87PD81X1Z1: DescriptionBoard Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P87PD81X1Z1 Overview

Board Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal

HM2P87PD81X1Z1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	10
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	220
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

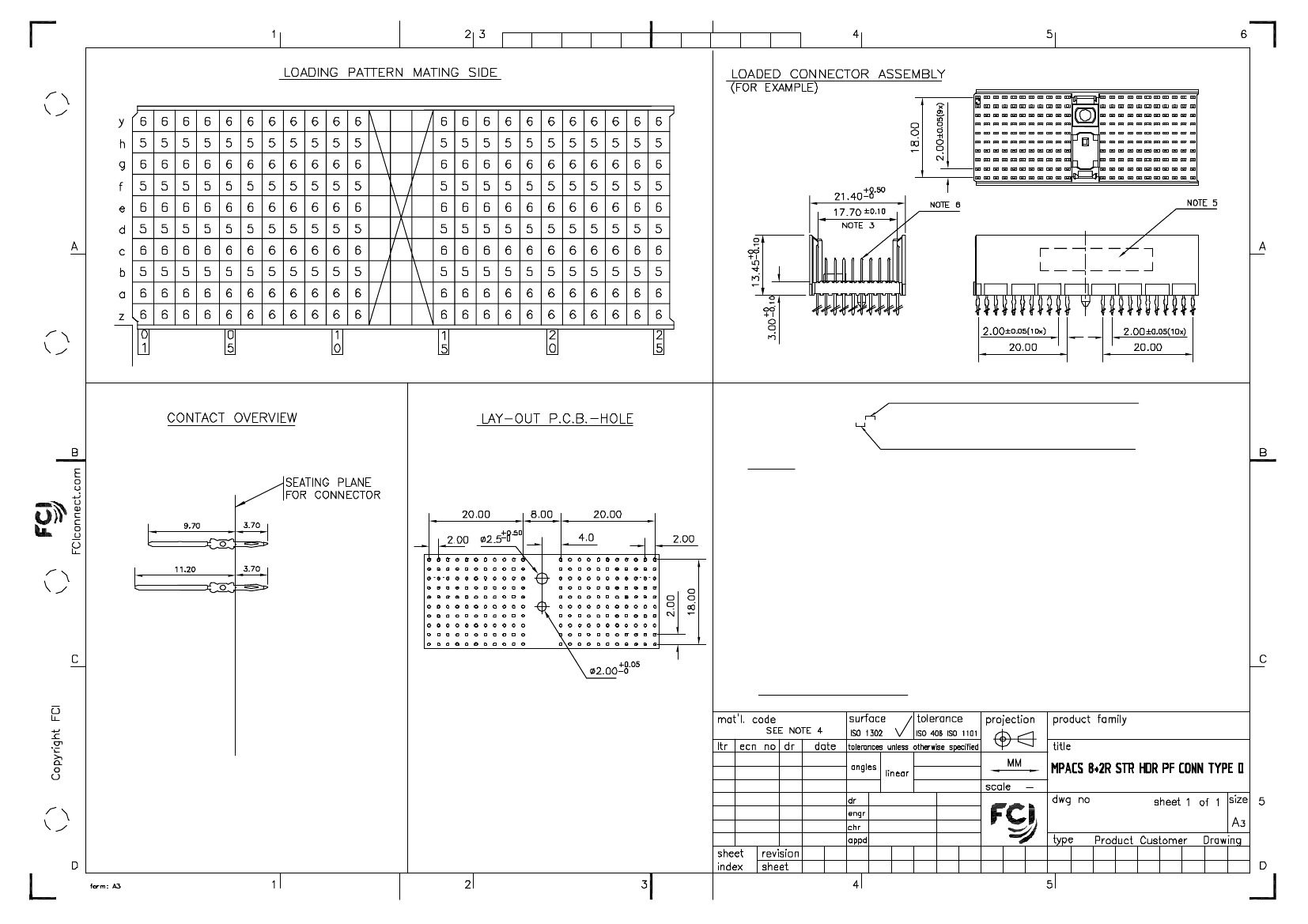

HM2P87PD81X1----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

PART NO: HM2P87PD81X1----

MILLIPACS

I05-0253

I06-0132

MINI

2005-11-30

2006-08-02

0°±1°

MINI K VANDANATH

BIJU K PAUL

2005-11-30

2006-08-02

.0±0.2

.00±0.1

BS, C ,203028,588

PDM: Rev:B

STATUS:

Released

Printed: Dec 04, 2007

HM2P87PD81X1Z1 Related Products

	HM2P87PD81X1Z1	HM2P87PD81X1E9LF	HM2P87PD81X1E9	HM2P87PD81X1N9LF	HM2P87PD81X1N9	HM2P87PD81X1Z1LF
Description	Board Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 220 Contact(s), 10 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD	MATTE TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e3	e0	e3	e0	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	10	10	10	10	10	10
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	220	220	220	220	220	220
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
