805-001-16M8-1PA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 805-001-16M8-1PA

805-001-16M8-1PA: Description1 CONTACT(S), ALUMINUM ALLOY, MALE, CIRCULAR CONNECTOR, PLUG; CategoryThe connector The connector; File Size207KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

805-001-16M8-1PA Overview

1 CONTACT(S), ALUMINUM ALLOY, MALE, CIRCULAR CONNECTOR, PLUG

805-001-16M8-1PA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compli
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Housing size	8
Total number of contacts	1

Preview

Download Datasheet

View All

805-002

-16

Shell Style

Plug Connector

with Ratcheting

Anti-Decoupling

Mechanism

CAGE Code 06324

Printed in U.S.A.

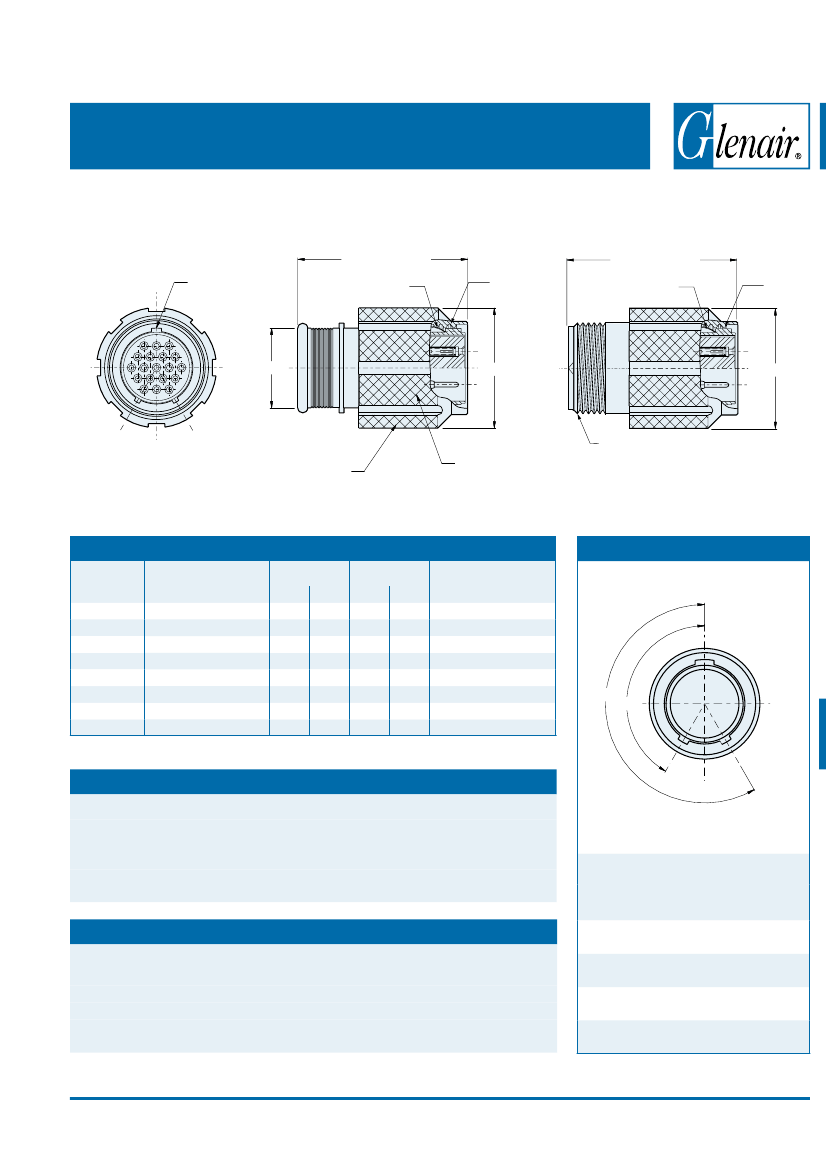

Series 805

Series 805 “Mighty Mouse”

Triple-Start

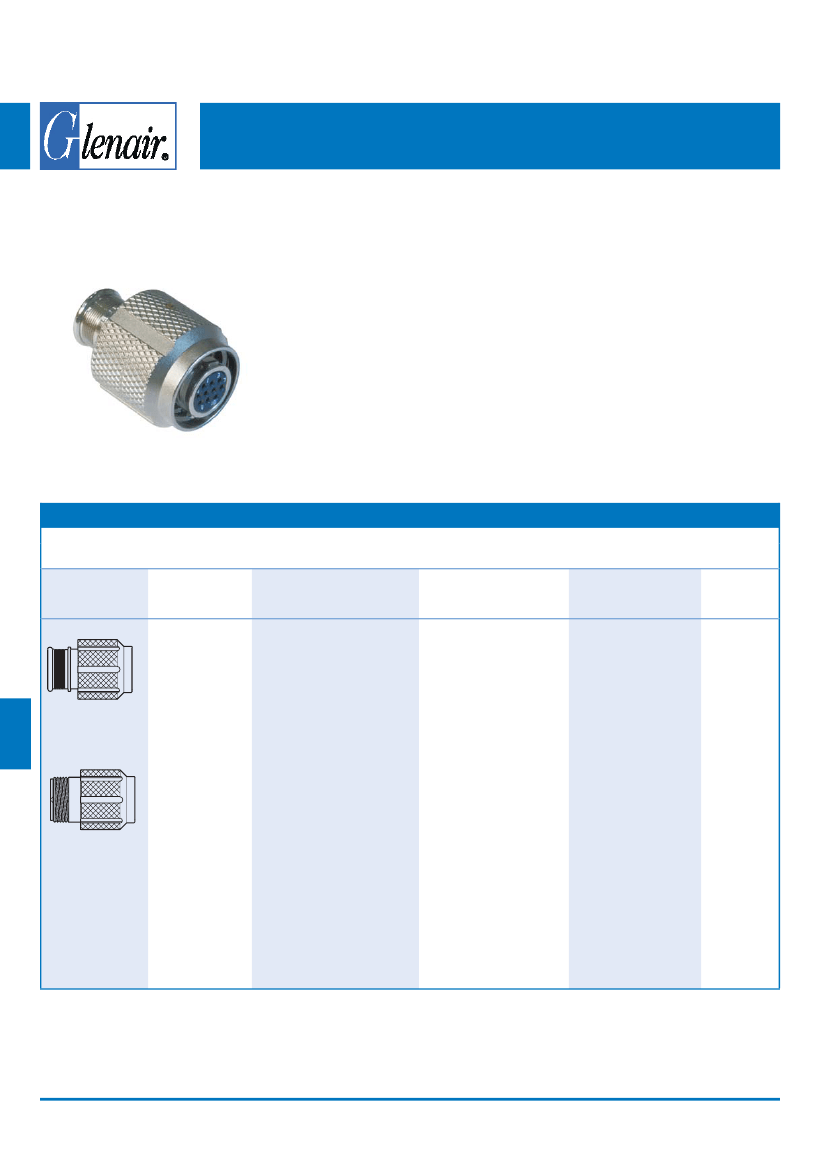

Series 805 Plug Connectors

Two Shell Styles:

Integral platform for

direct shield attachment using BAND-

termination system, or accessory

thread for attaching a strain relief.

EMI Ground Spring

provides low

shell-to-shell resistance. This nickel-

plated beryllium copper serpentine

spring enables the Series 805 to

meet greater than 60 dB shielding

effectiveness from 100 MHz. to 15 GHz.

Ratchet Mechanism for Secure

Coupling:

Series 805 connectors

feature a spring mechanism in the

coupling nut that locks into radial teeth

on the plug barrel. This feature allows

the Series 805 to stay mated even

when under high vibration, without the

need for safety wire or torque tools.

HOW TO ORDER

Sample Part Number

Shell Material / Finish

Aluminum / Black Anodize

8-4

Shell Size- Insert

Arrangement

1 #16 Contact

4 #23 Contacts

7 #23 Contacts

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

26 #23 Contacts

2 #12 Contacts

15-37

37 #23 Contacts

18-55

55 #23 Contacts

19-85

85 #23 Contacts

Size #23 contacts are

supplied with connectors.

Other contact sizes are

ordered separately.

Contact Type

Standard #23 contacts

accept #22 through

#28 AWG wire. Use the

following contact codes to

specify these contacts:

Shell Key

Position

Position A

(Normal)

Series

Aluminum / Electroless

Nickel

805-001

Plug with Banding

Platform

Aluminum / Cadmium with

Olive Drab Chromate

Aluminum / Zinc-Nickel with

Olive Drab Chromate

8-1

8-4

8-7

9-1

9-10

10-13

11-4

11-19

12-26

15-2

Position B

Position C

Socket

Special contacts for

#26 to #30 AWG are

also available. Use the

following contact codes to

specify these contacts:

Position D

ZNU

805-002

Plug with

Accessory

Thread

Aluminum / Zinc-Nickel with

Black Chromate

Stainless Steel / Passivated

Socket

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

H-4

Rev. 05-APR-2007
