803-RF930.5M-A: Description930.5 MHz RF Low Loss SAW Filter; File Size172KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com

Download Datasheet View All

803-RF930.5M-A Overview

930.5 MHz RF Low Loss SAW Filter

Preview

Download Datasheet

View All

Oscilent Corporation RF SAW Filter | 803-RF930.5M-A

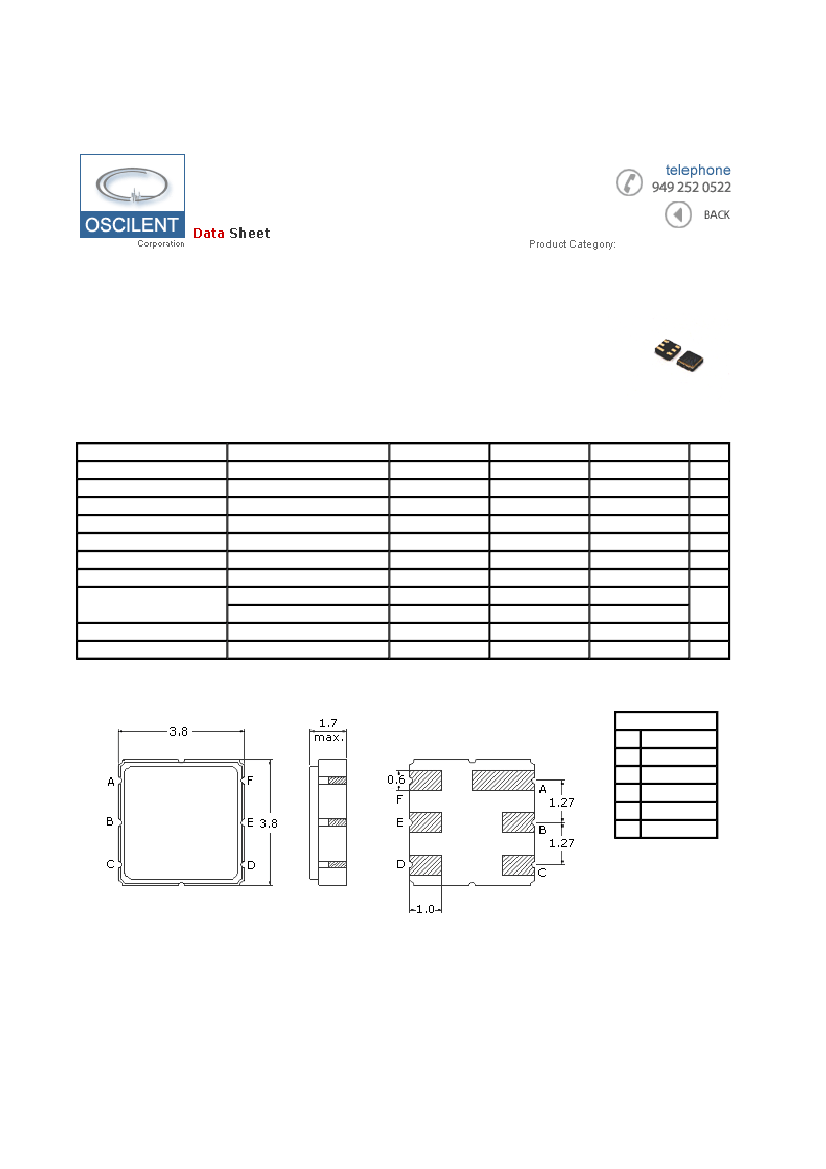

Page 1 of 2

RF SAW Filter

Part Number

Package

Application

Last Modified

803-RF930.5M-A

.

TYPE :

3.8 x 3.8 SMD

Wireless Communication

Sept. 03 2003

930.5 MHz RF Low Loss SAW Filter

PART NUMBER :

803-RF930.5M-A

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Insertion Loss

DC Voltage

Input Power

Operating Temperature

Storage Temperature

Ripple

Stopband Attenuation

VSWR

Teminating Impedance

Condition

-

928.5 ~ 932.5 MHz

-

928.5 ~ 932.5 MHz

Fo -200.0 ~ Fo -40.8 MHz

Fo +50.0 ~ Fo +200.0 MHz

928.5 ~ 932.5 MHz

-

Minimum

-

-30

-40

-

50.0

40.0

-

Typical

930.5

2.2

-

0.3

55.0

48.0

1.4

50

Maximum

-

3.0

5

15

+65

+85

1.0

-

2.0

-

ohm

Units

MHz

dB

V

dBm

°C

dB

* Maximum Rating (Ta=25°C)

** Custom SAW RF Filters available. Contact Oscilent for assistance.

.

Pin Layout

A

B

C

D

E

F

Ground

Input

Ground

Output

Ground

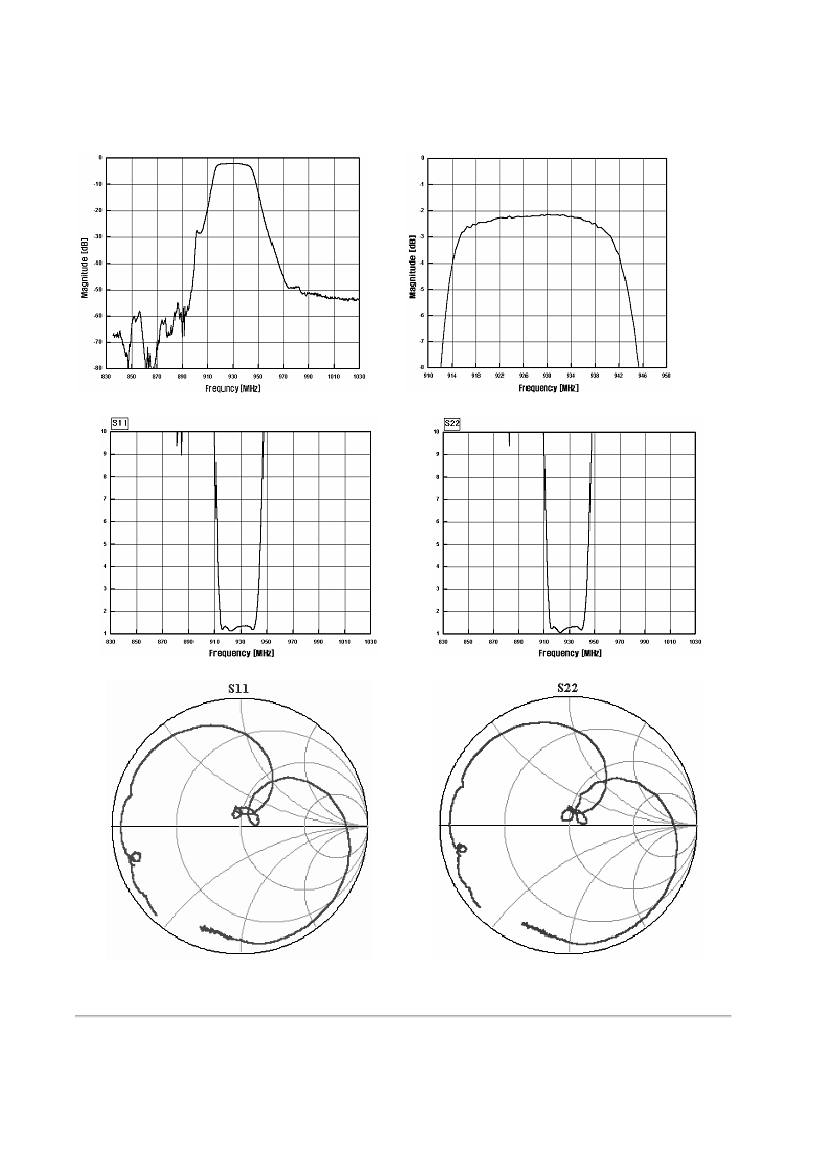

Frequency Reponse

http://www.oscilent.com/spec_pages/rf_sawfilter/rf_803_rf930_5a.htm

12/28/2005
