803-RF914.0M-A

Description
914.0 MHz RF SAW Filter
File Size357KB,3 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet View All

803-RF914.0M-A Overview

914.0 MHz RF SAW Filter

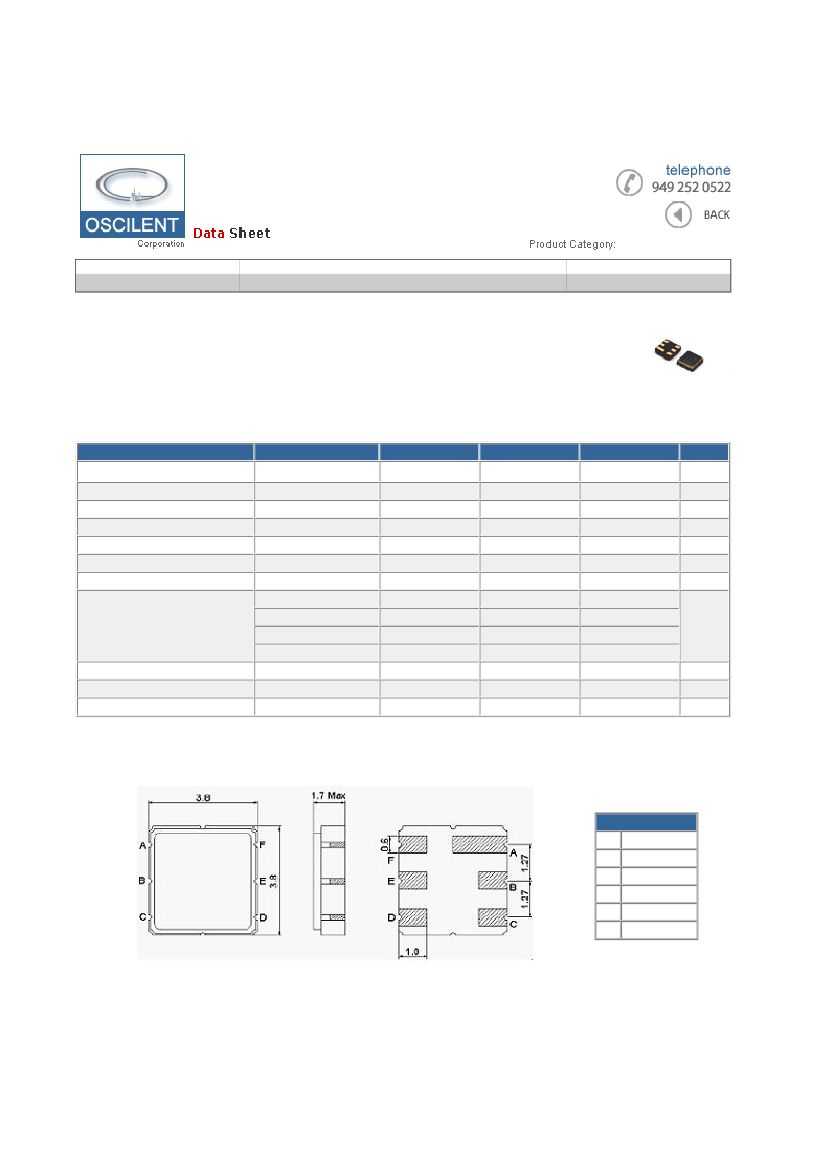

Oscilent Corporation RF SAW Filter | 803-RF914.0M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
803-RF914.0M-A
.
TYPE :
3.8 x 3.8 SMD
Wireless
Jan. 01, 2007
914.0 MHz RF SAW Filter
PART NUMBER :
803-RF914.0M-A
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
DC Voltage
Input Power
Operating Temperature
Storage Temperature
Amplitude Ripple
Stopband Attenuation
Condition
-
910.0 ~ 918 MHz
-
-
-
-
910 ~ 918 MHz
869 ~ 873 MHz
891 ~ 894 MHz
934 ~ 937 MHz
955 ~ 960 MHz
VSWR
Source Impedance
Load Impedance
910 ~ 918 MHz
single ended*
single ended*
Minimum
-
-
-
-
-30
-40
-
40.0
30.0
18.0
40.0
-
-
-
Typical
914.0
3.3
-
-
-
-
0.7
48.0
45.0
28.0
48.0
2.0
50
50
Maximum
-
4.0
5
15
+80
+85
2.0
-
-
-
-
2.5
-
-
-
ohm
ohm
Units
MHz
dB
V
dBm
°C
°C
dBp-p
dB
* No Matching Network ((Ref. Testing Environment Circuit as shown)
** Custom SAW RF Filters available. Contact Oscilent for assistance.
.

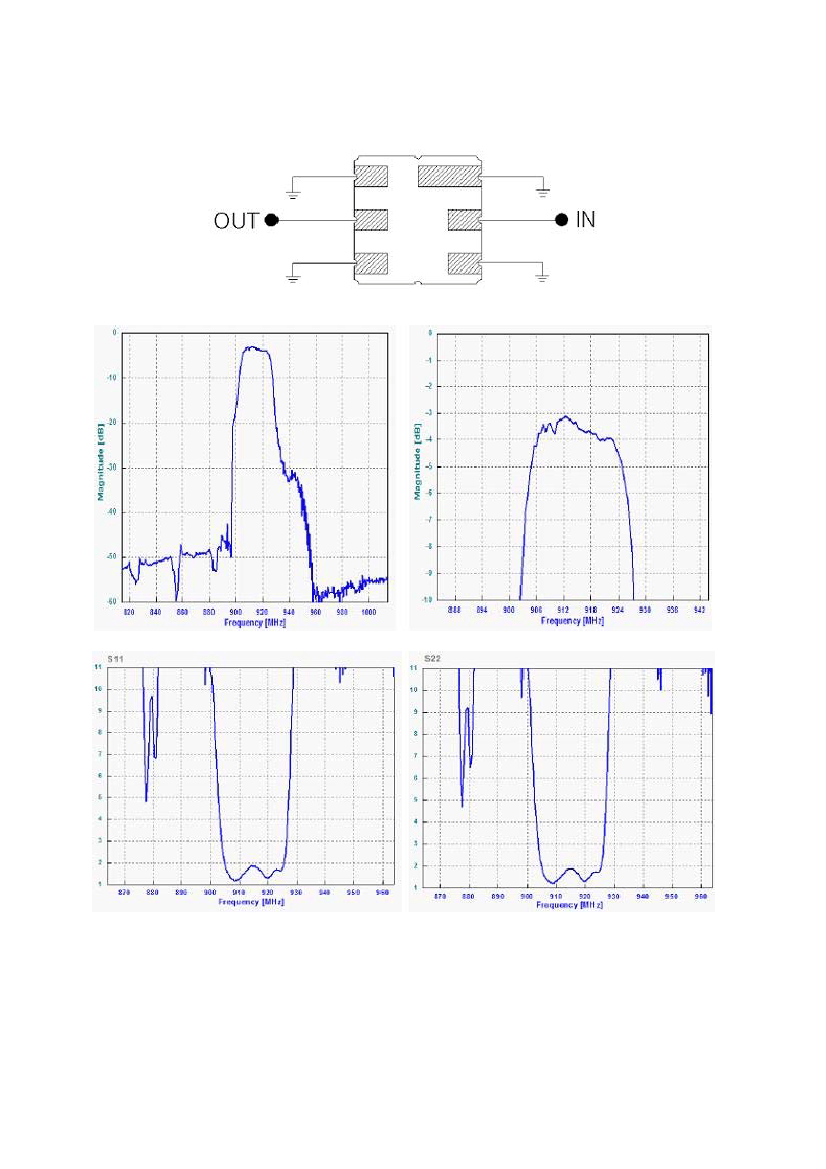

PACKAGE DRAWING
Pin Layout
A
B
C
D
E
F
Ground
Input
Ground
Ground
Output
Ground

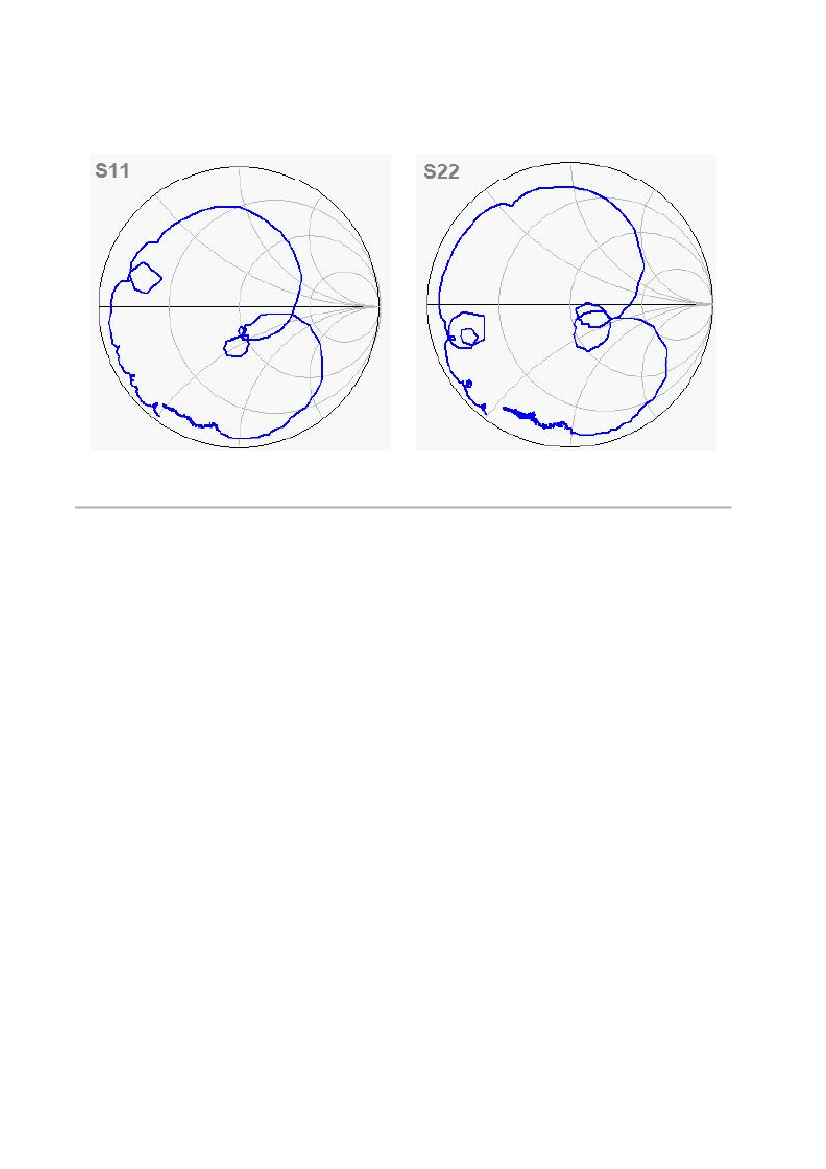

TEST FIXTURE
