803-RF481.2M-A

Description
CDMA450(F-Band), RF-Tx SAW Filter
CategoryAnalog mixed-signal IC    filter
File Size480KB，3 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet Parametric View All

803-RF481.2M-A Overview

CDMA450(F-Band), RF-Tx SAW Filter

803-RF481.2M-A Parametric

Parameter NameAttribute value
MakerOscilent
Reach Compliance Codecompliant
Center frequency or cutoff frequency (fo/fc)481.2 MHz
filter typeSAW FILTER
high1.4 mm
input resistance50 OHM
Maximum insertion loss2.8 dB
length3.8 mm
Manufacturer's serial number803-RF481.2M-A
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature80 °C
Minimum operating temperature-30 °C
Output impedance50 OHM Ω
physical sizeL3.8XB3.8XH1.4 (mm)/L0.15XB0.15XH0.055 (inch)
Base Number Matches1

Preview

Download Datasheet
Oscilent Corporation RF SAW Filter | 803-RF481.2M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
803-RF481.2M-A
.
TYPE :
3.8 x 3.8 SMD
CDMA450(F-Band) Tx
Jan. 01, 2007
CDMA450(F-Band), RF-Tx SAW Filter
PART NUMBER :
803-RF481.2M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Stop Band Attenuation:
Condition
-
479.0 ~ 483.5 MHz
0.3 ~ 467.0 MHz
489.0 ~ 493.5 MHz
493.5 ~ 1700 MHz
1700 ~ 2000 MHz
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Input Power
Operating Temperature
* No Matching Network
-
-
479.0 ~ 483.5 MHz
-
-
Minimum
-
-
25
30
23
18
-
-
-
-
-30
Typical
481.2
1.8
27
49
27
20
50
50
1.5
-
-
Maximum
-
2.8
-
-
-
-
-
-
2.0
30
+80
ohm
ohm
-
dBm
ºC
dB
Units
MHz
dB
.

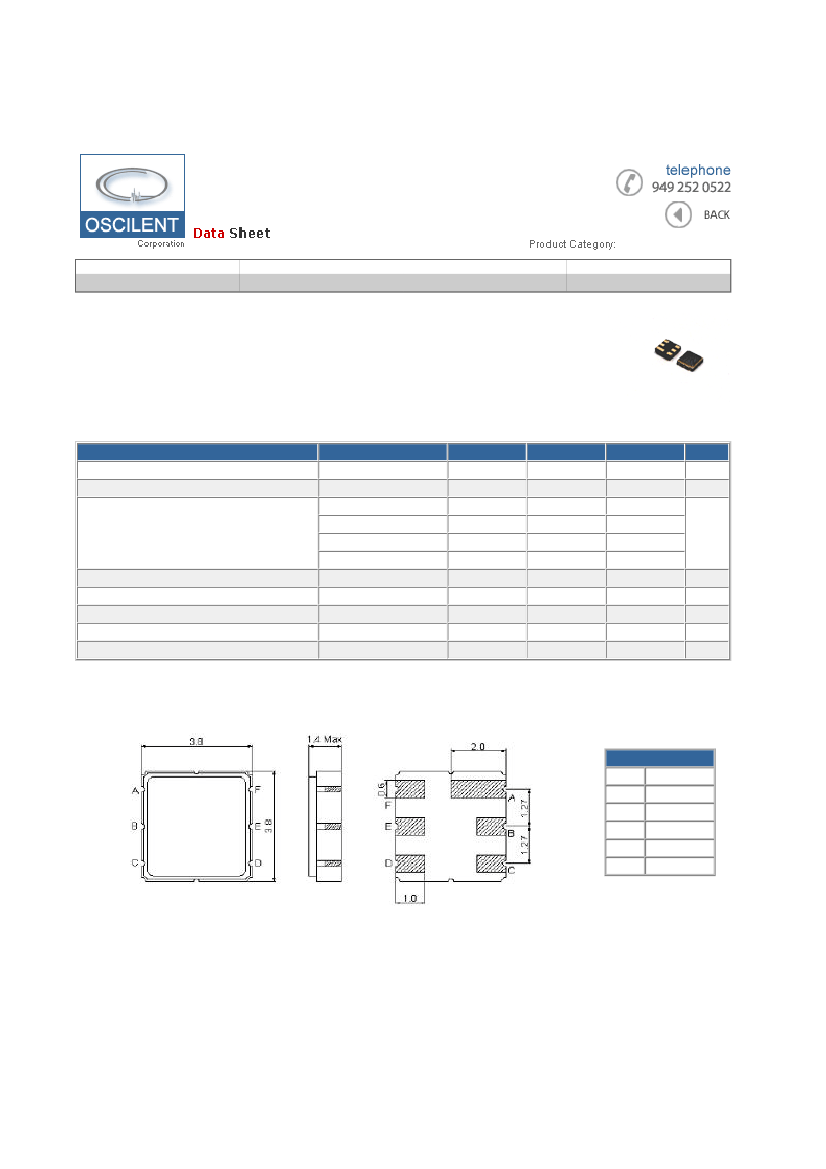

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
In
Ground
Ground
Out
Ground

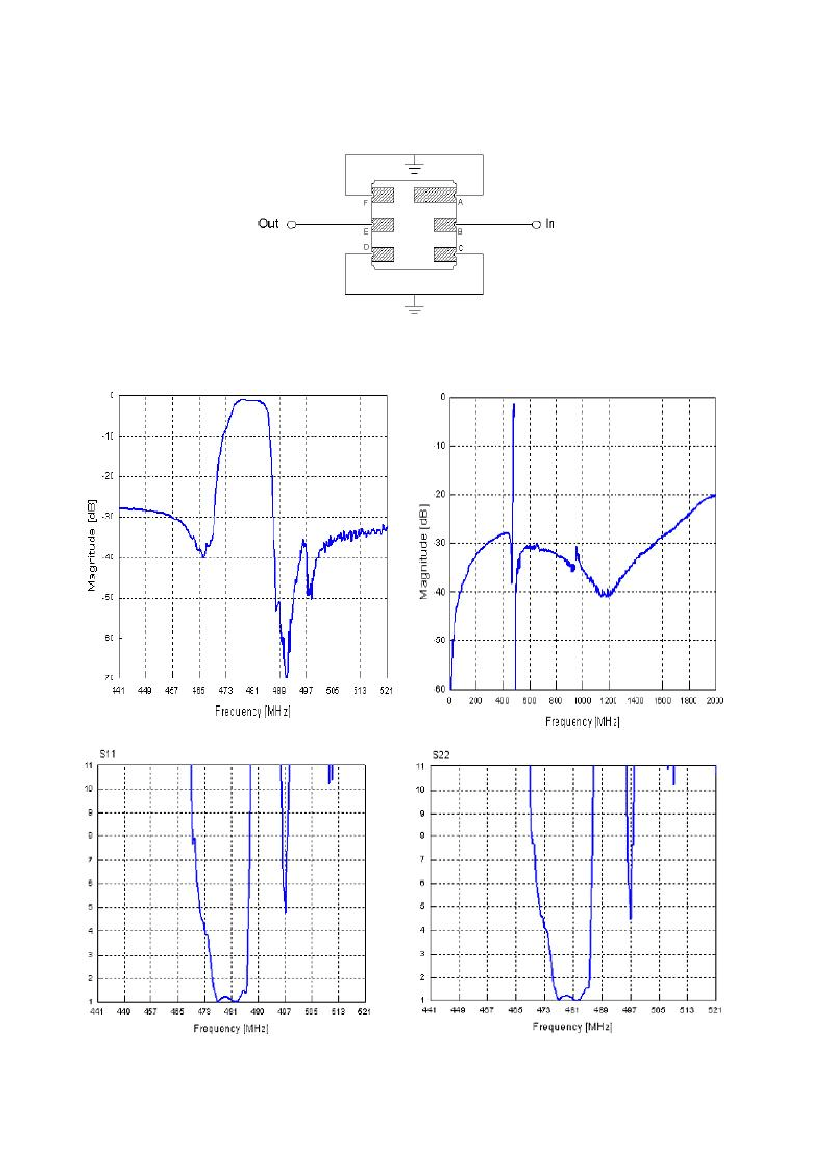

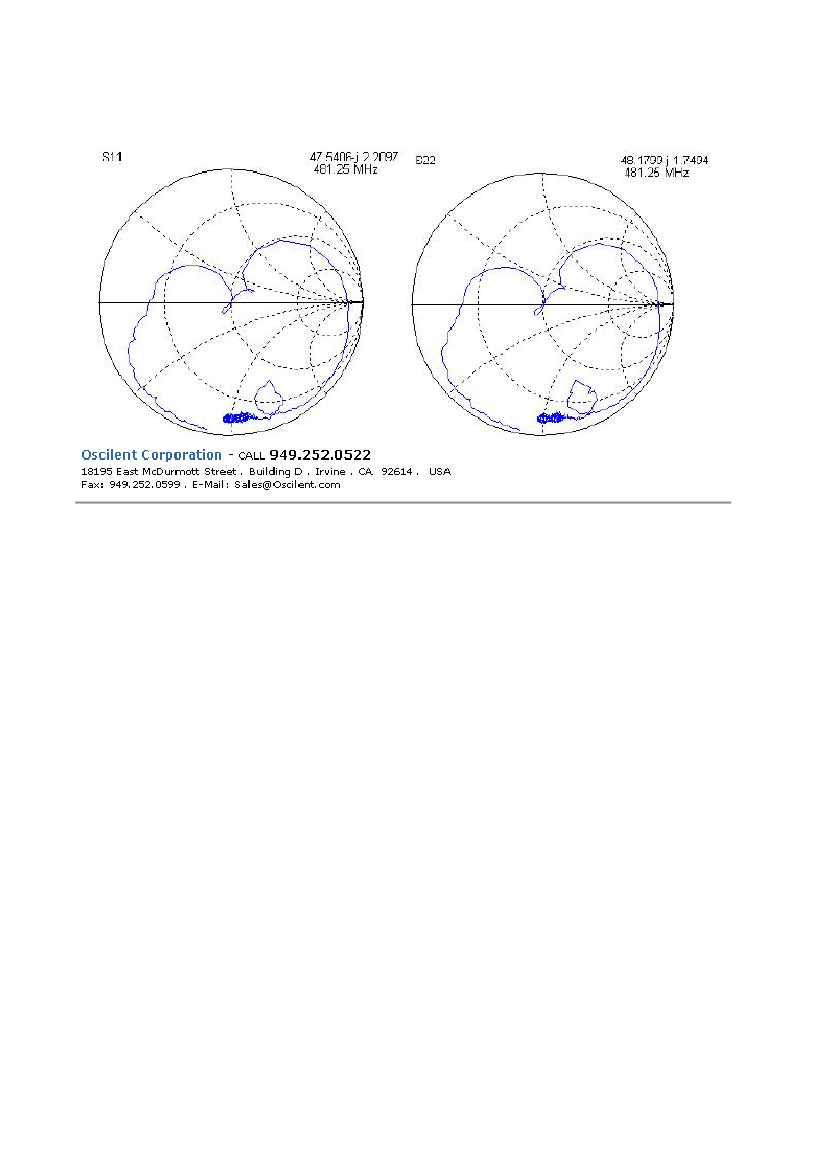

TEST FIXTURE

Recommended Resources

Schematic diagram of the working principle of DC brush motor

One of the battery discharge status indication circuits

CA3080 sample and hold circuit diagram

Battery voltage monitoring circuit that does not simply cut off the power supply

Power supply circuit for TTL circuit

Video amplifier circuit: Video amplifier board-1
