Oscilent Corporation RF SAW Filter | 803-RF380.8M-B
Page 1 of 2
RF SAW Filter
Part Number
Package
Application
Last Modified
803-RF380.8M-B
.
TYPE :
3.8 x 3.8 SMD
Wireless Communication
Jan. 01 2007
380.8 MHz RF SAW Filter
PART NUMBER :
803-RF380.8M-B
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss
Ripple
Stopband Attenuation
Teminating Impedance
Condition
-
380.200~381.325 MHz
380.200~381.325 MHz
DC~Fo-42.8 MHz
Fo +40.0 ~ Fo +200.0 MHz
-
Minimum
-
-
-
50.0
50.0
-
Typical
380.8
2.5
0.4
60.0
60.0
50/0
Maximum
-
3.0
1.0
-
-
-
ohm/pF
Units
MHz
dB
dB
dB
* Custom SAW RF Filters available. Contact Oscilent for assistance.
.

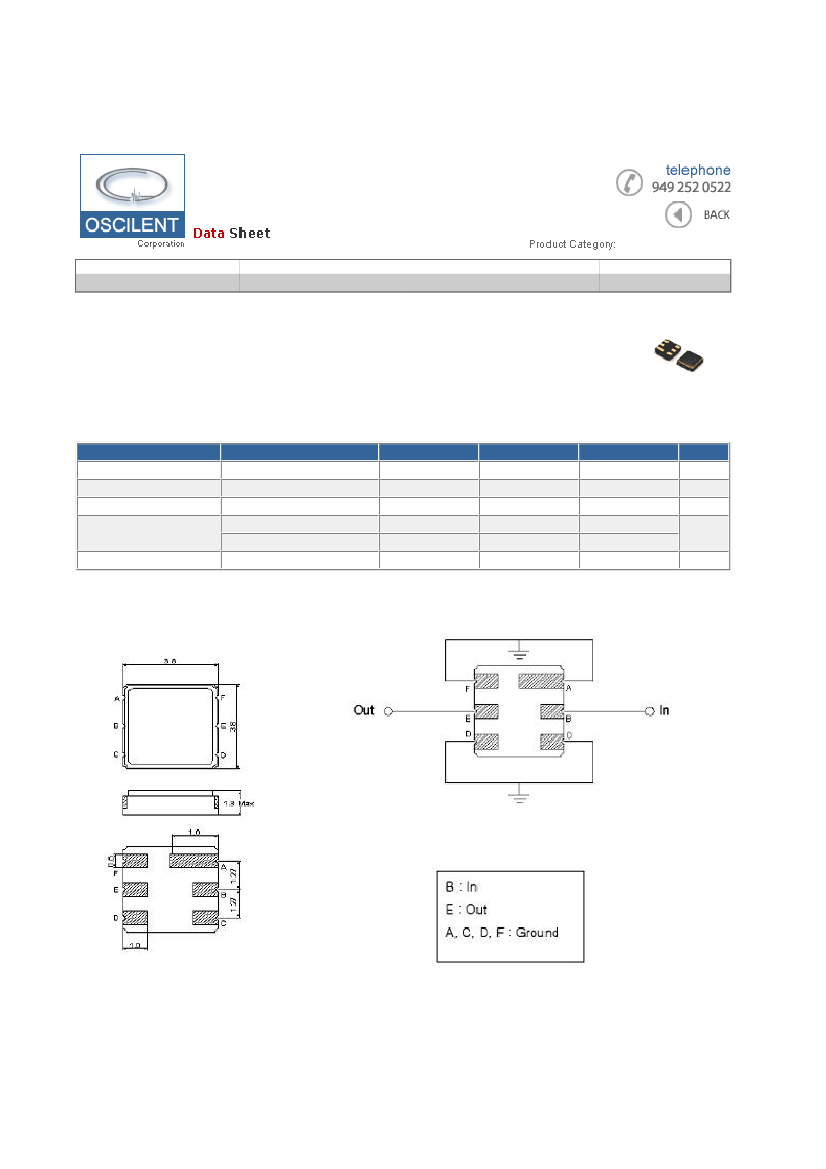

Package Outine
Test Fixture

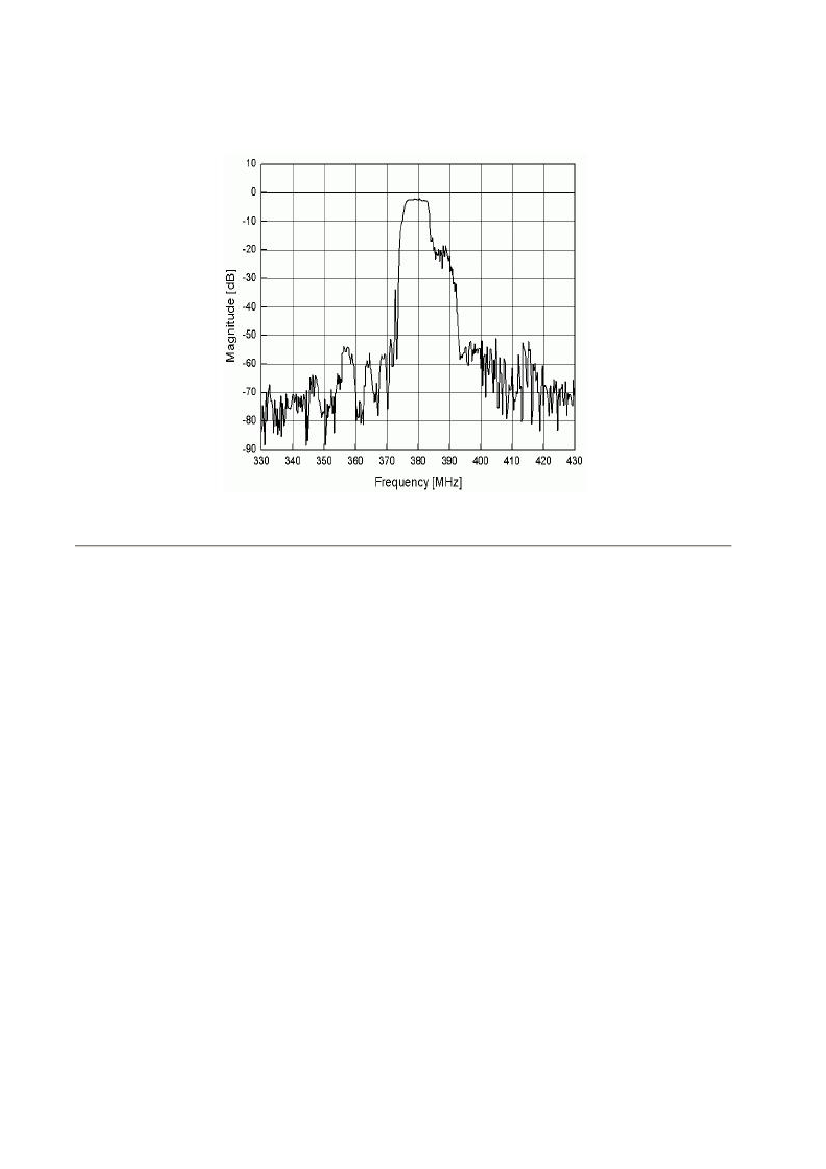

Frequency Reponse
