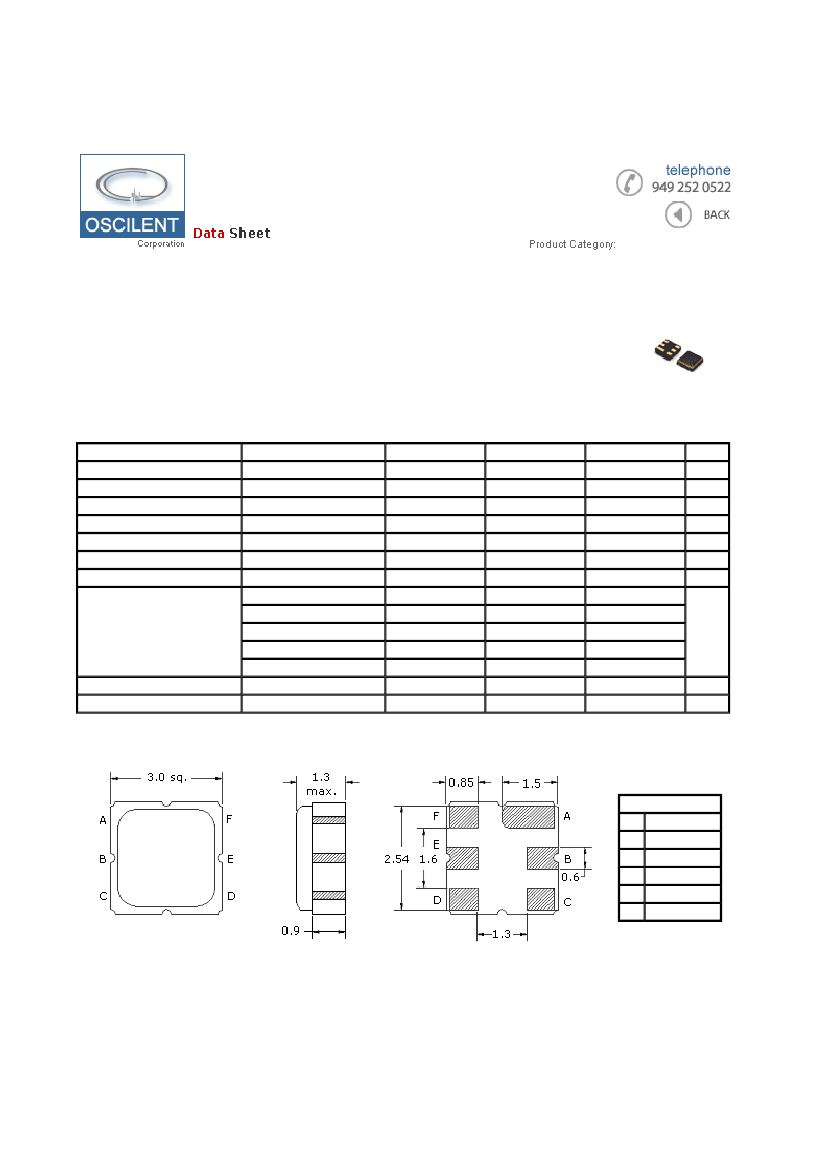

802-RF881.5M-B Overview

881.5 MHz RF SAW Filter

Oscilent Corporation RF SAW Filter | 802-RF881.5M-B
Page 1 of 2
RF SAW Filter
Part Number
Package
Application
Last Modified
802-RF881.5M-B
.
TYPE :
3.0 x 3.0 SMD
CDMA Rx
Apr. 12 2003
881.5 MHz RF SAW Filter
PART NUMBER :
802-RF881.5M-B
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
DC Voltage
Input Power
Operating Temperature
Storage Temperature
Ripple
Stopband Attenuation
Condition
-
869.0 ~ 894.0 MHz
-
-
-
-
869.0 ~ 894.0 MHz
DC ~ 779MHz
779.0 ~ 849.0 MHz
914.0 ~ 970.0 MHz
970.0 ~ 1049.0 MHz
1049.0 ~ 2000.0 MHz
VSWR
Teminating Impedance
869.0 ~ 894.0 MHz
-
Minimum
-
-
-
-
-30
-40
-
50.0
45.0
28.0
50.0
40.0
-
-
Typical
881.5
2.8
-
-
-
-
0.7
57.0
49.0
33.0
62.0
46.0
1.7
50
Maximum
-
3.5
5
15
+65
+85
1.6
-
-
-
-
-
2.0
-
-
ohm
Units
MHz
dB
V
dBm
°C
°C
dB
dB
* Maximum Rating (Ta=25°C)
** Custom SAW RF Filters available. Contact Oscilent for assistance.
.
Pin Layout
A
B
C
D
E
F
Ground
Output
Ground
Ground
Input
Ground

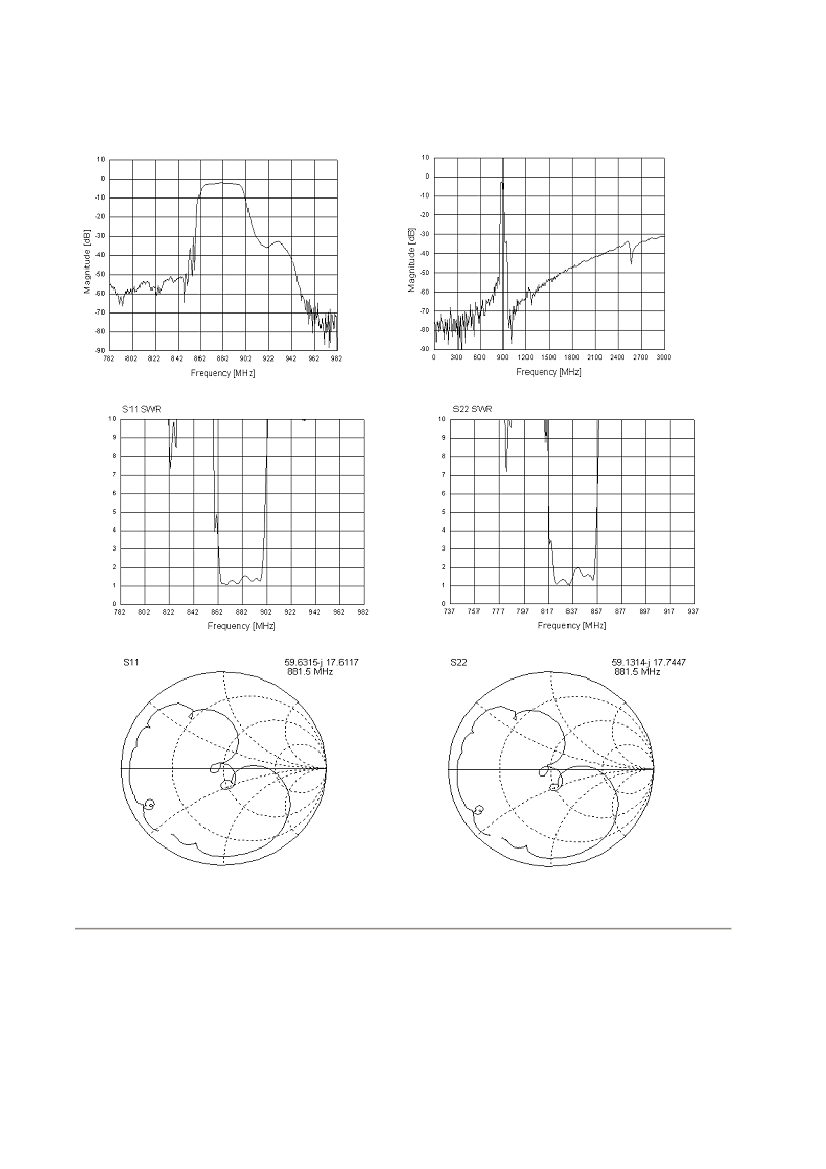

Frequency Reponse
http://www.oscilent.com/spec_pages/rf_sawfilter/rf_802_rf881_5b.htm
12/28/2005
