BUD87-SMD datasheet, PDF - EEWORLD Datasheet

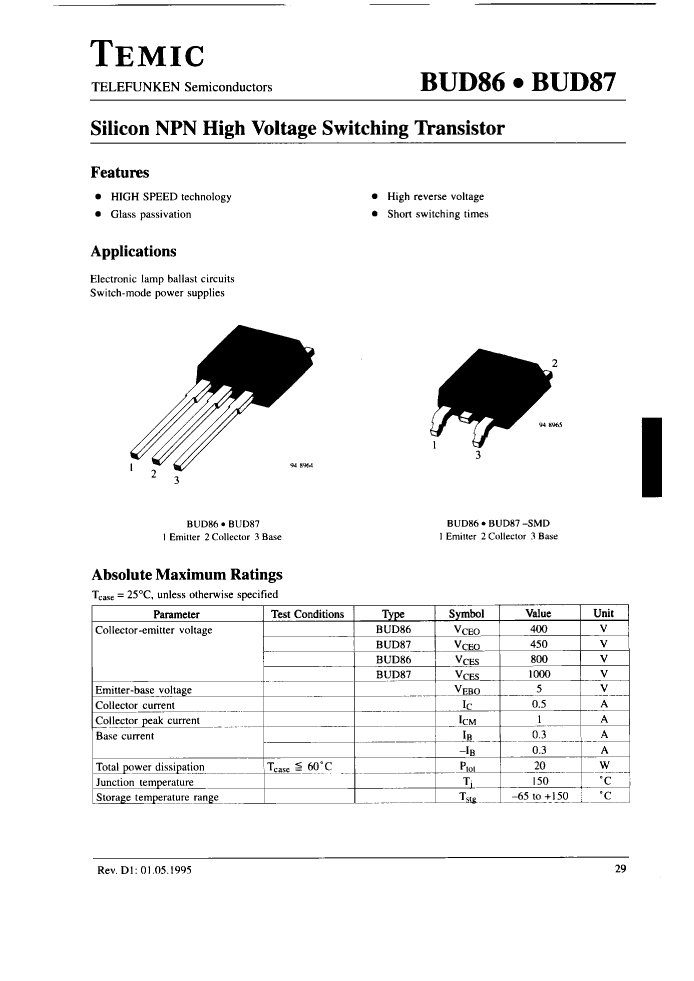

BUD87-SMD: DescriptionPower Bipolar Transistor, 0.5A I(C), 450V V(BR)CEO, 1-Element, NPN, Silicon, TO-252, Plastic/Epoxy, 2 Pin,; CategoryDiscrete semiconductor The transistor; File Size101KB，5 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

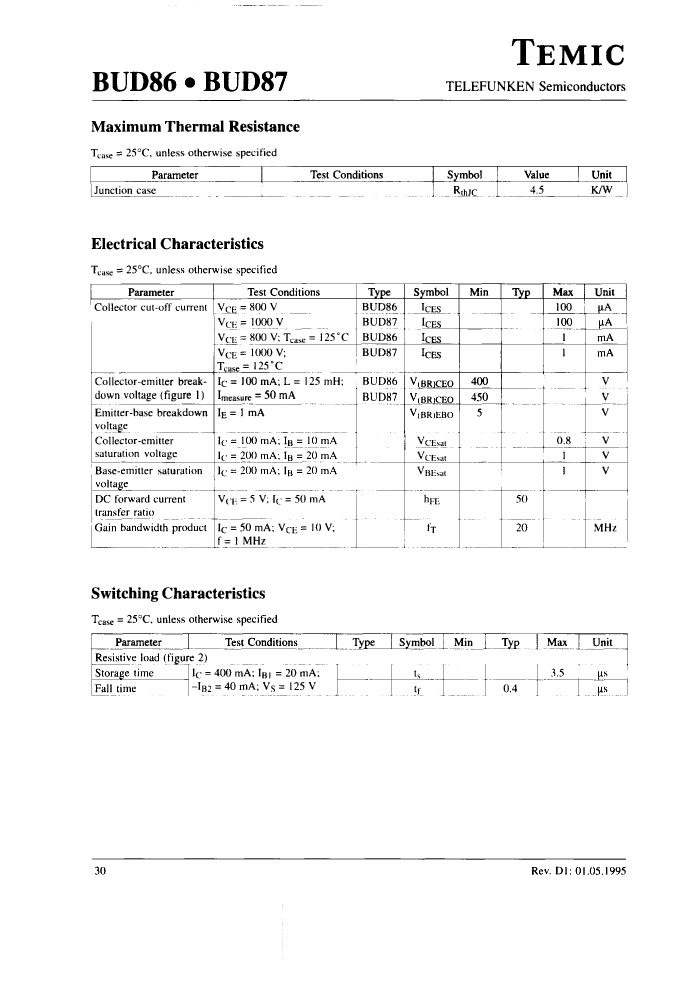

BUD87-SMD Overview

Power Bipolar Transistor, 0.5A I(C), 450V V(BR)CEO, 1-Element, NPN, Silicon, TO-252, Plastic/Epoxy, 2 Pin,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum collector current (IC)	0.5 A

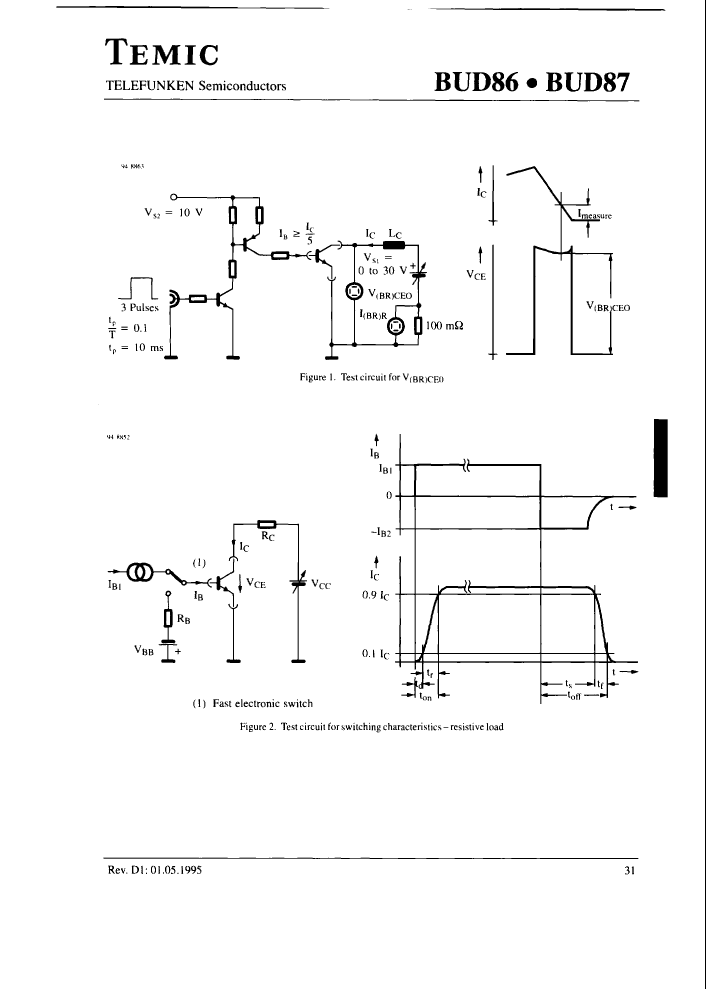

Collector-emitter maximum voltage	450 V
Configuration	SINGLE

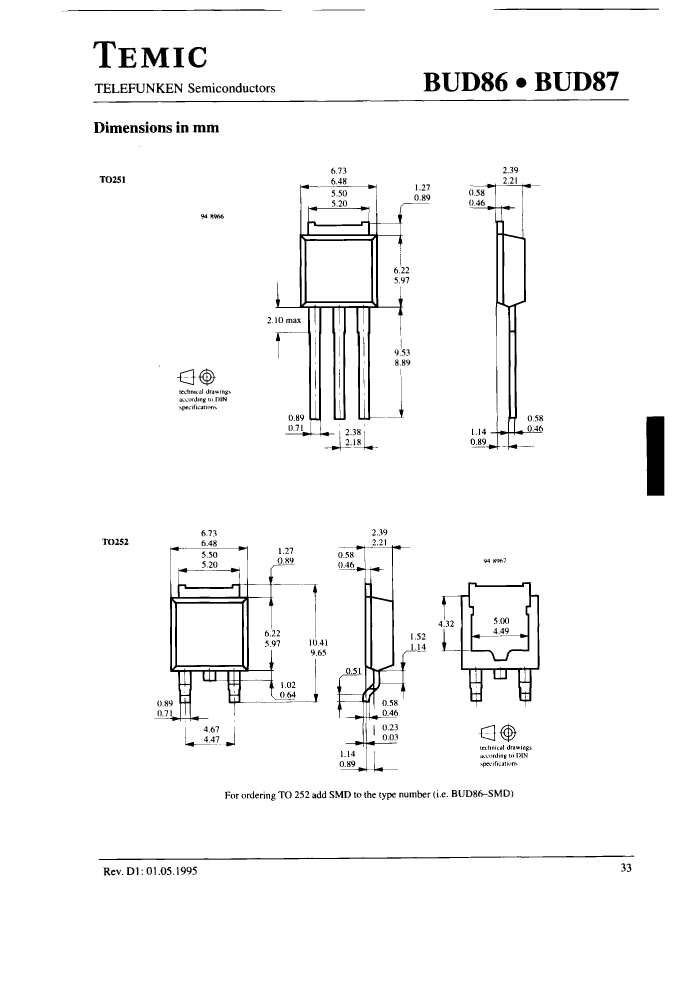

JEDEC-95 code	TO-252
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

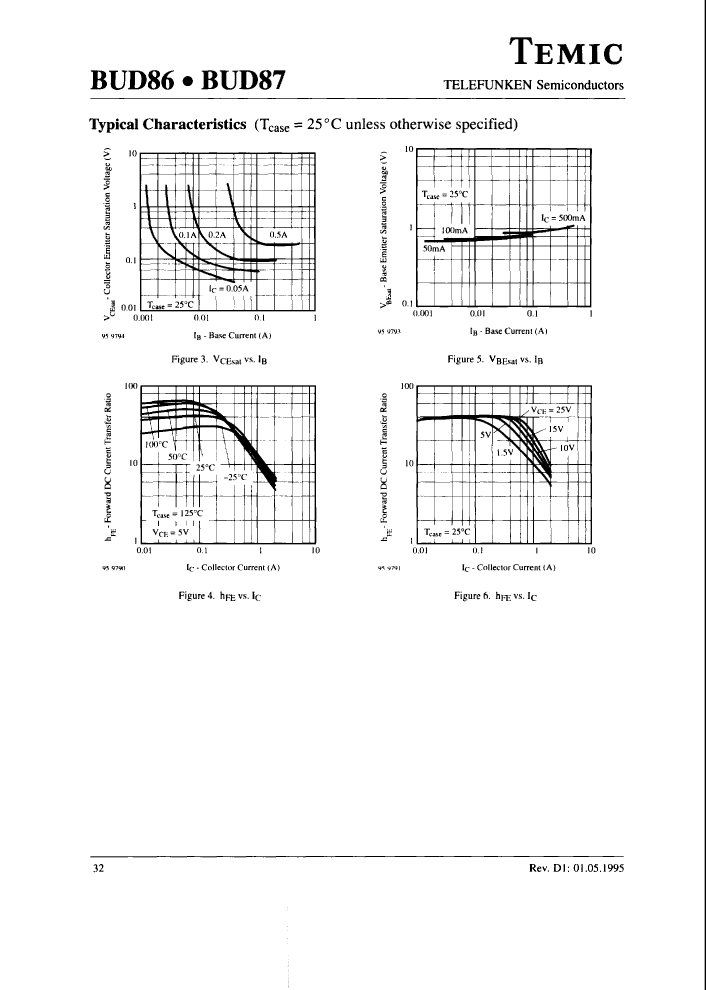

Nominal transition frequency (fT)	20 MHz
Base Number Matches	1

	BUD87-SMD	BUD86-SMD	BUD87
Description	Power Bipolar Transistor, 0.5A I(C), 450V V(BR)CEO, 1-Element, NPN, Silicon, TO-252, Plastic/Epoxy, 2 Pin,	Power Bipolar Transistor, 0.5A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-252, Plastic/Epoxy, 2 Pin,	Power Bipolar Transistor, 0.5A I(C), 450V V(BR)CEO, 1-Element, NPN, Silicon, TO-251, Plastic/Epoxy, 3 Pin,
Reach Compliance Code	unknown	unknown	unknown
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	450 V	400 V	450 V
Configuration	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-252	TO-252	TO-251
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSIP-T3
Number of components	1	1	1
Number of terminals	2	2	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Polarity/channel type	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	20 MHz	20 MHz	20 MHz
Maker	-	TEMIC	TEMIC
