MCR5165

Description
Silicon Controlled Rectifier, 20A I(T)RMS, 20000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-203AA, CASE 174-04, 2 PIN
CategoryAnalog mixed-signal IC    Trigger device
File Size77KB,2 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

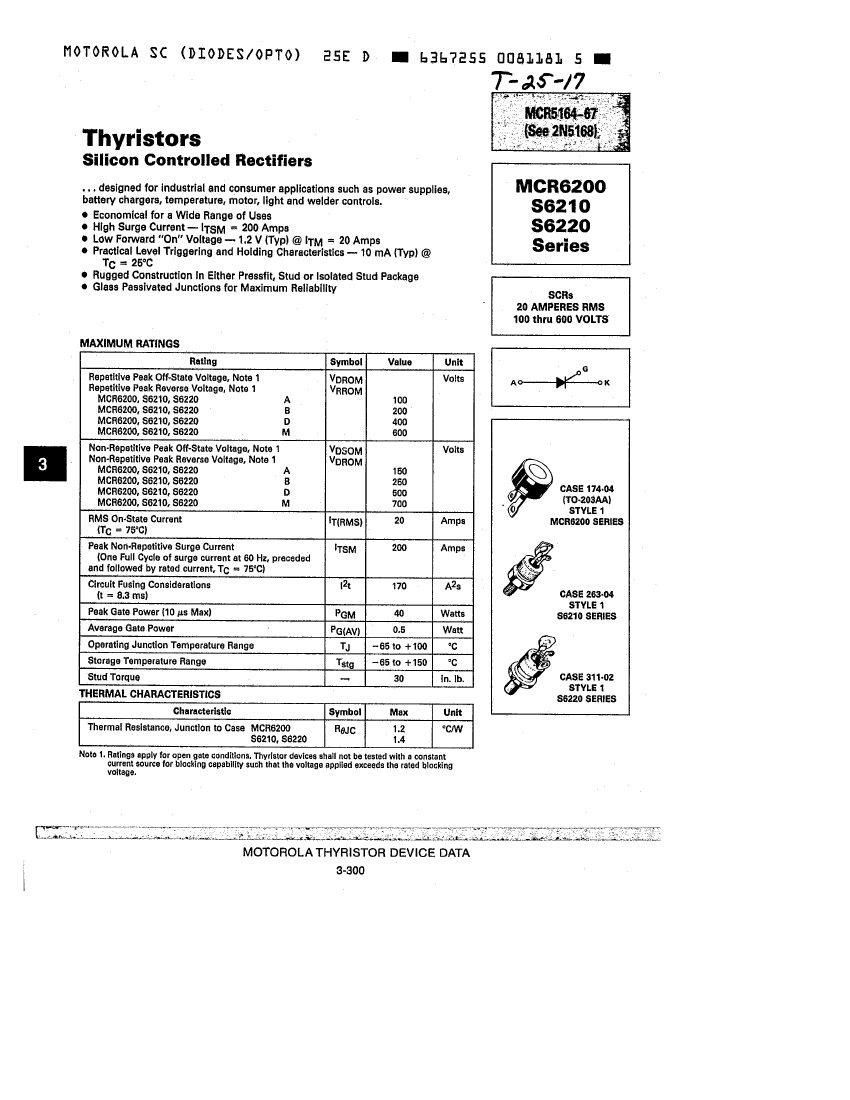

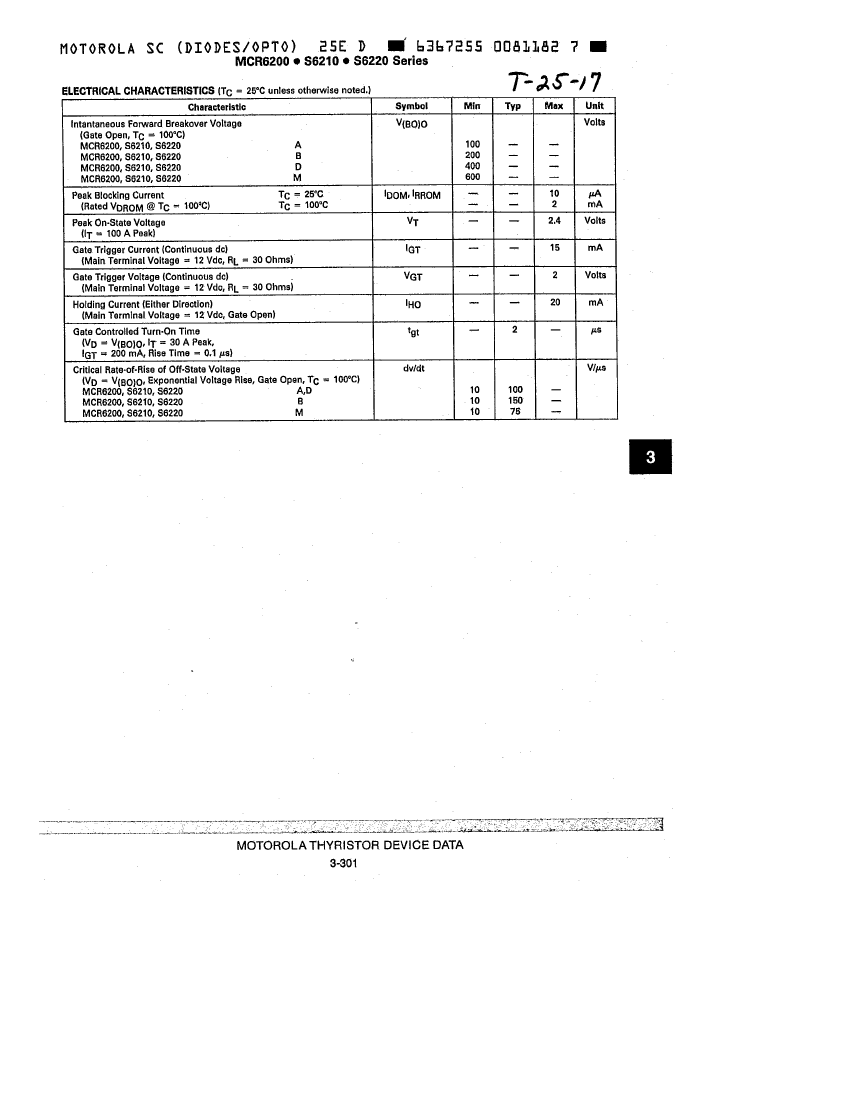

MCR5165 Overview

Silicon Controlled Rectifier, 20A I(T)RMS, 20000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-203AA, CASE 174-04, 2 PIN

MCR5165 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionPRESS FIT, O-MUPF-D2
Reach Compliance Codeunknown
Shell connectionANODE
Nominal circuit commutation break time20 µs
ConfigurationSINGLE
Critical rise rate of minimum off-state voltage50 V/us
Maximum DC gate trigger current40 mA
Maximum DC gate trigger voltage1.5 V
Maximum holding current50 mA
JEDEC-95 codeTO-203AA
JESD-30 codeO-MUPF-D2
JESD-609 codee0
Maximum leakage current5 mA
On-state non-repetitive peak current240 A
Number of components1
Number of terminals2
Maximum on-state voltage1.7 V
Maximum on-state current20000 A
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Package body materialMETAL
Package shapeROUND
Package formPRESS FIT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current20 A
Maximum repetitive peak off-state leakage current10 µA
Off-state repetitive peak voltage200 V
Repeated peak reverse voltage200 V
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formSOLDER LUG
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR
Base Number Matches1

MCR5165 Related Products

MCR5165 MCR5164 MCR5167
Description Silicon Controlled Rectifier, 20A I(T)RMS, 20000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-203AA, CASE 174-04, 2 PIN Silicon Controlled Rectifier, 20A I(T)RMS, 20000mA I(T), 50V V(DRM), 50V V(RRM), 1 Element, TO-203AA, CASE 174-04, 2 PIN Silicon Controlled Rectifier, 20A I(T)RMS, 20000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-203AA, CASE 174-04, 2 PIN
Is it Rohs certified? incompatible incompatible incompatible
package instruction PRESS FIT, O-MUPF-D2 PRESS FIT, O-MUPF-D2 PRESS FIT, O-MUPF-D2
Reach Compliance Code unknown unknown unknown
Shell connection ANODE ANODE ANODE
Nominal circuit commutation break time 20 µs 20 µs 20 µs
Configuration SINGLE SINGLE SINGLE
Critical rise rate of minimum off-state voltage 50 V/us 50 V/us 50 V/us
Maximum DC gate trigger current 40 mA 40 mA 40 mA
Maximum DC gate trigger voltage 1.5 V 1.5 V 1.5 V
Maximum holding current 50 mA 50 mA 50 mA
JEDEC-95 code TO-203AA TO-203AA TO-203AA
JESD-30 code O-MUPF-D2 O-MUPF-D2 O-MUPF-D2
JESD-609 code e0 e0 e0
Maximum leakage current 5 mA 5 mA 5 mA
On-state non-repetitive peak current 240 A 240 A 240 A
Number of components 1 1 1
Number of terminals 2 2 2
Maximum on-state voltage 1.7 V 1.7 V 1.7 V
Maximum on-state current 20000 A 20000 A 20000 A
Maximum operating temperature 100 °C 100 °C 100 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Package body material METAL METAL METAL
Package shape ROUND ROUND ROUND
Package form PRESS FIT PRESS FIT PRESS FIT
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 20 A 20 A 20 A
Maximum repetitive peak off-state leakage current 10 µA 10 µA 10 µA
Off-state repetitive peak voltage 200 V 50 V 600 V
Repeated peak reverse voltage 200 V 50 V 600 V
surface mount NO NO NO
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form SOLDER LUG SOLDER LUG SOLDER LUG
Terminal location UPPER UPPER UPPER
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Trigger device type SCR SCR SCR
Base Number Matches 1 1 1
