TME-521-Q-T/R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TME-521-Q-T/R

TME-521-Q-T/R: DescriptionSpecial Switch, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size3MB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

TME-521-Q-T/R Overview

Special Switch, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight

TME-521-Q-T/R Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator type	PUSHBUTTON
body width	5.207 mm
Body length or diameter	5.207 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	1000000 Cycle(s)
Manufacturer's serial number	TMG-5
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

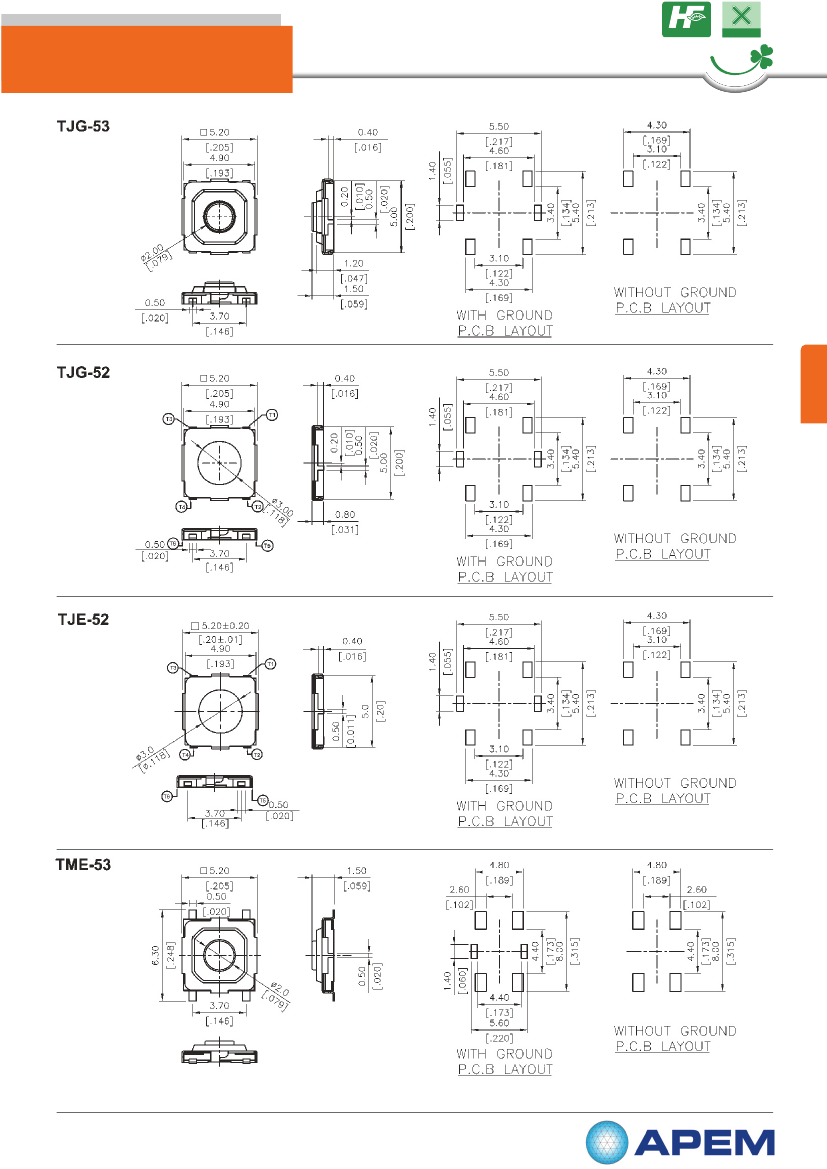

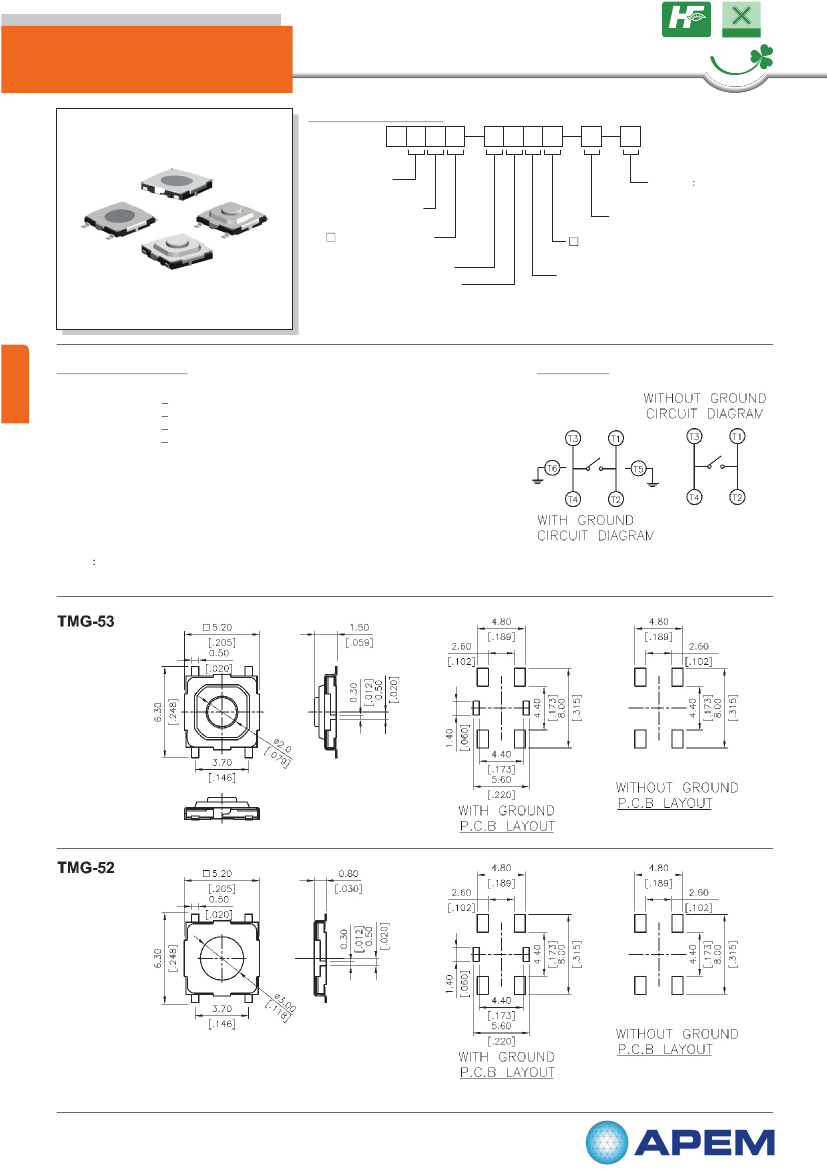

TMG -5, TJG-5

SERIES

5x5 SMT & J SMT Type

(H: 0.8 & 1.5mm)

HOW TO ORDER

T/R

Halogen Free

LEAD FREE

RoHS

Compliant

M=Gull Wing

J=J Bend

G=With Ground Terminals

E=Ground Pin In Central

=Cover Nickel Silver

S=Cover Stainless Steel

5x5mm

Total H:

2=0.8mm (No Stem)

3=1.5mm

Package

T/R=Tape & Reel

Halogen Free

=No Stem

I=Stem Material Spcc (For Total H:1.5mm)

Operating Force:

1=70gf

(Only For Metal Stem)

2=100gf

3=160gf

4=260gf

SPECIFICATION

MECHANICAL

Operation Force: 260+50gf

160+50gf

100+50gf

70+30gf

Stroke: 0.25

+0.1 mm/- 0.2 mm

ENVIRONMENTAL

Operation Temperature Range : -25C to +70C

Storage Temperature Range : -30C to +80C

ELECTRICAL

Electrical Life:

1,000,000 cycles min. for 70gf, 100gf, 160gf

200,000 cycles min. for 260gf

Rating 50mA, 12VDC

PACKAGE

Tape and Reel: 4000 pcs/reel

CIRCUIT

TACT SWITCH
