74LVT32373 • 74LVTH32373 Low Voltage 32-Bit Transparent Latch with 3-STATE Outputs (Preliminary)

August 2001

Revised August 2001

74LVT32373 • 74LVTH32373

Low Voltage 32-Bit Transparent Latch

with 3-STATE Outputs (Preliminary)

General Description

The LVT32373 and LVTH32373 contain thirty-two non-

inverting latches with 3-STATE outputs and are intended

for bus oriented applications. The device is byte controlled.

The flip-flops appear transparent to the data when the

Latch Enable (LE) is HIGH. When LE is LOW, the data that

meets the setup time is latched. Data appears on the bus

when the Output Enable (OE) is LOW. When OE is HIGH,

the outputs are in a high impedance state.

The LVTH32373 data inputs include bushold, eliminating

the need for external pull-up resistors to hold unused

inputs.

These latches are designed for low-voltage (3.3V) V

applications, but with the capability to provide a TTL inter-

face to a 5V environment. The LVT32373 and LVTH32373

are fabricated with an advanced BiCMOS technology to

achieve high speed operation similar to 5V ABT while

maintaining a low power dissipation.

Features

Input and output interface capability to systems at

5V V

Bushold data inputs eliminate the need for external

pull-up resistors to hold unused inputs (74LVTH32373),

also available without bushold feature (74LVT32373)

Live insertion/extraction permitted

Power Up/Down high impedance provides glitch-free

bus loading

Outputs source/sink

−

32 mA/

64 mA

ESD performance:

Human-body model

2000V

Machine model

200V

Charged-device model

1000V

Packaged in plastic Fine-Pitch Ball Grid Array (FBGA)

(Preliminary)

Ordering Code:

Order Number

74LVT32373GX

(Note 1)

74LVTH32373GX

(Note 1)

Package Number

BGA96A

(Preliminary)

BGA96A

(Preliminary)

Package Description

96-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide

[TAPE and REEL]

96-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide

[TAPE and REEL]

Note 1:

BGA package available in Tape and Reel only.

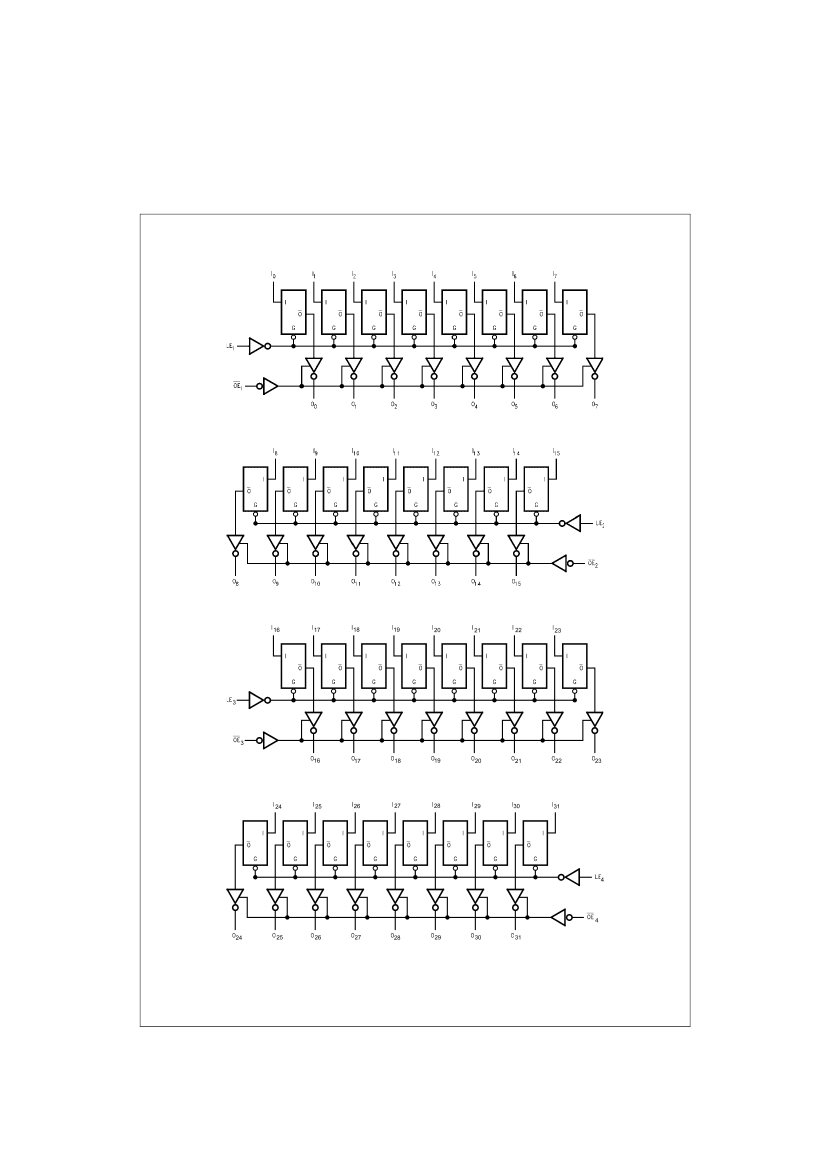

Logic Symbol

DS500548

www.fairchildsemi.com
