BTFW18P-3SBTE1 datasheet, PDF - EEWORLD Datasheet

BTFW18P-3SBTE1: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

BTFW18P-3SBTE1 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BTFW
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Total number of contacts	18
Base Number Matches	1

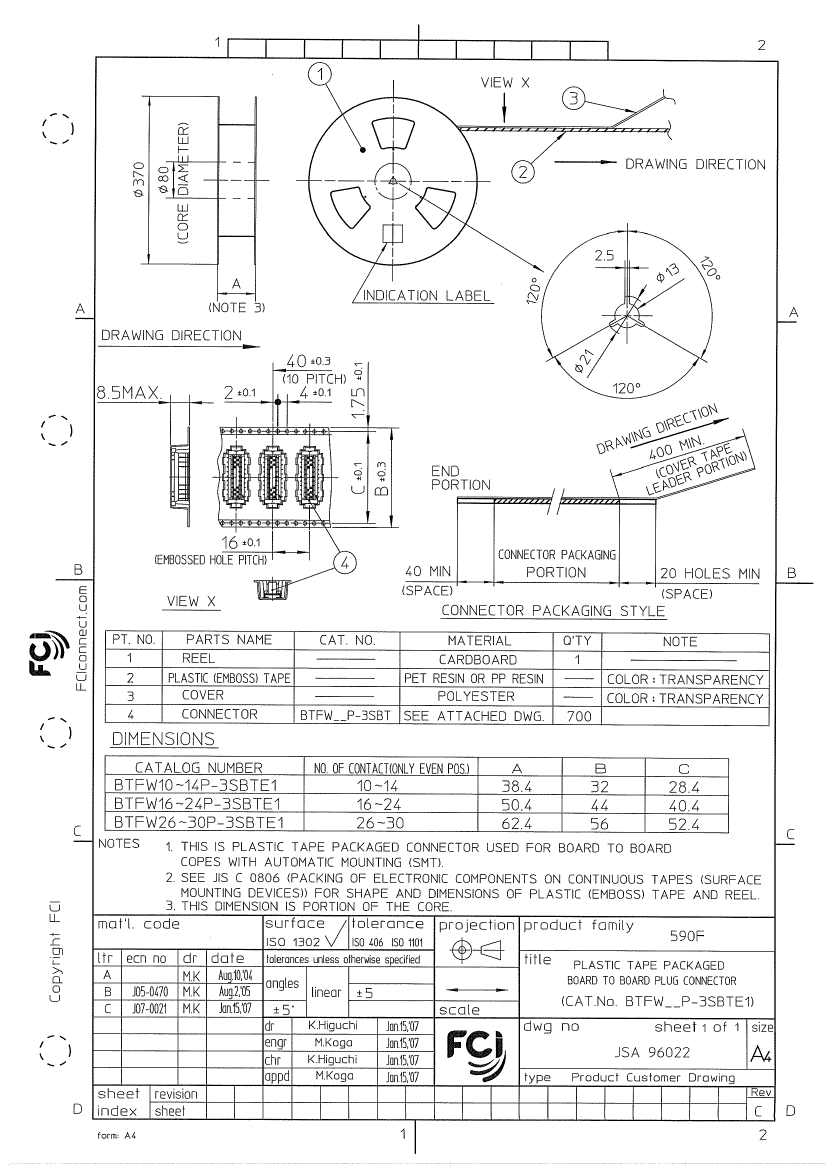

PDM: Rev:C

STATUS:

Released

Printed: Feb 01, 2007

	BTFW18P-3SBTE1	BTFW26P-3SBTE1	BTFW28P-3SBTE1	BTFW20P-3SBTE1
Description	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug
Reach Compliance Code	compliant	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	BTFW	BTFW	BTFW	BTFW
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	18	26	28	20
Base Number Matches	1	1	1	1
