GD74F125 datasheet, PDF - EEWORLD Datasheet

GD74F125: DescriptionBus Driver, F/FAST Series, 4-Func, 1-Bit, True Output, TTL, PDIP14,; Categorylogic logic; File Size75KB，4 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

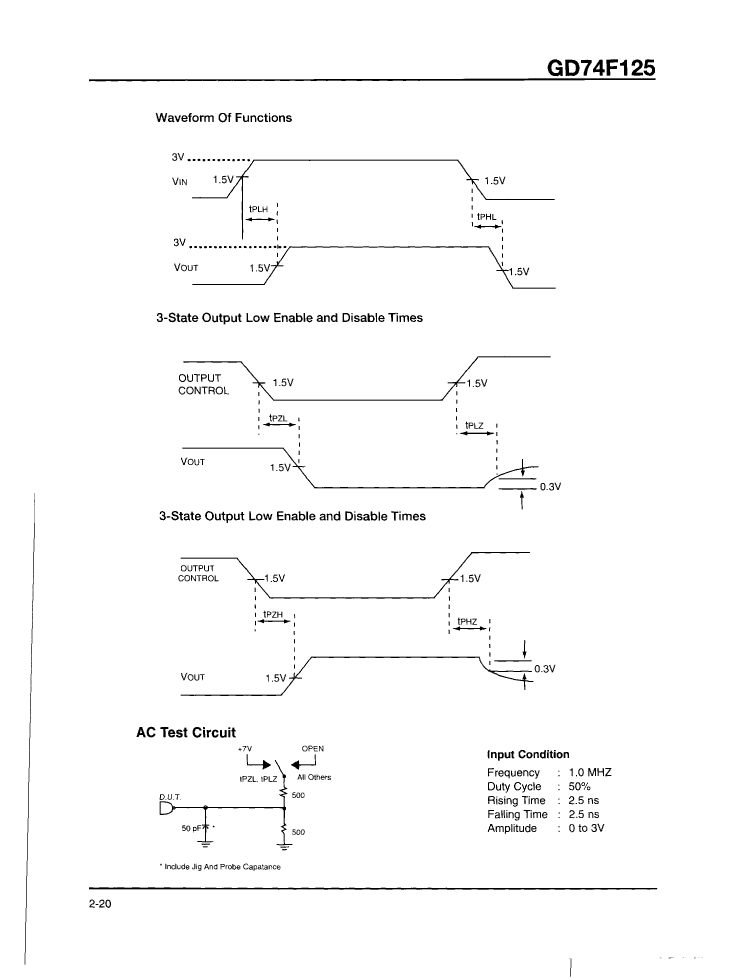

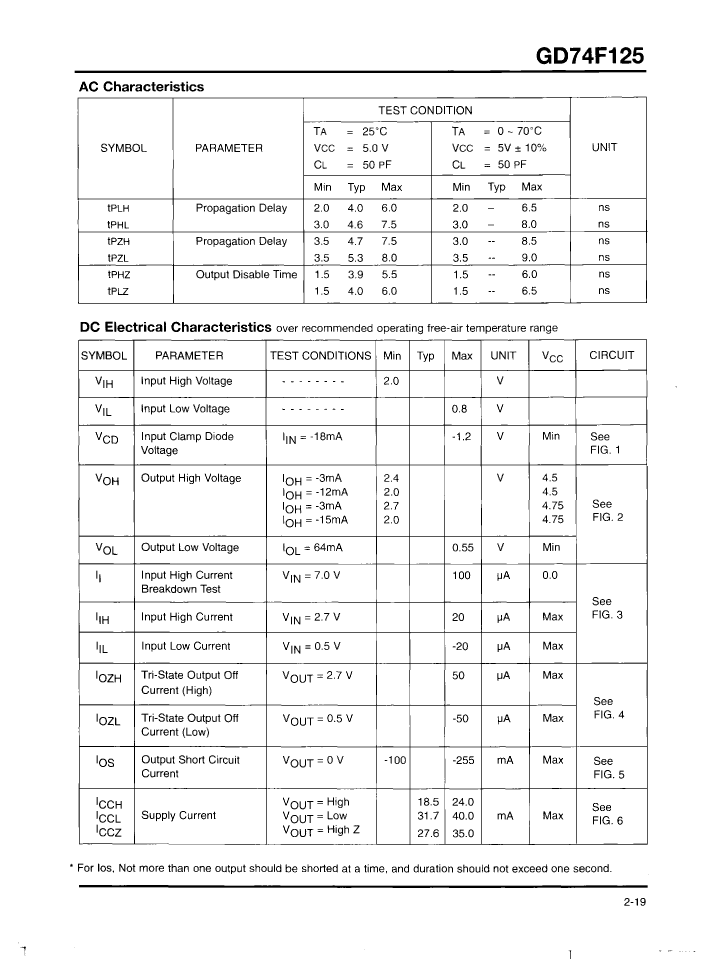

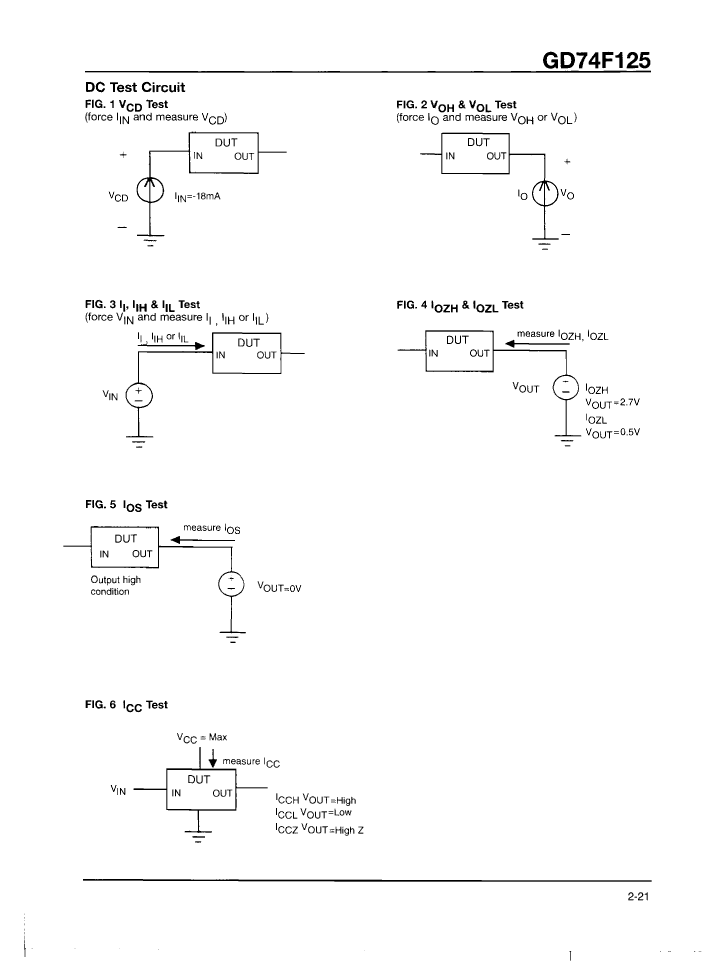

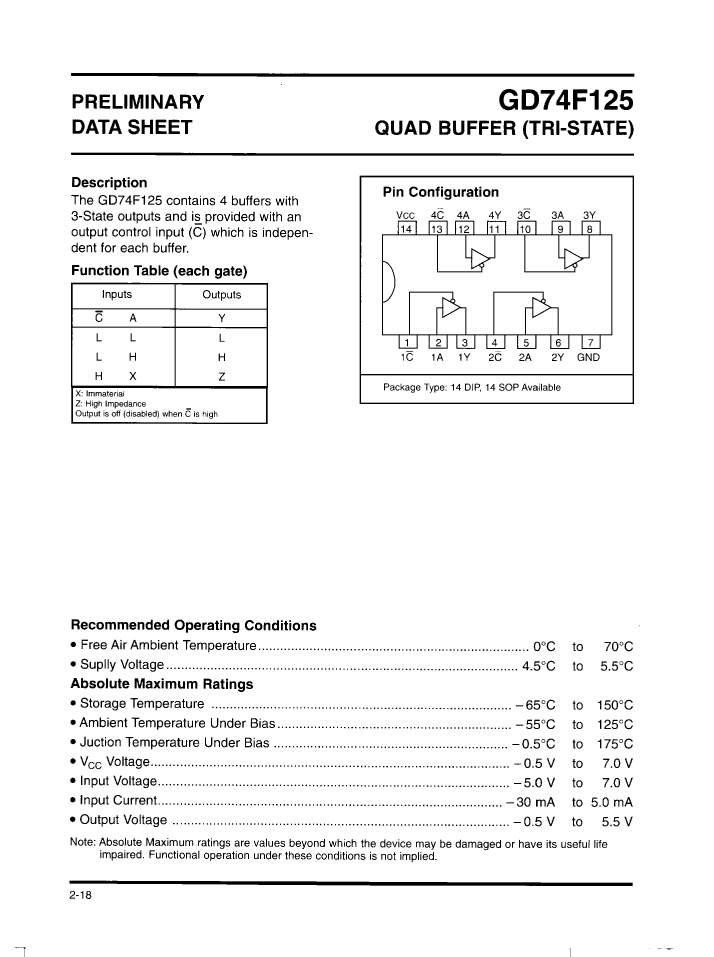

GD74F125 Overview

Bus Driver, F/FAST Series, 4-Func, 1-Bit, True Output, TTL, PDIP14,

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	40 mA
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	GD74F125	GD74F125D	GD74F125J
Description	Bus Driver, F/FAST Series, 4-Func, 1-Bit, True Output, TTL, PDIP14,	Bus Driver, F/FAST Series, 4-Func, 1-Bit, True Output, TTL, PDSO14,	Bus Driver, F/FAST Series, 4-Func, 1-Bit, True Output, TTL, CDIP14,
Reach Compliance Code	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-CDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	1	1	1
Number of functions	4	4	4
Number of ports	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	40 mA	40 mA	40 mA
propagation delay (tpd)	8 ns	8 ns	8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
