MBG30R-11 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MBG30R-11

Preview

MBG30R-11: DescriptionCircular Connector, 30 Contact(s), Polyester, Female, Receptacle; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MBG30R-11 Overview

Circular Connector, 30 Contact(s), Polyester, Female, Receptacle

MBG30R-11 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	BANTAMATE II, COMPATIBLE CONTACTS: RC28M-1D28; RC24M-9D28; RC20M-13D28; RC20M-12D28; RC16M-23D28
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	MBG
Mixed contacts	NO
Installation type	CABLE AND PANEL
Shell material	POLYESTER
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

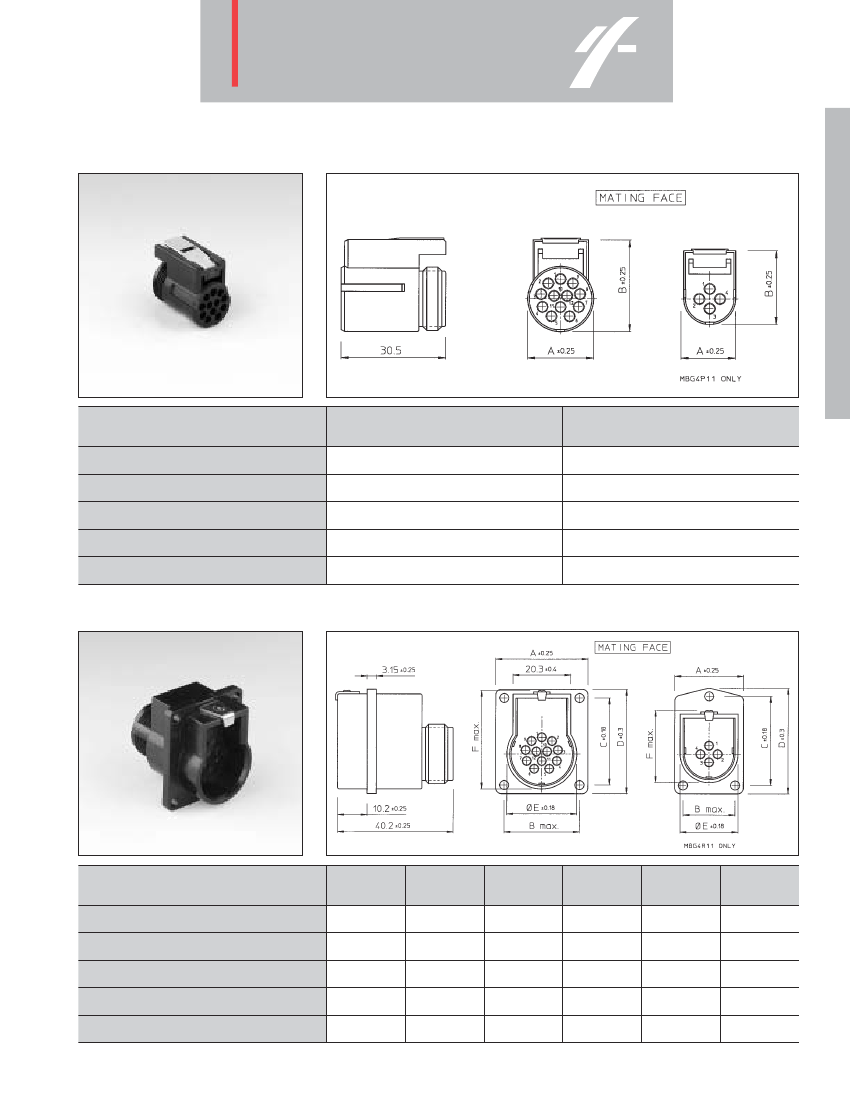

MBG

- Bantamate II

Female plug connector for socket contacts (MBG--P1) - Standard version

Male plug connector for pin contacts (MBG--P11) - Reversed version

Female plug

MBG4P1

Part number

Male plug

MBG4P11

ØA

±0.25

B

±0.25

15.08

19.43

22.83

27.94

34.42

21.90

27.25

30.53

35.51

41.91

MBG12P1

MBG12P11

MBG19P1

MBG19P11

MBG30P1

MBG30P11

MBG46P1

Panel mounting male receptacle connector for pin contacts (MBG--R1) - Standard version

Panel mounting female receptacle connector for socket contacts (MBG--R11) - Reversed version

Part number

Male Receptacle

Female Receptacle

MBG4R1

MBG4R11

MBG12R1

MBG12R11

MBG19R1

MBG19R11

MBG30R1

MBG30R11

MBG46R1

MBG46R11

Ø A

±0.25

23.90

32.49

32.44

35.61

42.24

B max.

18.08

26.54

28.65

35.13

C

±0.18

D

±0.30

ØE

±0.18

F max.

29.46

34.93

38.10

43.31

49.61

49

31.45

30.76

34.04

38.00

46.94

37.36

36.86

40.13

44.91

54.05

20.07

24.64

27.86

38.10

39.70

MBG
