800-032-07NF6-4SZ: Description4 CONTACT(S), ALUMINUM ALLOY, FEMALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size163KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

800-032-07NF6-4SZ Overview

4 CONTACT(S), ALUMINUM ALLOY, FEMALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE

800-032-07NF6-4SZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Glenair
Reach Compliance Code	_compli
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM WITH CHROMATE PLATED
Shell material	ALUMINUM ALLOY
Housing size	6
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

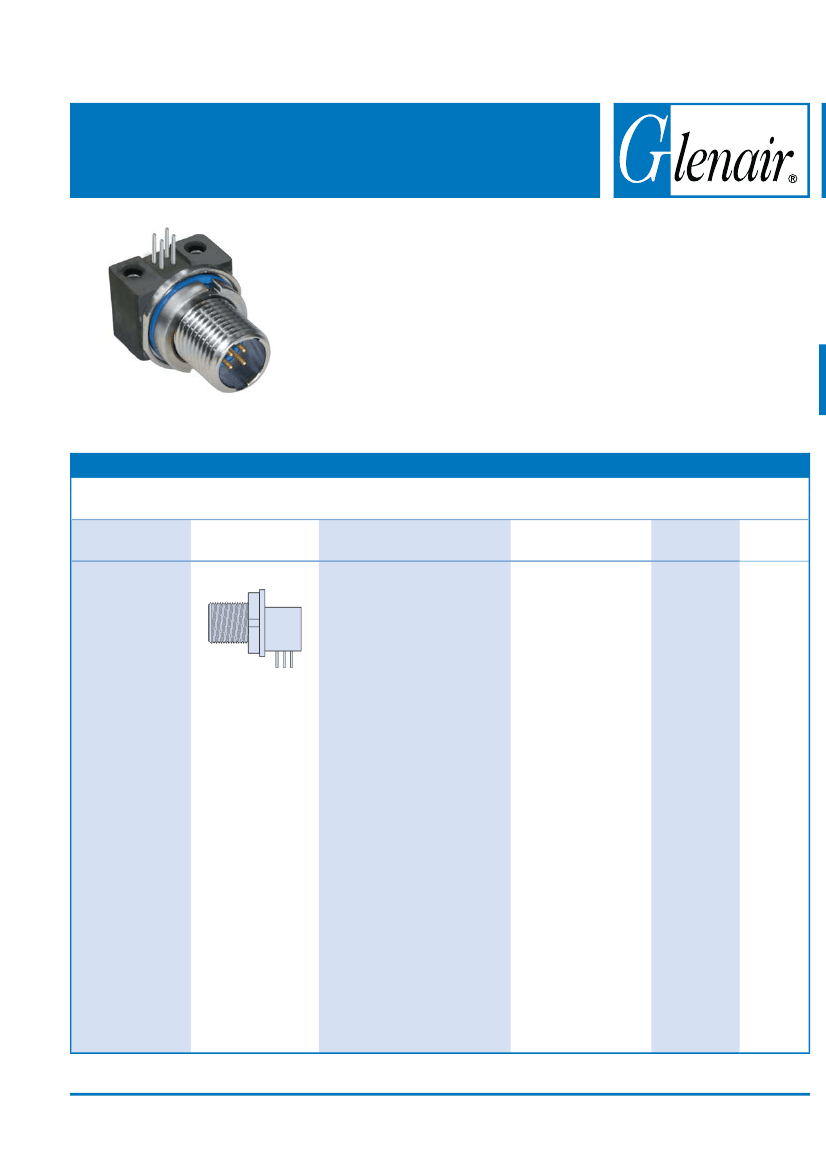

Series 800 “Mighty Mouse” with UN Mating Thread

Right Angle PCB Receptacle Headers

800-032-07

Glenair's right angle 800-032 connectors offer military grade performance in a

small, economical package. Ideal for 100/1000BASE-T or IEEE 1394, these

connectors are rated for MIL-STD-810 Method 512 immersion. Eliminate the

extra labor to install

ﬂ

ex or wire jumpers from your board to conventional mil

spec circular connectors.

•

Right Angle PCB Receptacle

Jam Nut Rear Panel Mounting

Environmentally Sealed

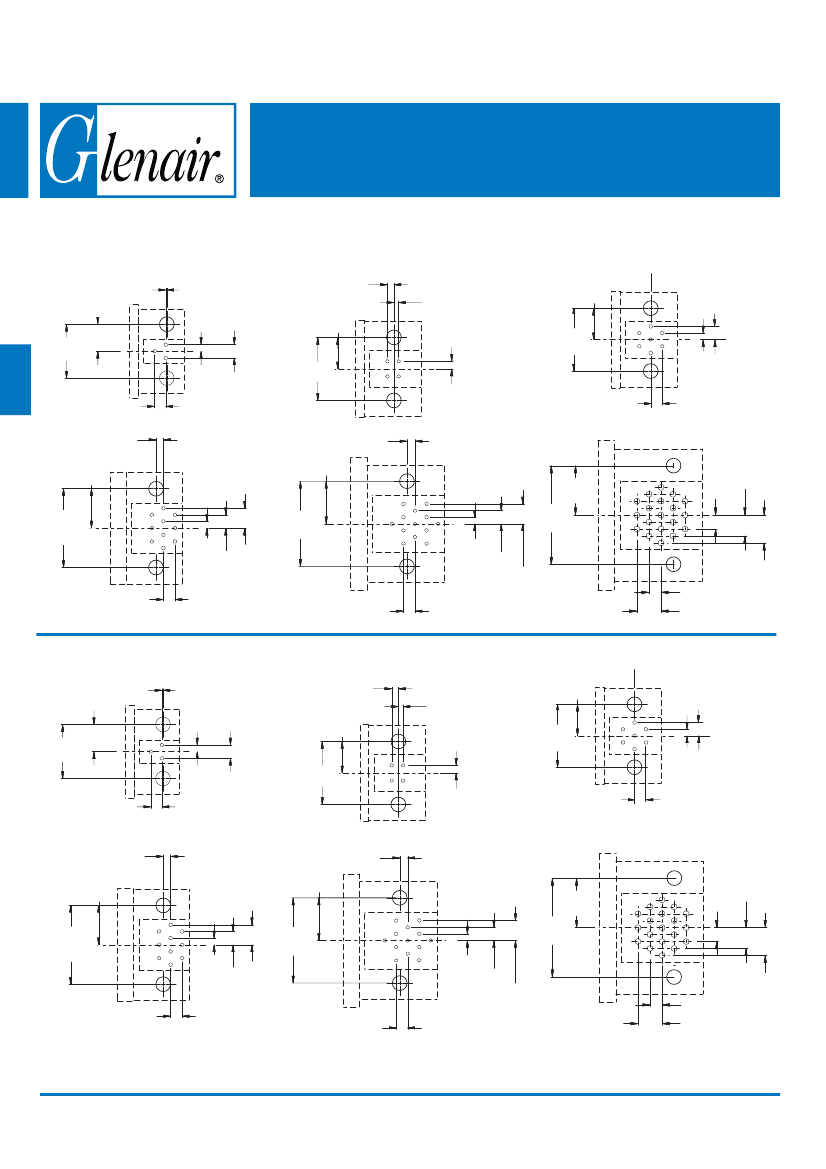

Threaded Board Mounting Holes

HOW TO ORDER SERIES 800 RIGHT ANGLE PCB RECEPTACLES

Sample Part Number

800-032

Series

800-032

PCB Receptacle

-07

Shell Style

Shell Material / Finish

Aluminum / Black Anodize

(Non-Conductive)

RoHS Compliant

Aluminum / Electroless Nickel

RoHS Compliant

7-10

Shell Size- Insert

Arrangement

5-3

6-4

6-7

7-10

8-13

3 #23

4 #23

7 #23

10 #23

13 #23

Contact

Type

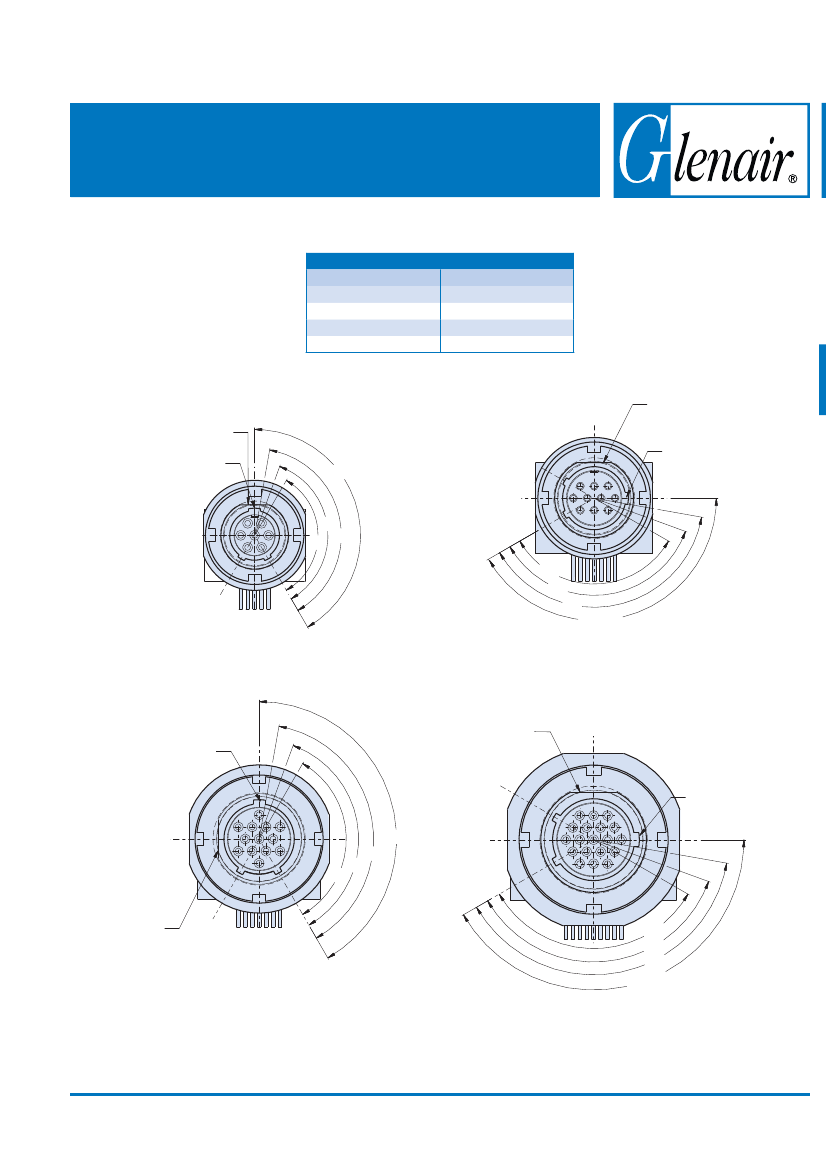

Shell Key

Position

Normal

Pos. X

Pos. Y

Pos. Z

Socket

-07

Jam Nut

Aluminum / Cadmium with Olive

Drab Chromate

Aluminum / Zinc-Nickel with

Olive Drab Chromate

Aluminum / Zinc-Cobalt with

Black Chromate

RoHS Compliant

Aluminum / Zinc-Nickel with

Black Chromate

Aluminum / Nickel-PTFE

RoHS Compliant

Stainless Steel / Passivated

RoHS Compliant

UCR

ZNU

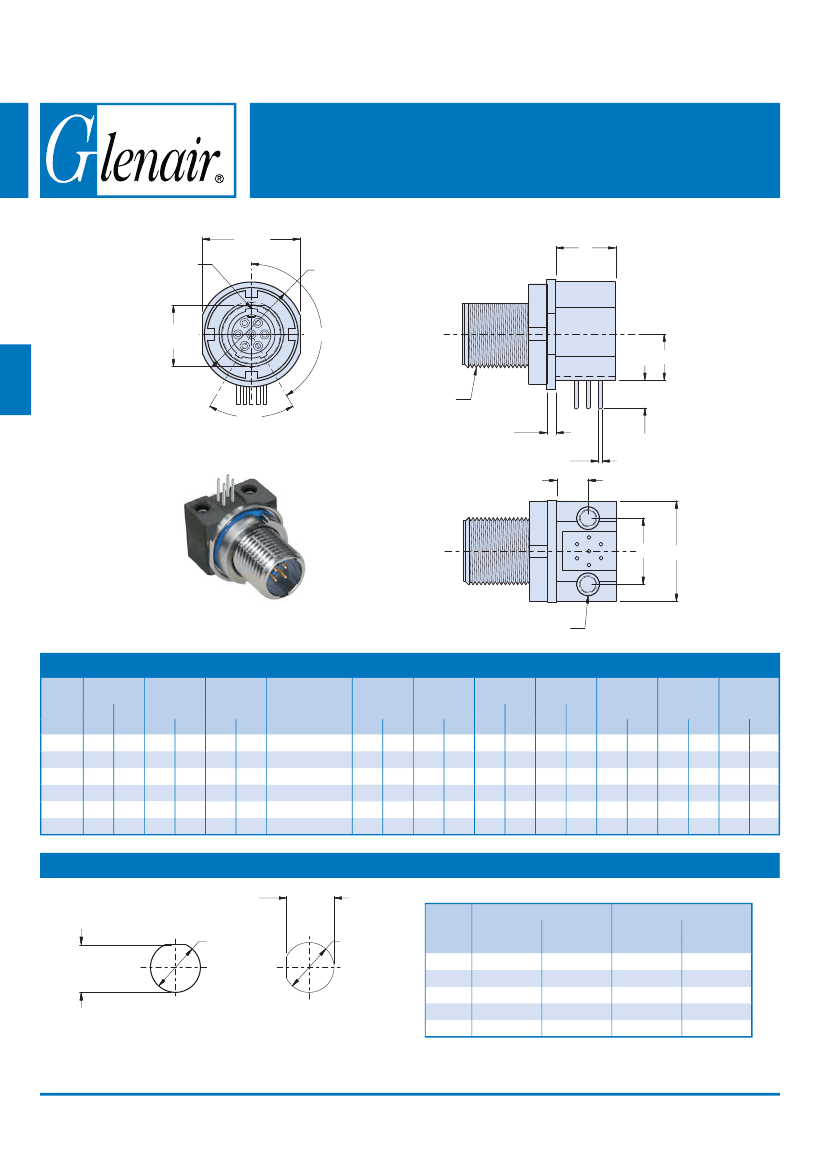

Dimensions in inches (millimeters) and are subject to change without notice.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

C-13

Rev. 01-FEB-2009

E-Mail: sales@glenair.com
