High Frequency
Surface Mount Terminator
RFTF Series
•
Low return loss
•
High power dissipation up to 250W
•
Thin film technology performance, stability long life
IRC Advanced Film Division

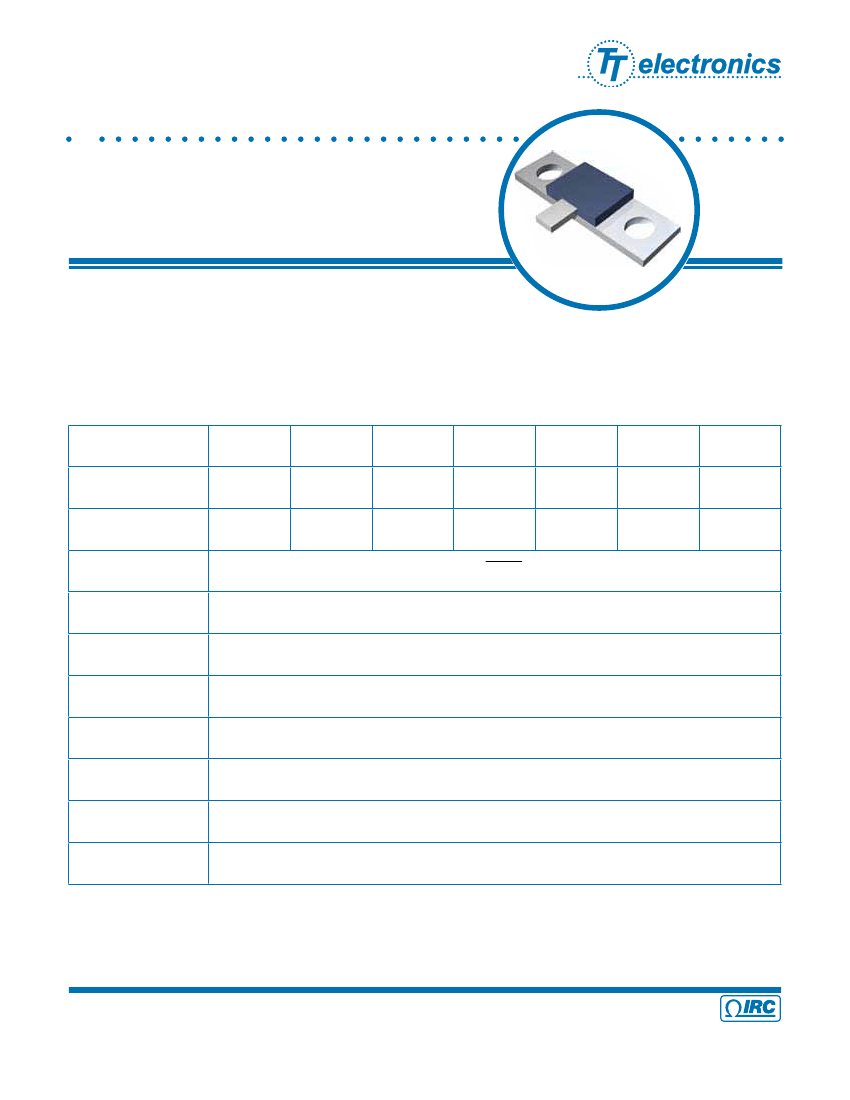

IRC’s RFTF series utilizes the combined benefits flange cooling and
the high thermal conductivity of aluminum nitride (AIN) to provide power
ratings from 10W-250W. This series comes with single-sided or double-sided flanges and single leaded ter-
minal configurations, adding increased RF design flexibility. Typical applications for the RFTF series include
aerospace, wireless communication, satellites, RF power sources and power amplifiers.
Electrical Data
RFTF10
Power Rating
Capacitance
Rated Voltage
Absolute TCR
Frequency Range
Tolerance
Operating
Temperature Range
VSWR
Rated Temperature
Resistance
10W
<0.5pF
RFTF40
40W
<0.5pF
RFTF50
50W
<1.0pF
RFTF100
100W
<1.0pF
PxR
±50ppm/°C
DC to 3GHz
±1%, ±2%, ±5%
-55°C to +155°C
<1.1
-55°C to 155°C
50 , 75 (150 , 200 , 250 , and 300
available)
RFTF120
120W
<1.0pF
RFTF150
150W
<1.0pF
RFTF250
250W
<1.0pF
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
31
A subsidiary of
TT electronics plc
RFTF Series Issue October 2006 Sheet 1 of 4
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
High Frequency
Surface Mount Terminator
Flange Power Terminations

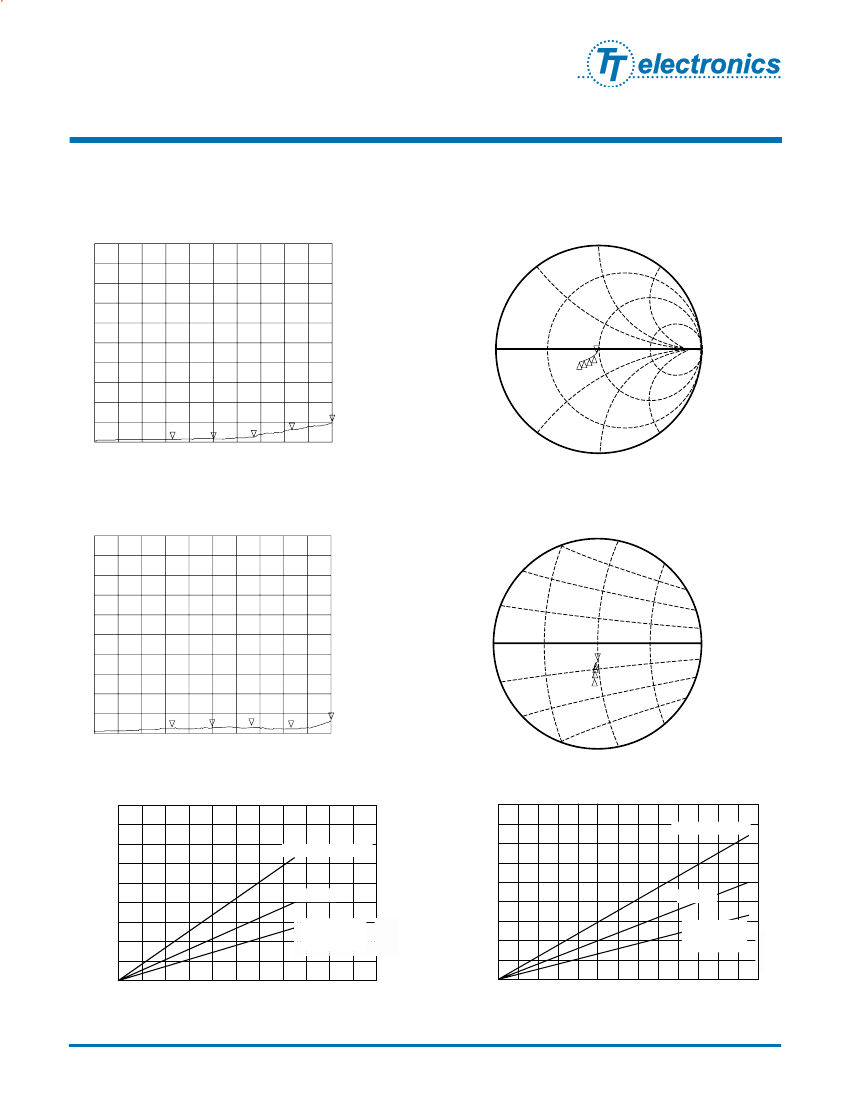

VSWR, RFTF150C, 100 F
CH1
S 11
IRC Advanced Film Division
S11, RFTF150C, 50 F
1 U FS
1:
46.256
W
1 Jul 2004 16:11:56
-5.7969
W
27.472 pF
999. 400 006 MHz
PRm
Cor
2: 42.996
W
-7.7715
W
1.5 GHz
3: 39.316
W
-8.9531
W
2 GHz
↑
1
4: 38.754
W
-9.5934
W
2.5 GHz
5: 32.05
W
-10.006
W
3 GHz
2
543
CENTER 1 500. 015 000 MHz
SPAN 2 999. 970 000 MHz
VSWR, RFTF250C, 50 F
CH1
S 11
S11, RFTF250C, 50 F
213 mU FS
1:
50.25
W
1 Jul 2004 14:22:18
1.0313
W
164.13 pH
1 000. 000 000 MHz
PRm
Cor
2: 49.936
W
-1.3125
W
1.5 GHz
3: 49.68
W
-1.2949
W
2 GHz
↑
1
2
3
4
5
4: 49.174
W
-0.2891
W
2.5 GHz
5: 48.898
W
-2.2656
W
3 GHz
START
.030 000 MHz
STOP 3 000. 000 000 MHz
RFTF150C, 50 F with 0.2K/W Heatsink
180
180
160
140
120
100
80
60
40
20
0
0
20 40 60 80 100 120 140 160 180 200 220
RFTF250C, 50 F with 0.2K/W Heatsink
160
140
120
100
80
60
40
20
0
0 20 40 60 80 00 20 40 60 80 00 220 40 60
2 2
1 1 1 1 1 2
Temperature Rise (C)
Resistive Film
Resistive Film
Flange
Hotspot
on heatsink
Temperature Rise (C)
Flange
Hotspot
on heatsink
Applied Power (W)
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
32
Applied Power (W)
RFTF Series Issue October 2006 Sheet 2 of 4
High Frequency
Surface Mount Terminator

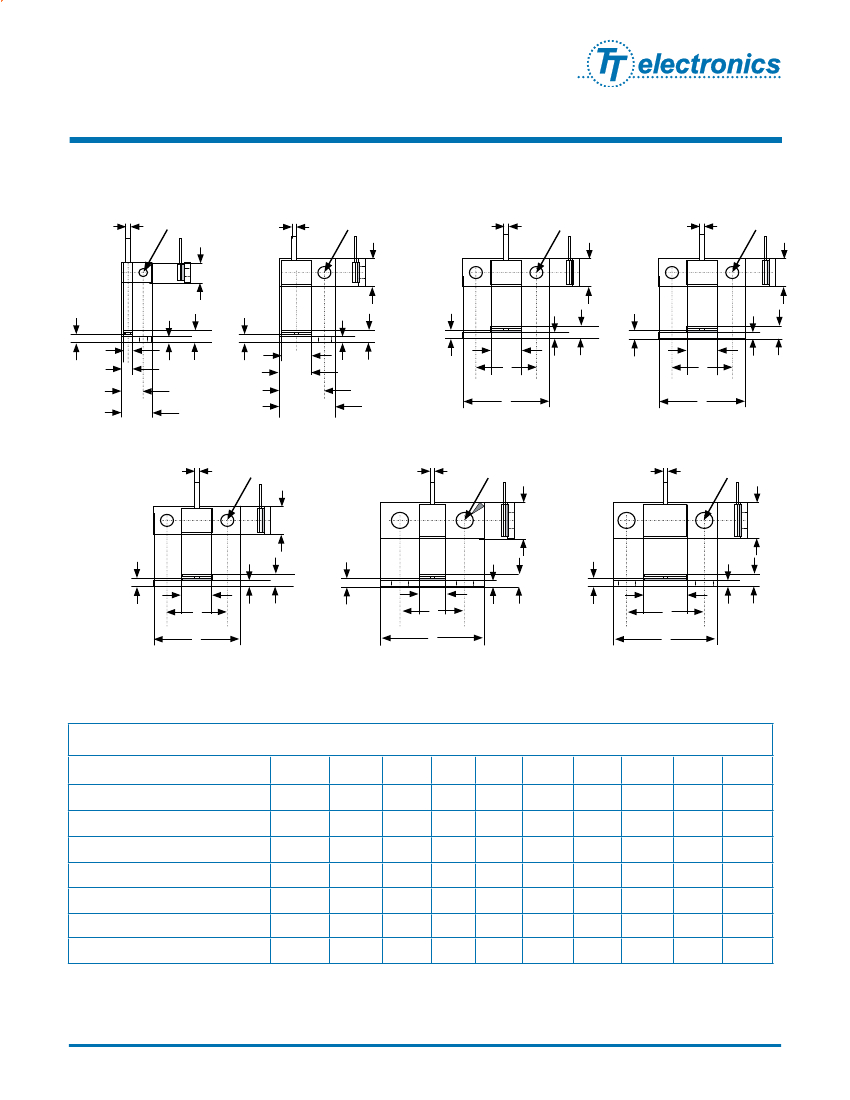

Physical Data
RFTF10
J
G
RFTF40Z
J
G
RFTF50
J
G
IRC Advanced Film Division
RFTF100
J
G
B
B
B
B
K
F
E
D
A
H
C
K
F
E
D
A
H
C
K
F
D
A
H
C
K
F
D
A
H
C
RFTF120
J
G
RFTF150
J
G
RFTF250
J
G
B
B
B
K
F
D
A
H
C
K
F
D
A
H
C
K
F
D
A
H
C
Dimensions (mm)
Type
RFTF10
RFTF40
RFTF50
RFTF100
RFTF120*
RFTF150*
RFTF250
Notes: Lead length 5.08mm. Lead thickness 0.1mm.
A
7.6
13.0
20.3
20.3
20.3
20.3
25.0
B
5.10
6.35
5.70
5.70
6.35
5.70
9.53
C
3.1
3.1
3.1
3.1
3.1
3.1
4.6
D
5.0
9.9
14.2
14.2
14.2
14.2
18.42
E
3.0
–
–
–
–
–
–
F
3.0
6.8
8.5
6.3
8.9
8.5
9.6
G
2.9
2.9
3.2
3.2
3.2
3.2
3.2
H
1.5
1.5
1.5
1.5
1.5
1.5
3.0
J
0.8
0.8
1.5
1.5
0.8
1.5
3.0
K
2.2
2.2
2.6
2.6
2.2
2.6
4.1
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
33
Series Issue October 2006 Sheet 3 of 4
RFTF
High Frequency
Surface Mount Terminator
Power Derating Curve
100
IRC Advanced Film Division
Ordering Data
Prefix
Model
RFTF10; RFTF40Z; RFTF50; RFTF100;
RFTF120; RFTF150; RFTF250
HFR - RFTF100
% of Rated Power
50
10
25°
100°
Flange Temperature (°C)
155°
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
34
RFTFSeries Issue October 2006 Sheet 4 of 4
