800-013-02ZL6-1CX datasheet, PDF

Datasheet> All Categories > The connector> The connector> 800-013-02ZL6-1CX

800-013-02ZL6-1CX: Description1 CONTACT(S), STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size117KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

800-013-02ZL6-1CX Overview

1 CONTACT(S), STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE

800-013-02ZL6-1CX Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	HERMETIC
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	6
Termination type	SOLDER
Total number of contacts	1

Preview

Download Datasheet

View All

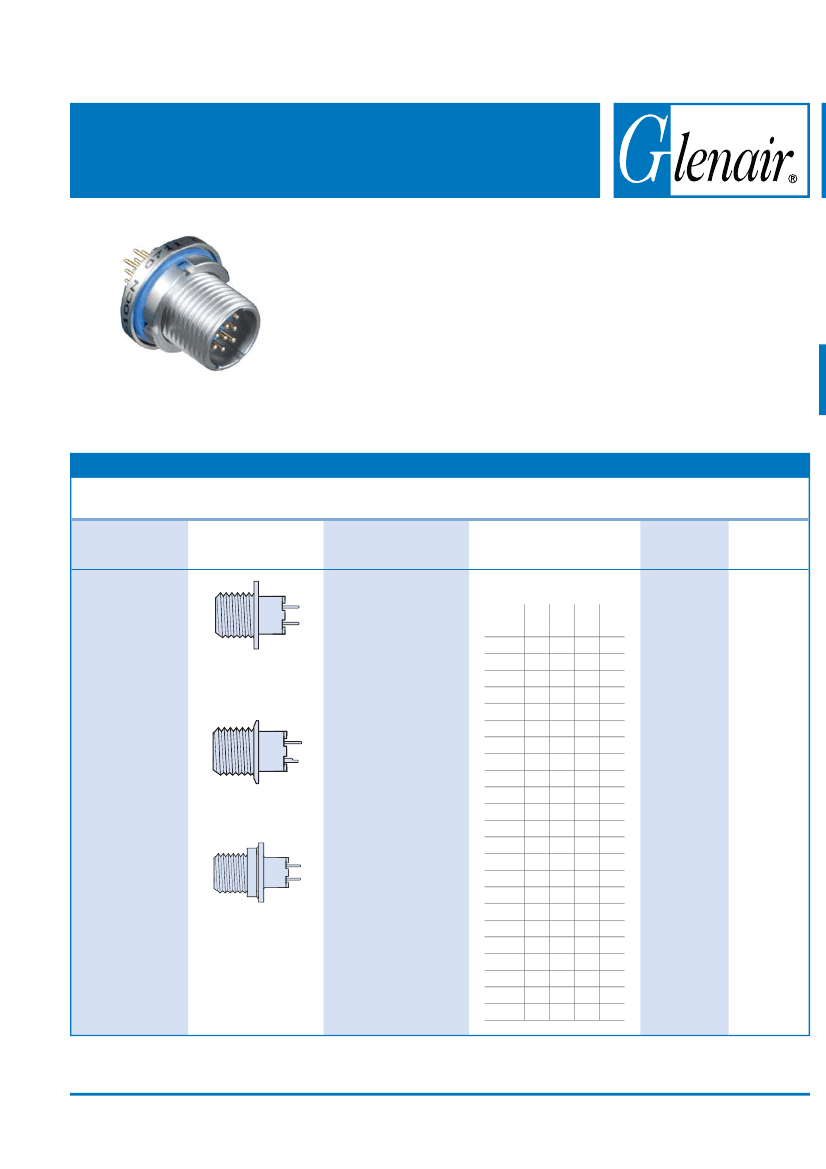

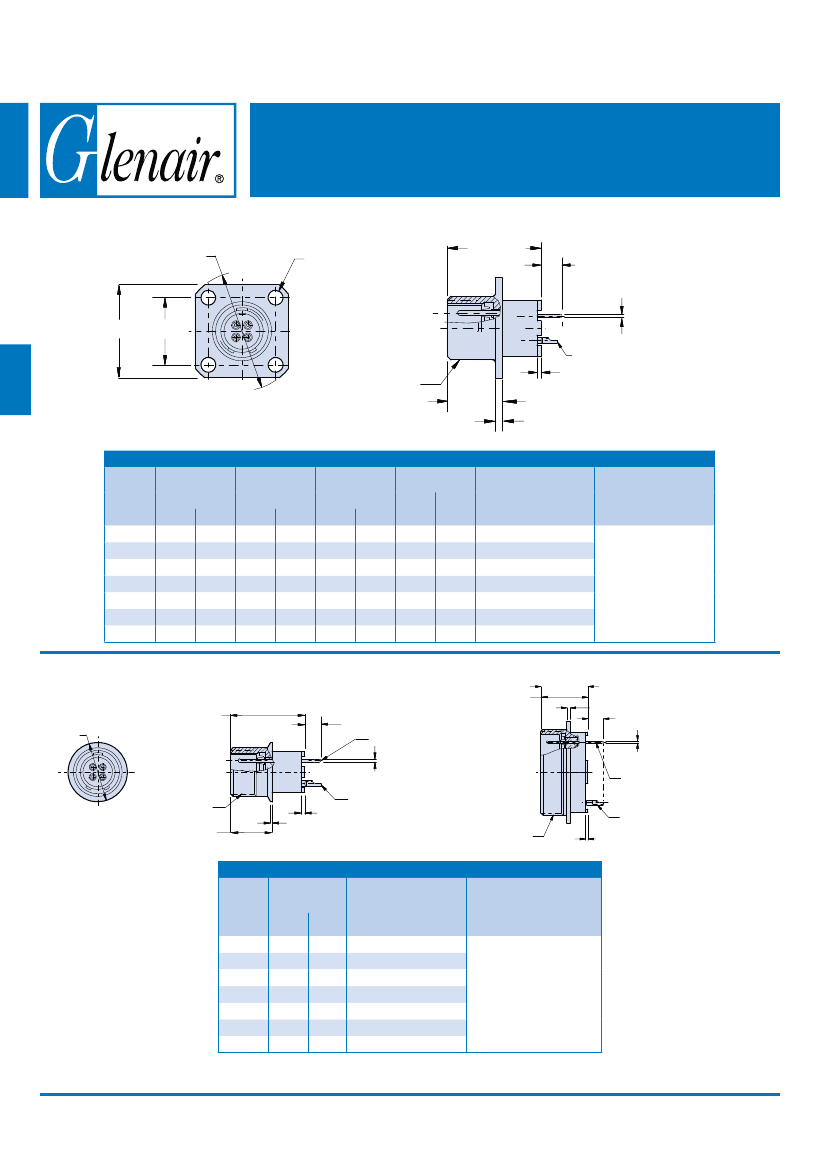

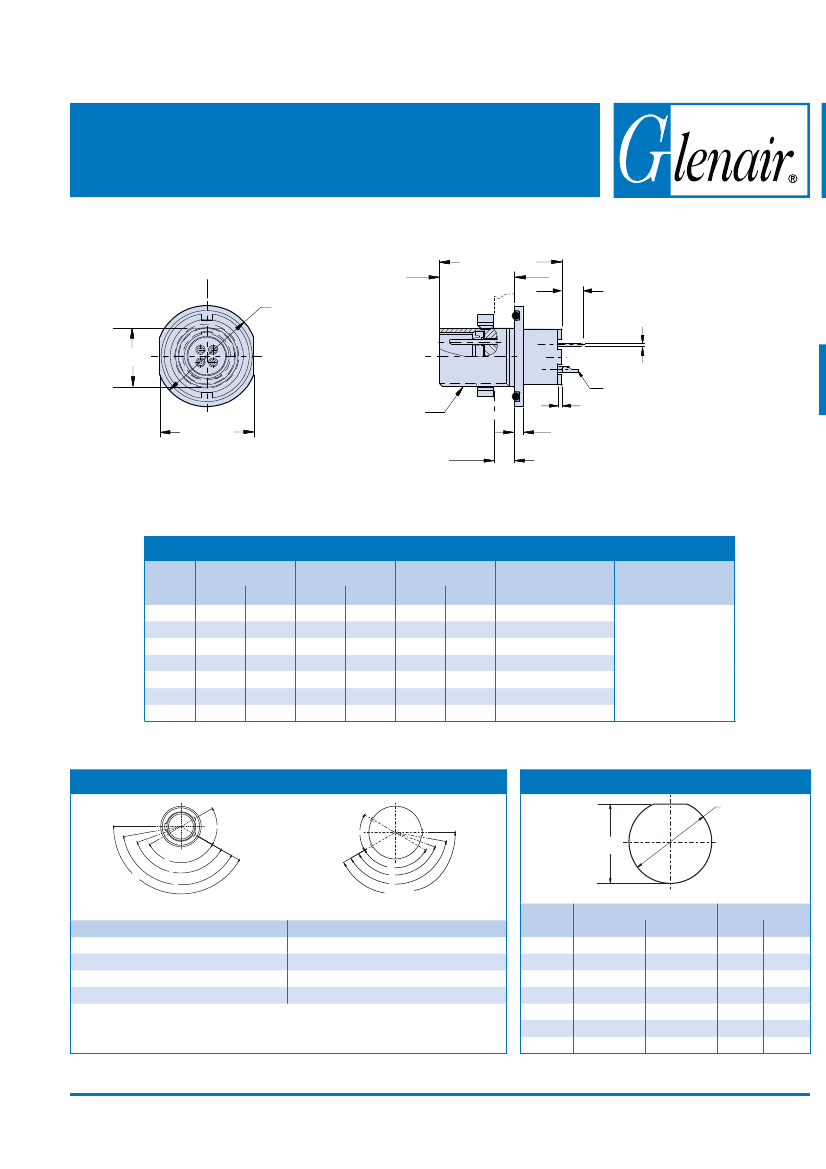

Series 800 “Mighty Mouse” with UN Mating Thread

Hermetic Receptacles

800-013

Series 800 Hermetic Receptacle

Series 800 Hermetic Receptacles

feature 304L stainless steel shells,

fused vitreous glass insulators and

Alloy 52 iron alloy contacts.

1 X 10

-6

cc/second

maximum helium

leak rate.

Three Shell Styles:

solder mount,

jam nut or square

ﬂ

ange.

Solder Cup Contacts

for wire

attachment, or

PC Tail Contacts

for

attachment to

ﬂ

exible or rigid circuits.

Series 800 Hermetic

HOW TO ORDER

Sample Part Number

800-013

Series

800-013

Hermetic

Receptacle

-07

Shell Style

Shell Material /

Finish

7-10

Shell Size- Insert

Arrangement

No. of Contacts

Arr.

Contact

Type

Pin, Solder

Cup

Shell Key

Position

Normal

Stainless Steel /

Passivated

-02

Square Flange

Stainless Steel / Nickel

Plated

-03

Solder Mount

-07

Jam Nut

5-3

6-1

6-4

6-7

7-1

7-10

8-2

8-13

8-200

9-4

9-19

9-200

9-201

10-5

10-26

10-200

10-201

10-202

12-2

12-3

12-7

12-37

12-200

12-201

#23 #20 #16 #12

Pin, PC Tail

Pos. X

Pos. Y

Pos. Z

Dimensions in inches (millimeters) and are subject to change without notice.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

C-17

Rev. 01-FEB-2009

E-Mail: sales@glenair.com
