HM2H08P109LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2H08P109LF

HM2H08P109LF: DescriptionBoard Connector, 125 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM2H08P109LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HM2H08P109LF	-	-	View	Buy Now

HM2H08P109LF Overview

Board Connector, 125 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, ROHS COMPLIANT

HM2H08P109LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.612 inch
subject depth	0.564 inch
body length	1.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	HM2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	125
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

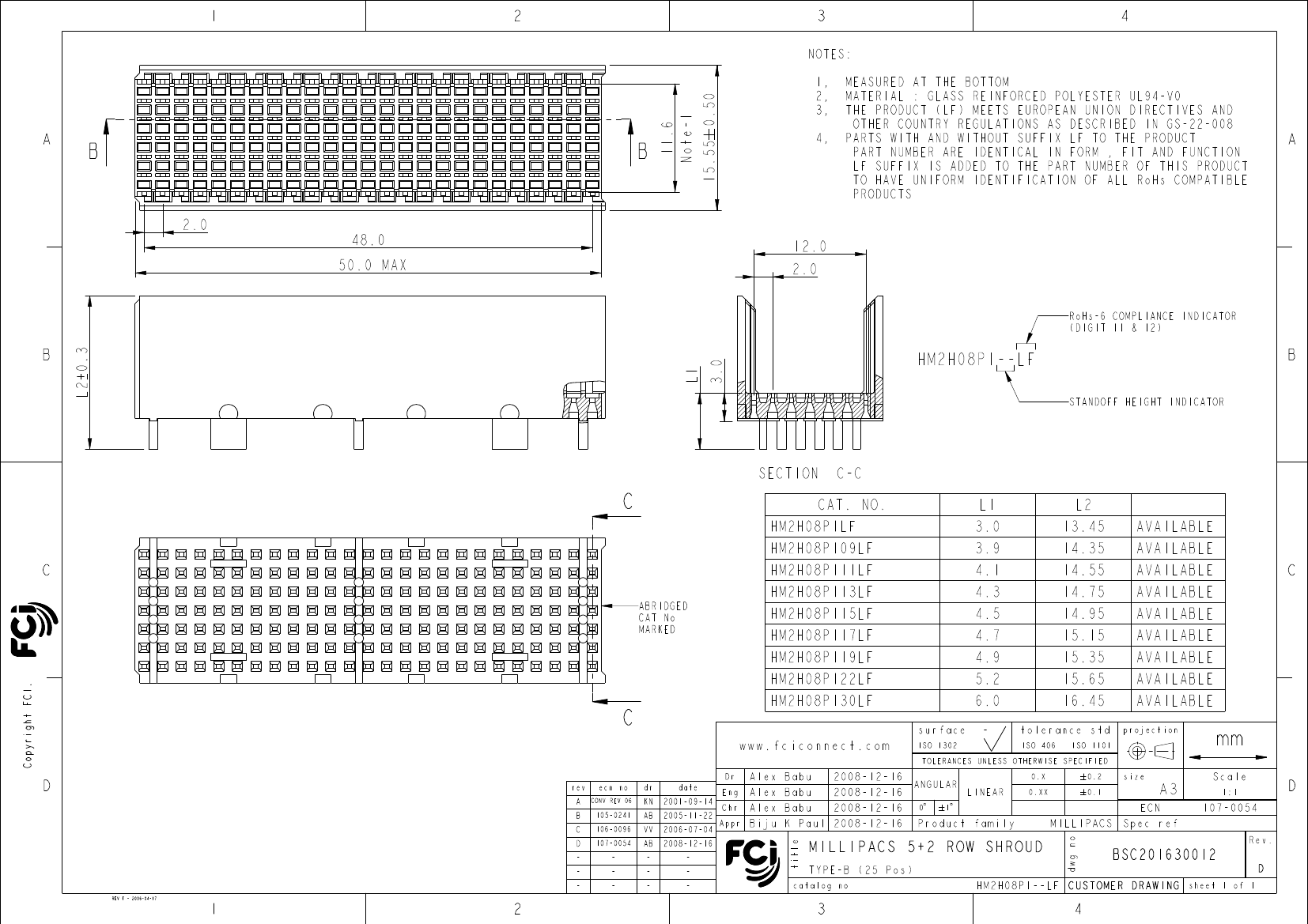

NOTES:

MEASURED AT THE BOTTOM

MATERIAL : GLASS REINFORCED POLYESTER UL94-V0

THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND

OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

PARTS WITH AND WITHOUT SUFFIX LF TO THE PRODUCT

PART NUMBER ARE IDENTICAL IN FORM , FIT AND FUNCTION

LF SUFFIX IS ADDED TO THE PART NUMBER OF THIS PRODUCT

TO HAVE UNIFORM IDENTIFICATION OF ALL RoHs COMPATIBLE

PRODUCTS

15.55 0.50

11.6

Note-1

2.0

48.0

50.0 MAX

12.0

2.0

RoHs-6 COMPLIANCE INDICATOR

(DIGIT 11 & 12)

3.0

L2 ±0.3

HM2H08P1--LF

STANDOFF HEIGHT INDICATOR

SECTION

C-C

CAT. NO.

3.0

3.9

4.1

4.3

4.5

4.7

4.9

5.2

6.0

surface

ISO 1302

ISO 406

ABRIDGED

CAT No

MARKED

13.45

14.35

14.55

14.75

14.95

15.15

15.35

15.65

16.45

tolerance std

ISO 1101

HM2H08P1LF

HM2H08P109LF

HM2H08P111LF

HM2H08P113LF

HM2H08P115LF

HM2H08P117LF

HM2H08P119LF

AVAILABLE

projection

HM2H08P122LF

rev

REV F - 2006-04-17

HM2H08P130LF

www.fciconnect.com

Alex Babu

Biju K Paul

title

Scale

1:1

TOLERANCES UNLESS OTHERWISE SPECIFIED

2008-12-16

ecn no

CONV REV 06

date

2001-09-14

2005-11-22

2006-07-04

2008-12-16

Eng

Chr

Appr

ANGULAR

0.X

0.2

0.1

size

LINEAR

0.XX

ECN

I05-0241

I06-0096

I07-0054

Rev.

Product family

MILLIPACS Spec ref

dwg no

MILLIPACS 5+2 ROW SHROUD

TYPE-B (25 Pos)

BSC201630012

sheet

1 of 1

catalog no

HM2H08P1--LF CUSTOMER DRAWING

PDM: Rev:D

STATUS:

Released

Printed: Jun 24, 2009
