BAS16T: DescriptionSurface Mount Small Signal Switching Diode; Configuration: Single; VRRM Max (V): 85; IAV Max (A): 0.155; VFM Max (V): 1.25; @ IF (A): 0.15; IR Max (UA): 2; @VR (V): 75; TRR Max (NS): 4; Pin: F2; Package: SOT-523; CategoryDiscrete semiconductor diode; File Size233KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BAS16T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS16T	-	-	View	Buy Now

BAS16T Overview

Surface Mount Small Signal Switching Diode; Configuration: Single; VRRM Max (V): 85; IAV Max (A): 0.155; VFM Max (V): 1.25; @ IF (A): 0.15; IR Max (UA): 2; @VR (V): 75; TRR Max (NS): 4; Pin: F2; Package: SOT-523

BAS16T Parametric

Parameter Name	Attribute value
Parts packaging code	SOT-523
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.155 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.15 W
Maximum repetitive peak reverse voltage	85 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

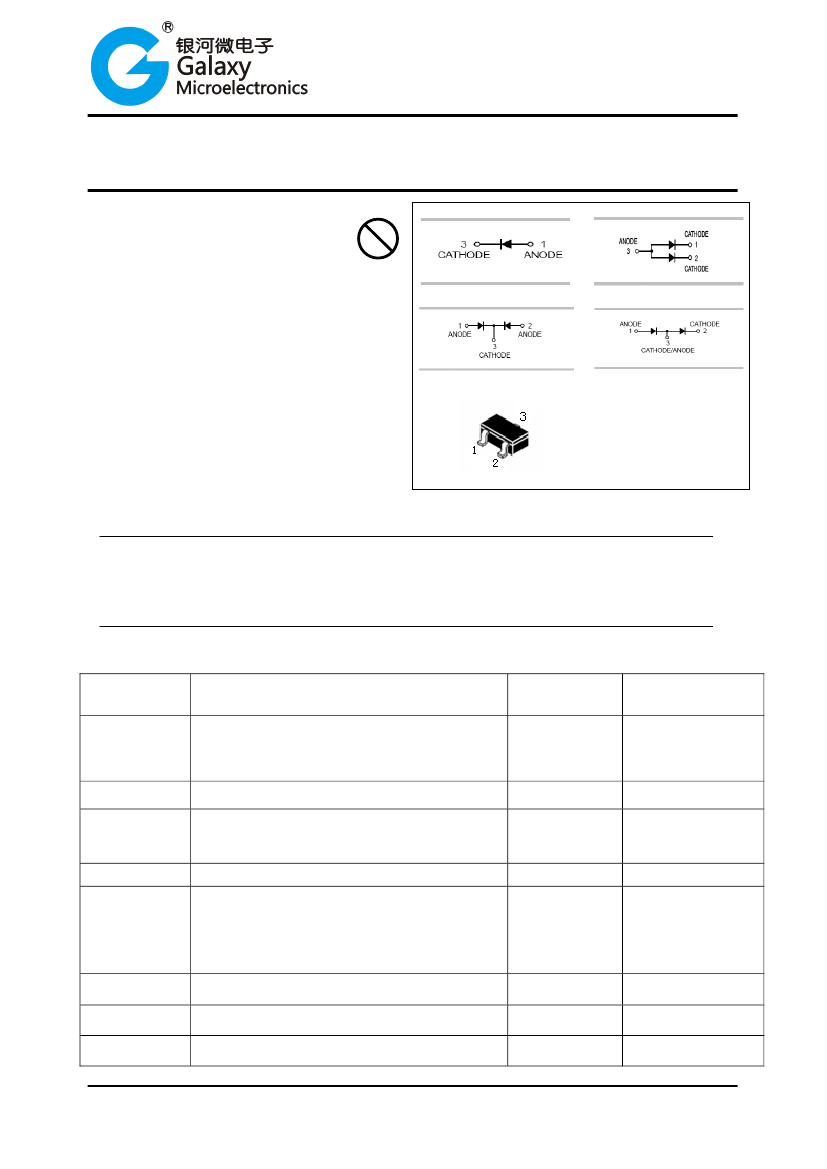

Production specification

Surface Mount Fast Switching Diode

BAS16T/BAV70T/BAW56T/BAV99T

FEATURES

Ultra-Small surface mount package.

Fast switching speed.

For general purpose switching

appilications.

High conductance.

BAV70T

BAV99T

Pb

BAS16T

BAW56T

Lead-free

APPLICATIONS

General purpose switching application.

SOT-523

ORDERING INFORMATION

Type No.

BAS16T

BAW56T

BAV70T

BAV99T

Marking

A2

JD

JJ

JE

Package Code

SOT-523

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Symbol

V

RRM

V

RWM

V

R

V

R(RMS)

I

F

I

FRM

Parameter

Peak repetitive reverse voltage

Working peak reverse voltage

DC reverse voltage

RMS reverse voltage

Forward continuous voltage

Repetitive peak forward current

Non-repetitive peak forward surge current

@t=1.0μs

@t=1.0ms

@t=1.0s

Power dissipation

Thermal resistance junction to ambient

Junction and Storage Temperature

single diode

double diode

Value

Units

85

60

155

75

500

4.0

1.0

0.5

150

833

-65 to +150

V

mA

I

FSM

A

P

d

R

θJA

T

j,

T

stg

H002

Rev.A

mW

℃/W

℃

www.gmesemi.com

1

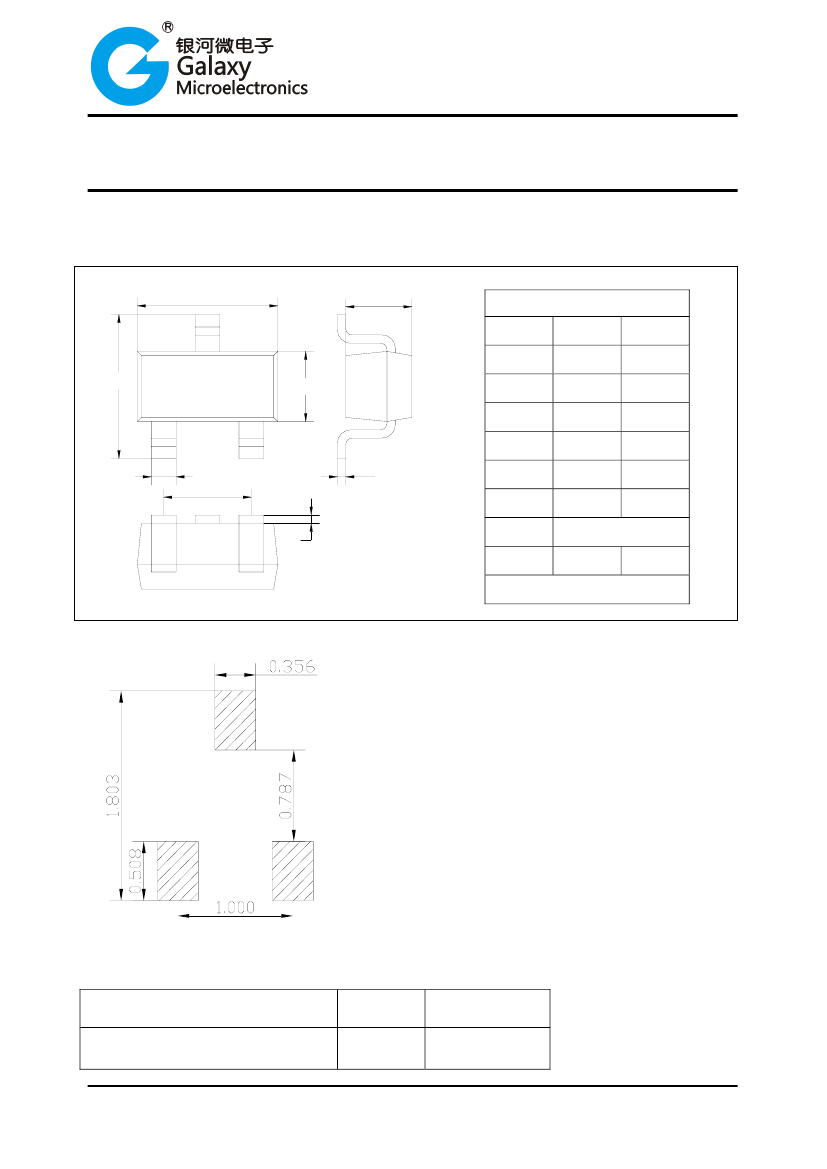

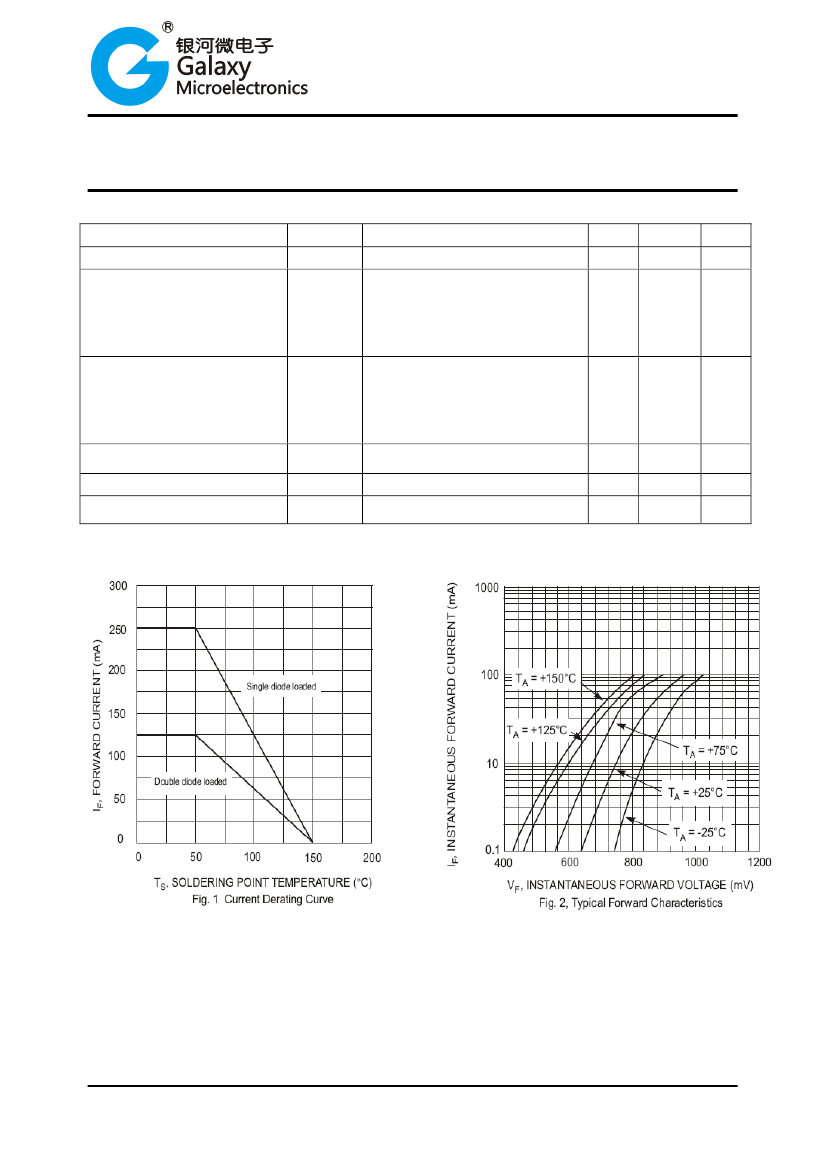

BAS16T Related Products

	BAS16T	BAV70T	BAV99T	BAW56T
Description	Surface Mount Small Signal Switching Diode; Configuration: Single; VRRM Max (V): 85; IAV Max (A): 0.155; VFM Max (V): 1.25; @ IF (A): 0.15; IR Max (UA): 2; @VR (V): 75; TRR Max (NS): 4; Pin: F2; Package: SOT-523	Surface Mount Small Signal Switching Diode; Configuration: Dual,Common Cathode; VRRM Max (V): 85; IAV Max (A): 0.075; VFM Max (V): 1.25; @ IF (A): 0.15; IR Max (UA): 2; @VR (V): 75; TRR Max (NS): 4; Pin: F8; Package: SOT-523	Surface Mount Small Signal Switching Diode; Configuration: Dual,Series; VRRM Max (V): 85; IAV Max (A): 0.075; VFM Max (V): 1.25; @ IF (A): 0.15; IR Max (UA): 2; @VR (V): 75; TRR Max (NS): 4; Pin: F6; Package: SOT-523	Surface Mount Small Signal Switching Diode; Configuration: Dual,Common Anode; VRRM Max (V): 85; IAV Max (A): 0.075; VFM Max (V): 1.25; @ IF (A): 0.15; IR Max (UA): 2; @VR (V): 75; TRR Max (NS): 4; Pin: F9; Package: SOT-523
Parts packaging code	SOT-523	SOT-523	SOT-523	SOT-523
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	SINGLE	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	2	2	2
Number of terminals	3	3	3	3
Maximum output current	0.155 A	0.155 A	0.155 A	0.155 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W
Maximum repetitive peak reverse voltage	85 V	85 V	85 V	85 V
Maximum reverse recovery time	0.004 µs	0.004 µs	0.004 µs	0.004 µs
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum operating temperature	150 °C	150	150 °C	150 °C
Minimum operating temperature	-65 °C	-65	-65 °C	-65 °C
Base Number Matches	1	1	1	-
Maker	-	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
