74HC595DTR2G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC595DTR2G

74HC595DTR2G: DescriptionHC/UH SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16; Categorylogic logic; File Size153KB，13 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

74HC595DTR2G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74HC595DTR2G	-	-	View	Buy Now

74HC595DTR2G Overview

HC/UH SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16

74HC595DTR2G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP16,.25
Contacts	16
Reach Compliance Code	unknown
Factory Lead Time	1 week
Counting direction	RIGHT
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	5 mm
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Maximum Frequency@Nom-Sup	4000000 Hz
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	2/6 V
propagation delay (tpd)	210 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Trigger type	POSITIVE EDGE
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

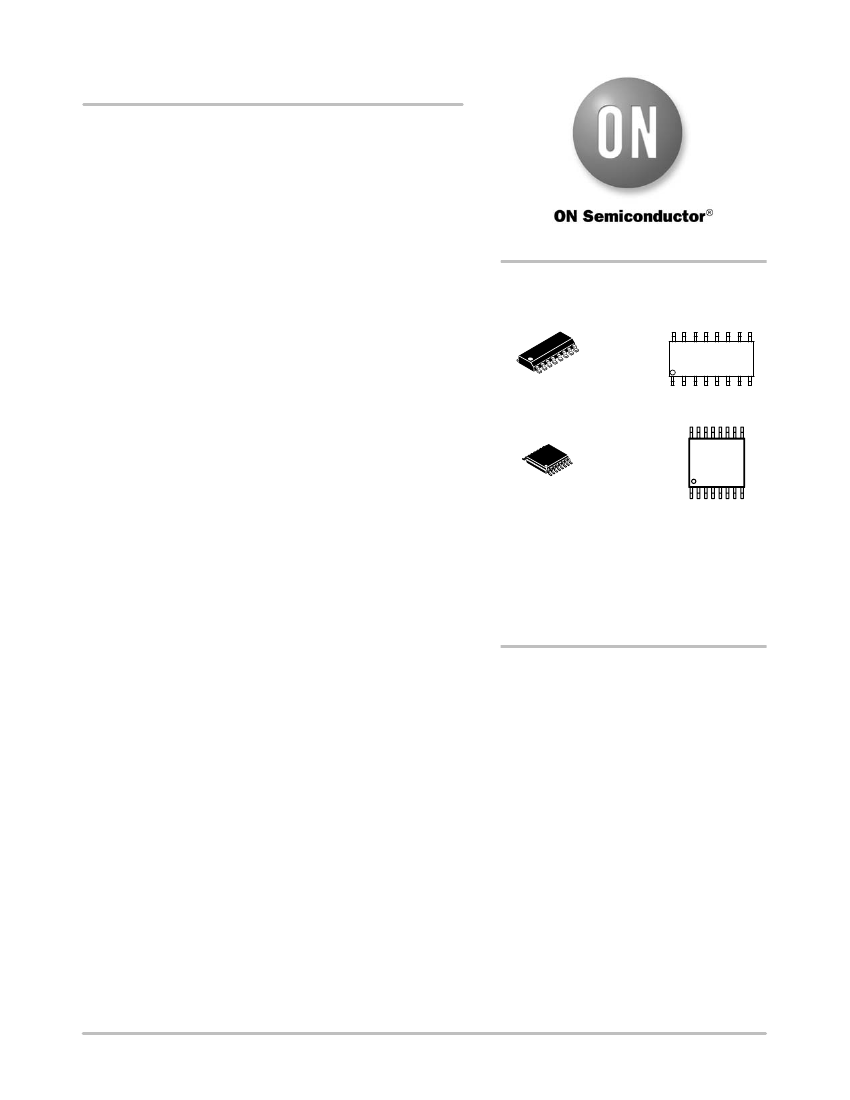

74HC595

8−Bit Serial−Input/Serial or

Parallel−Output Shift

3−State Outputs

High−Performance Silicon−Gate CMOS

The 74HC595 consists of an 8−bit shift register and an 8−bit D−type

latch with three−state parallel outputs. The shift register accepts serial

data and provides a serial output. The shift register also provides

parallel data to the 8−bit latch. The shift register and latch have

independent clock inputs. This device also has an asynchronous reset

for the shift register.

The HC595 directly interfaces with the SPI serial data port on

CMOS MPUs and MCUs.

Features

http://onsemi.com

MARKING

DIAGRAMS

SOIC−16

D SUFFIX

CASE 751B

TSSOP−16

DT SUFFIX

CASE 948F

595

ALYW

HC595G

AWLYWW

•

Output Drive Capability: 15 LSTTL Loads

Outputs Directly Interface to CMOS, NMOS, and TTL

Operating Voltage Range: 2.0 to 6.0 V

Low Input Current: 1.0

High Noise Immunity Characteristic of CMOS Devices

In Compliance with the Requirements Defined by JEDEC

Standard No. 7A

ESD Performance: HBM

2000 V; Machine Model

200 V

Chip Complexity: 328 FETs or 82 Equivalent Gates

Improvements over HC595

−

Improved Propagation Delays

−

50% Lower Quiescent Power

−

Improved Input Noise and Latchup Immunity

These are Pb−Free Devices

HC595 = Device Code

= Assembly Location

L, WL

= Wafer Lot

Y, YY

= Year

W, WW = Work Week

G or

= Pb−Free Package

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

Semiconductor Components Industries, LLC, 2007

March, 2007

−

Rev. 1

Publication Order Number:

74HC595/D
