D50S24B6PA00 |
D50S24B4PA00 |
| Description |

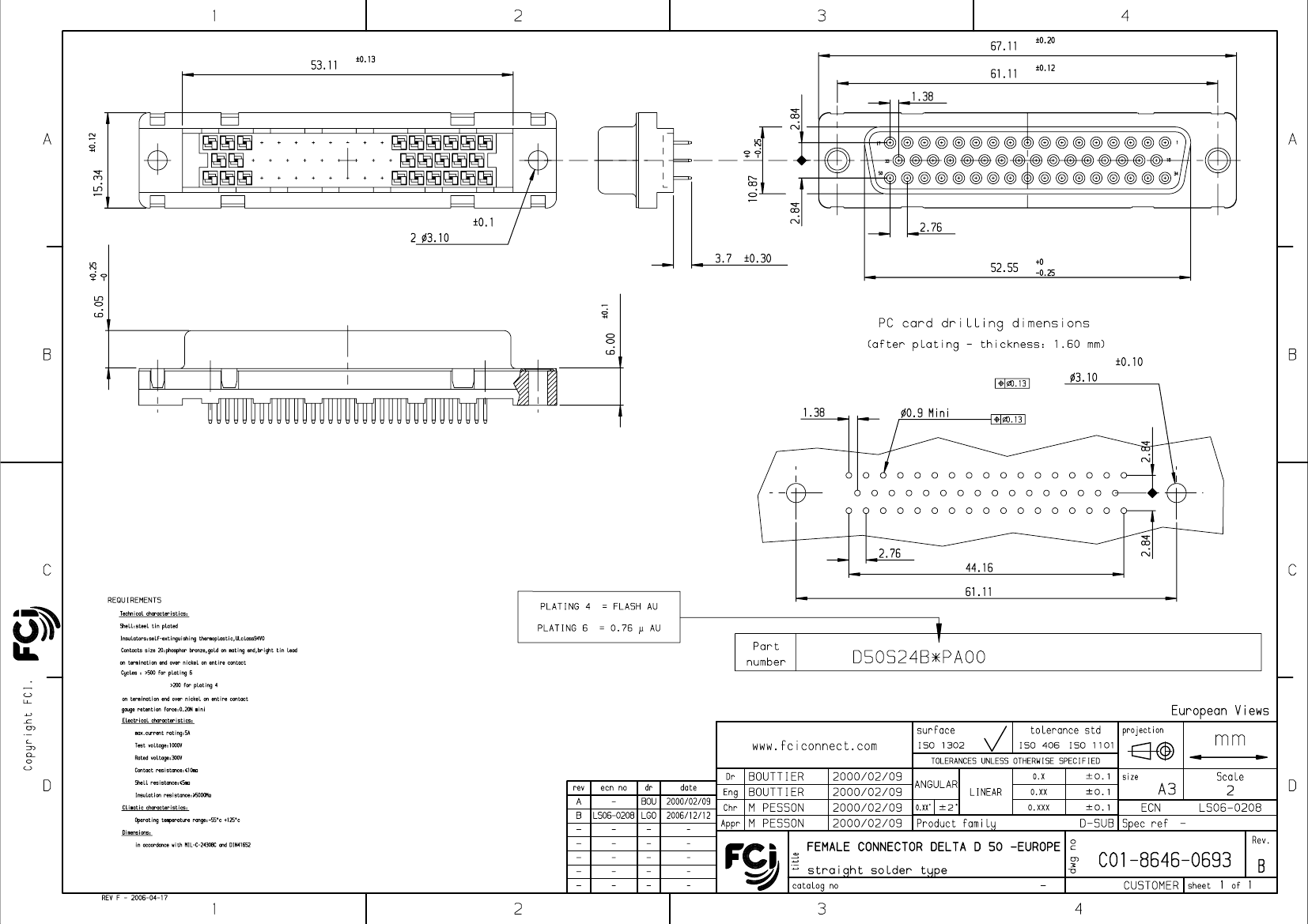

D Subminiature Connector, 50 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking |
D Subminiature Connector, 50 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking |
| Reach Compliance Code |
compliant |
compliant |
| body width |
0.604 inch |
0.604 inch |
| subject depth |
0.236 inch |
0.236 inch |
| body length |
2.642 inch |
2.642 inch |
| Connector type |
D SUBMINIATURE CONNECTOR |
D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation |
AU ON NI |
AU ON NI |
| Contact completed and terminated |
TIN OVER NICKEL |
TIN OVER NICKEL |
| Contact point gender |
FEMALE |
FEMALE |
| Contact material |
PHOSPHOR BRONZE |
PHOSPHOR BRONZE |
| contact mode |
STAGGERED |
STAGGERED |
| Contact resistance |
10 mΩ |
10 mΩ |
| Contact style |
RND PIN-SKT |
RND PIN-SKT |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
1400VAC V |
1400VAC V |
| empty shell |
NO |
NO |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| maximum insertion force |
4.8928 N |
4.8928 N |
| Insulation resistance |
5000000000 Ω |
5000000000 Ω |
| insulator material |
POLYETHYLENE |
POLYETHYLENE |
| MIL compliance |
NO |
NO |
| Manufacturer's serial number |
D50 |
D50 |
| Plug contact pitch |
0.109 inch |
0.109 inch |
| Match contact row spacing |
0.112 inch |
0.112 inch |
| Mixed contacts |
NO |
NO |
| Installation option 1 |
LOCKING |
LOCKING |
| Installation method |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
| PCB row number |
3 |
3 |
| Number of rows loaded |
3 |
3 |
| Maximum operating temperature |
125 °C |
125 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
STAGGERED |
STAGGERED |
| PCB contact row spacing |
2.8448 mm |
2.8448 mm |
| Plating thickness |
30u inch |
FLASH inch |
| Rated current (signal) |
5 A |
5 A |
| Guideline |
UL |
UL |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Shell surface |
TIN |
TIN |
| Shell material |
STEEL |
STEEL |
| Housing size |
5/D |
5/D |
| Terminal length |
0.114 inch |
0.114 inch |
| Terminal pitch |
2.7686 mm |
2.7686 mm |
| Termination type |
SOLDER |
SOLDER |
| Total number of contacts |
50 |
50 |
| UL Flammability Code |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
.3058 N |
.3058 N |
| Base Number Matches |
1 |
1 |
