D25S13A6GL00LF datasheet, PDF - EEWORLD Datasheet

D25S13A6GL00LF: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Socket, LEAD FREE; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

D25S13A6GL00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D25S13A6GL00LF	-	-	View	Buy Now

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Socket, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
body width	0.531 inch
subject depth	0.577 inch
body length	2.088 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	M3
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Housing size	3/B
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	.3058 N
Base Number Matches	1

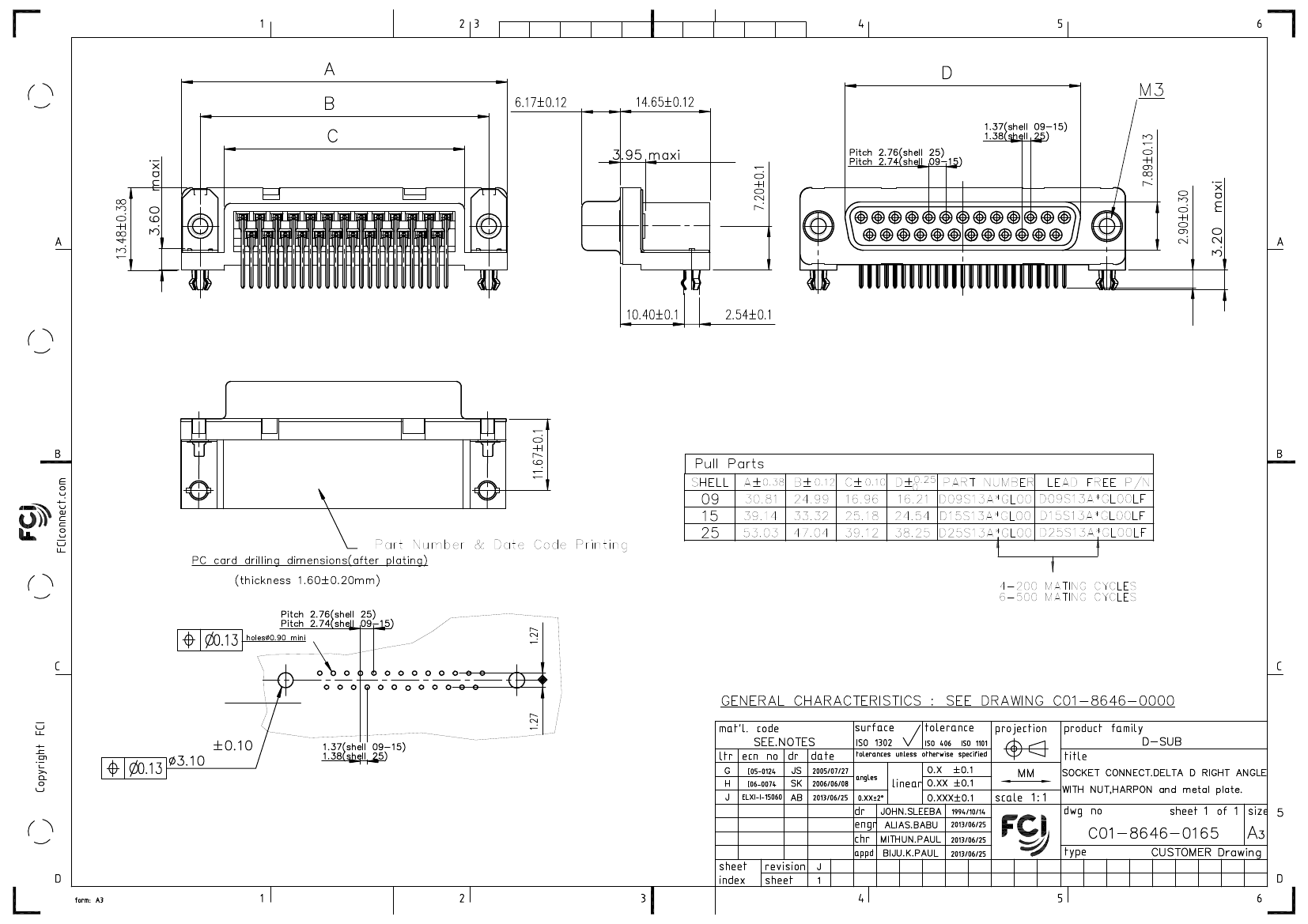

PDS: Rev :J

STATUS:Released

Printed: Jul 16, 2013
