74650-2513: Description150 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size604KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

74650-2513 Overview

150 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

74650-2513 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	25 SHIELD CONTACTS IN 2 ROWS, POLARIZED
body width	0.85 inch
subject depth	0.484 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD (60) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	74650
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of rows loaded	8
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.2606 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	150
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

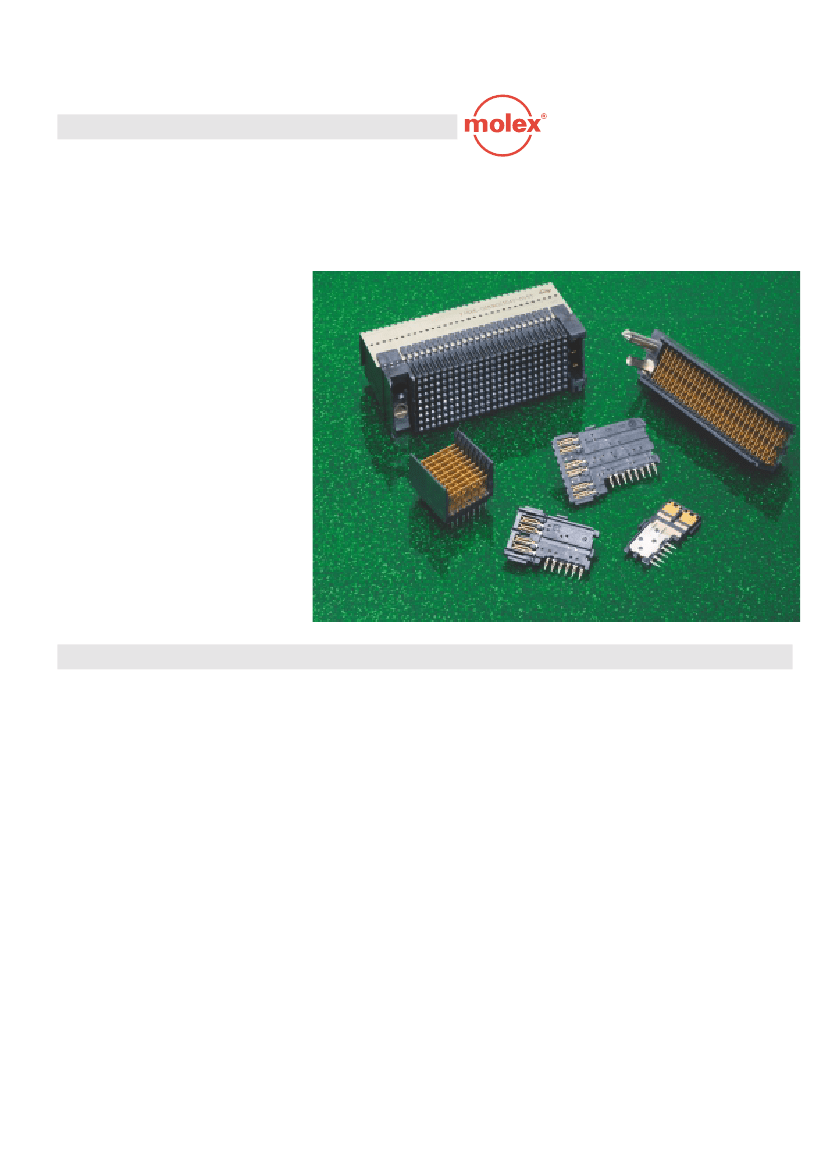

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Up to 5.0 Gbps bandwidth per signal pair enables

state-of-the-art system design and performance

2.00 by 2.25mm (.079 by .089”) pitch provides real

signal density of 10 differential pairs for 5-row and

6-row and 15 differential pairs for 8-row per

centimeter (25 and 38 pairs respectively per inch)

Minimum distance between daughtercards:

– 5-row system offers 15.00mm (.591")

– 6-row system offers 18.00mm (.709")

– 8-row system offers 22.00mm (.866")

Ground planes between signal columns provide

tightly controlled impedance for rise times down to

50 picoseconds (10-90%). This ensures very low

cross talk between signals within and between

columns

Ground pins are in the same grid as signal pins,

allowing wider channels for PCB routing and traces

up to 0.25mm (.010”) wide

6-row or 8-row VHDM-HSD wafers can be applied to

the same stiffener as standard VHDM

6-row or 8-

row wafers. The combination of VHDM and VHDM-

HSD wafers, grouped together in the same stiffener,

provides cost effective solutions to different

performance parameters

2.00 by 2.25mm

(.079 by .089") Pitch

5-Row, 6-Row and 8-Row

VHDM-HSD

™

Module-to-Backplane

Connector System

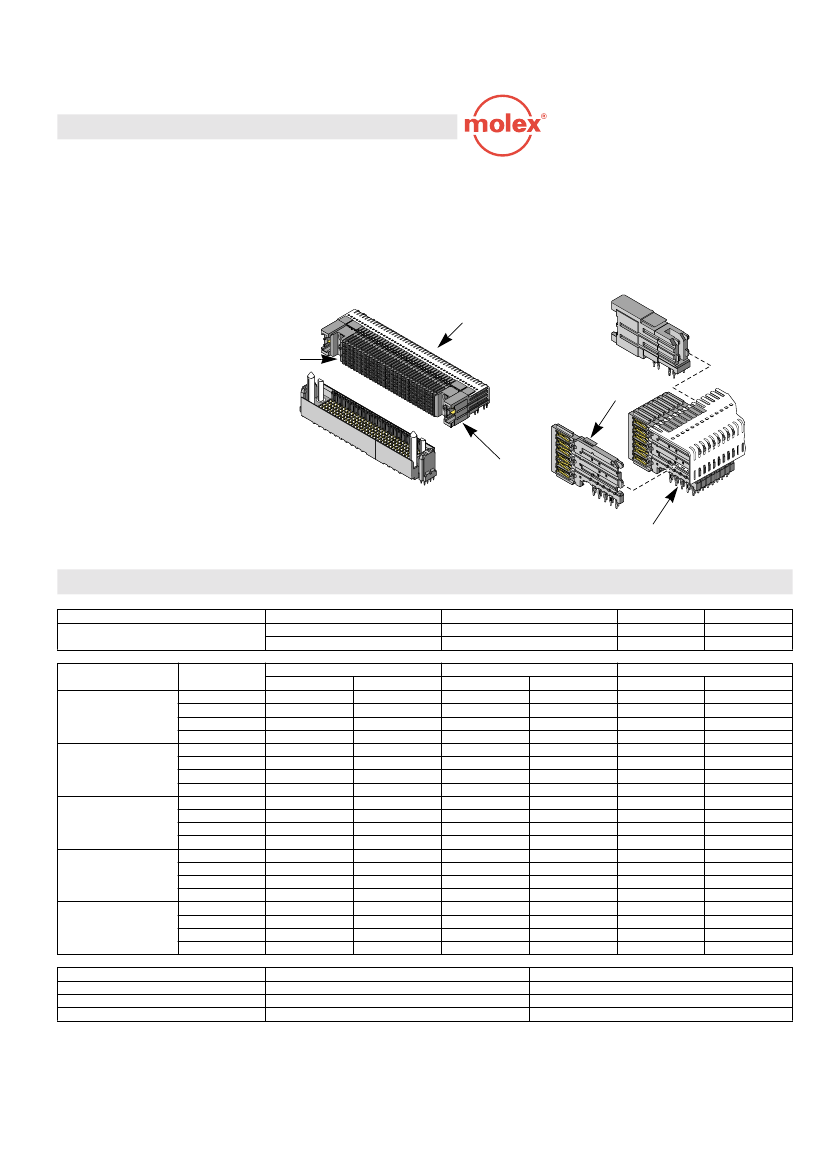

The daughtercard connector consists of a metal stiffener

just as with the VHDM system. The system combines the

signal wafers, power modules and guidance modules

into one continuous connector that can be ordered as a

single speciﬁc part number. The card pitch of the VHDM-

HSD 8-row system is the same as the standard VHDM 8-

row system, allowing both signal wafer types for single

ended and differential pair to be used together. This

The same great modularity features and components of

modularity and design ﬂexibility allow engineers to

VHDM are provided in the VHDM-HSD. The 5-row and 6-

incorporate both connector systems on the same

row systems feature 2 signal pairs per column and the

platforms. The system is based on a 2.00mm (.079")

8-row system features 3 signal pairs per column in

pitch and includes vertical and right angle products that

increments of 10 and 25 columns. All circuits are

can be conﬁgured up to 2000 circuits. The maximum

utilized as signal circuits without the need to use some as

length of a daughtercard connector on a single stiffener

ground circuits.

is 300mm (12").

The Very High Density Metric High Speed Differential

(VHDM-HSD) connector system has been expanded to

include 5-row, 6-row and 8-row daughtercard and

backplane modules. VHDM-HSD is designed for

differential-pair architecture applications that require

very high interconnect density and signal integrity in a

single-ended conﬁguration.

The backplane connectors feature headers with open

ends for continuous side-to-side stacking and headers

with guide pins and polarizing keys on either end to aid

in proper alignment of the mating daughtercard. The

power modules occupy just a small width and hold

sequentially matable pins that each manage 10.0 amps

of current.

Molex offers application tooling for pressing VHDM-HSD

connectors into PCBs as separate modules or as complete

assemblies. VHDM-HSD cable assemblies are also

available for connecting backplane headers to high-

performance cables.

Note: VHDM and VHDM-HSD are trademarks or registered trademarks of Teradyne,Inc.
