FEATURES AND SPECIFICATIONS
0.50mm (.020") Pitch
LaneLink™ 4X Cable Assemblies
74527
SAS
74530
SATA I/O
LaneLink™ assemblies feature sturdy jack-screw hardware to guarantee secure mating
The new 4X Serial Attached SCSI (SAS) and Serial ATA
These 4X SAS and SATA I/O assemblies complement
(SATA) cable assemblies are the latest addition to
the broad line of Molex’s LaneLink offerings. The
Molex’s extensive LaneLink product line. Molex’s
following list details Molex’s extensive LaneLink
superior design and engineering along with state-of-
product line:
the-art manufacturing combine to provide a solution
I
4X InfiniBand Latch Cable Assembly (Series 74506)
for all external, 4X SAS and SATA Input/Output (I/O)
I
4X 10GBASE-CX4 Latch Cable Assembly (Series
applications.
74526)
I
4X and 12X InfiniBand Latch Receptacle (Series
LaneLink 4X SAS and SATA I/O cable assemblies are
91804)
designed and engineered to meet the architecture set
I
4X and 12X InfiniBand Jackscrew Receptacle
forth by the T10 SCSI specification. The standard
(Series 91803)
specifies a high-speed, point-to-point technology,
initially designed to operate at speeds up to 3 Gbps,
with a roadmap to operate at 12 Gbps. Customer
protocol requirements determine which assembly is
used, as both designs are identical.
With storage requirements escalating and becoming
more complex, factors such as larger capacity, greater
density, security, scalability and accessibility are more
critical than ever. Enterprise solutions are recognizing
increasing pressure for substantial capacity,
performance, lower failure rates and greater choice of
components. SAS and SATA I/O solutions meet these
demands while providing the highest performance
available.
Molex is an active member of the SCSI and SATA trade
associations. LaneLink 4X assemblies have been
accepted by multiple standards groups, or Multi-Source
Agreement (MSA) groups, including the T10 SCSI
specification, SAS, SATA I/O, 4X and 12X InfiniBand*,
10 Gigabit Ethernet and 10 Gigabit Fibre Channel.
Features and Benefits
I
Sturdy jackscrew hardware provides user with
guaranteed mating with the PCB connector
I
Molex offers a total system solution providing an
industry standard compatible interface with 4X
mating connectors
SPECIFICATIONS
Reference Information
Mates With: 91803-XXXX (jackscrew)
Designed In: Millimeters
Electrical
Voltage: 30V AC per contact
Current: 0.5A per contact
Contact Resistance: 80 ohms
Dielectric Withstanding Voltage: 300V min. DC
Insulation Resistance: 1000 Megohms minimum
between adjacent contacts
Mechanical
Mating Force: 55.5N (12.36 lbf.)
Unmating Force: 49.0N (11.02 lbf.)
Durability: 250 cycles
Physical
Housing: Zinc die-cast
Contact: Gold flash over Nickel plating
Plating: Contact Area – Nickel
Solder Tail Area – Nickel allover
Underplating – Gold flash over Paladium Nickel
Operating Temperature: -20 to + 85°C

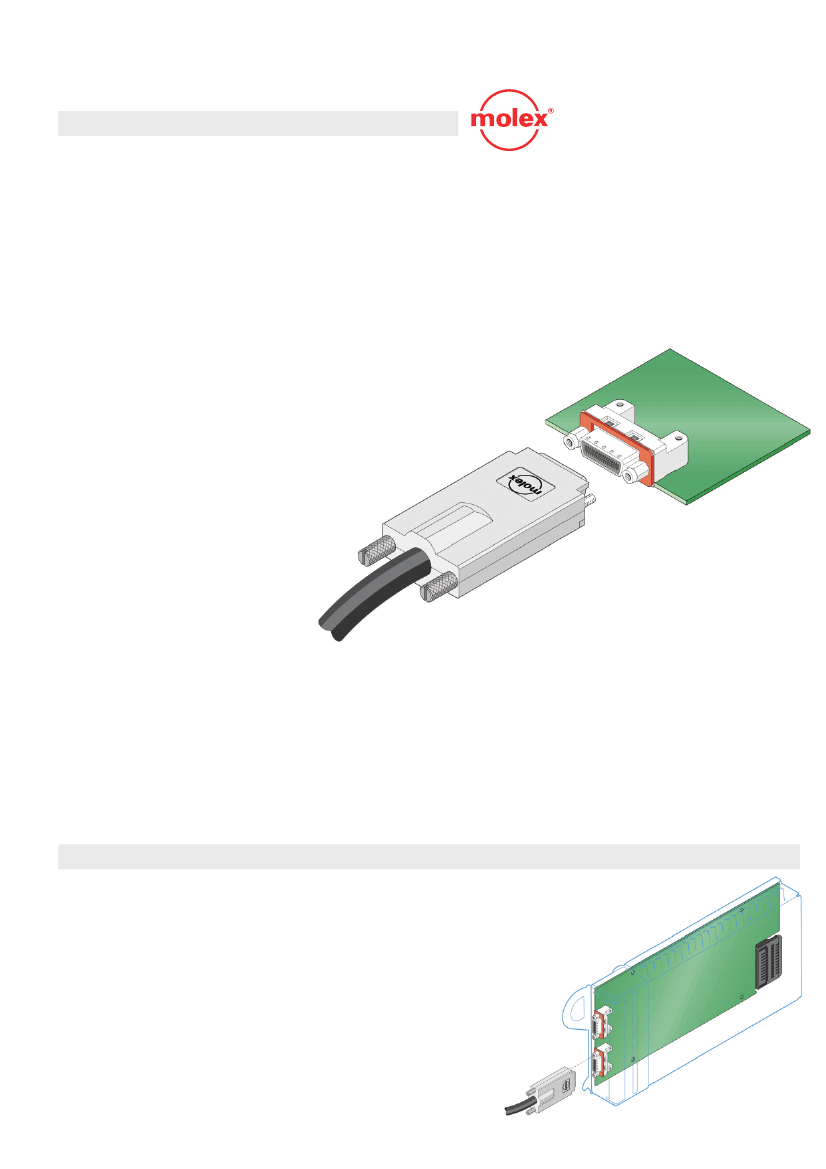

SAS (series 74527) cable assembly mating to 4X jackscrew receptacle (series 91803)
I
High performance production test rack provides
100% eye pattern testing to SAS and SATA I/O
standards
I
Break-out cables (SAS to SATA) provide an
external-to-internal connection
I
LaneLink assemblies are SFF-8470 compliant to
meet industry specifications
*InfiniBand is a registered trademark of the InfiniBand Trade Association
APPLICATIONS
0.50mm (.020") Pitch
LaneLink™ 4X Cable Assemblies
74527
SAS
74530
SATA I/O
I
Server storage applications
- Network Interface Cards (NIC) and Host Bus
Adapters (HBA), routers and servers, storage racks
- Redundant Array of Integrated Discs (RAID) devices
I
Industry standard organizations:
- 4X and 12X InfiniBand
- 10 Gigabit Ethernet
- 10 Gigabit Fibre Channel
- T10 SCSI/SAS
- T13 SATA
- SFF Committee

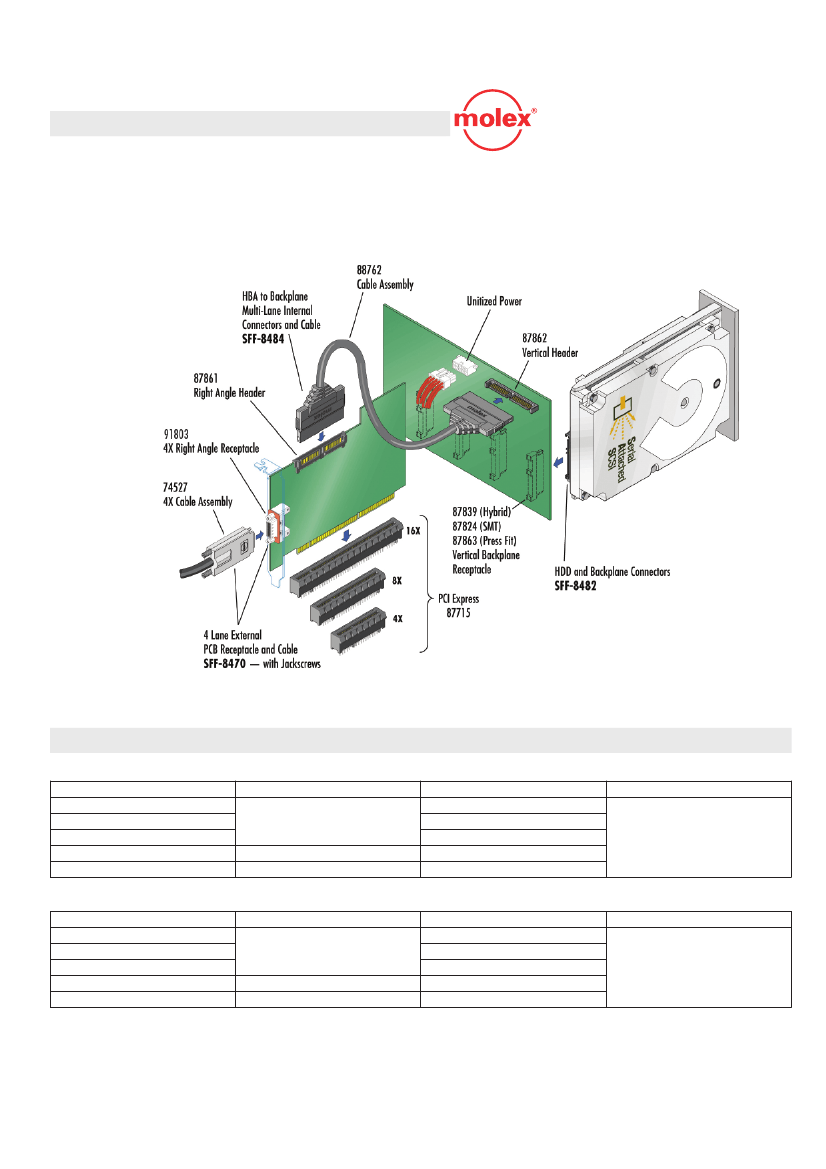

Complete end-to-end solution available from Molex; controller card to backplane to SAS or SATA drive
ORDERING INFORMATION
SAS Cable Assemblies (74527)
Order No.
74527-3001
74527-3002
74527-3004
74527-3006
74527-3008
26 AWG
24 AWG
28 AWG
Wire Size
Cable Length
0.50m (1.64’)
1.00m (3.28’)
3.00m (9.84’)
5.00m (16.40’)
7.00m (22.97’)
SAS
Specification
SATA I/O Cable Assemblies (74530)
Order No.
74530-0001
74530-0002
74530-0003
74530-0004
74530-0005
26awg
24awg
28awg
Wire Size
Cable Length
0.50m (1.64’)
1.00m (3.28’)
3.00m (9.84’)
5.00m (16.40’)
7.00m (22.97’)
SATA I/O cables
Specification
Americas Headquarters
Lisle, Illinois 60532 U.S.A.
1-800-78MOLEX
amerinfo@molex.com
Far East North Headquarters
Yamato, Kanagawa, Japan
81-462-65-2324
feninfo@molex.com
Far East South Headquarters
Jurong, Singapore
65-6-268-6868
fesinfo@molex.com
European Headquarters
Munich, Germany
49-89-413092-0
eurinfo@molex.com
Corporate Headquarters
2222 Wellington Ct.
Lisle, IL 60532 U.S.A.
630-969-4550
Fax:630-969-1352
Visit our Web site at http://www.molex.com/product/io/lanelink.html
Order No. USA-309
Printed in USA/JI/2005.05
©2005 Molex
