MSCC-0105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MSCC-0105

MSCC-0105: DescriptionAC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, MODULE-9; CategoryPower/power management The power supply circuit; File Size138KB，3 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric View All

MSCC-0105 Overview

AC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, MODULE-9

MSCC-0105 Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	MODULE-9
Contacts	9
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V
Minimum input voltage	90 V
Nominal input voltage	100 V
JESD-30 code	R-XDMA-X9
length	95.8 mm
Number of functions	1
Output times	1
Number of terminals	9
Maximum output voltage	25.44 V
Minimum output voltage	22.56 V
Nominal output voltage	24 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	25.65 mm
surface mount	NO
technology	HYBRID
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum total power output	10 W
Fine-tuning/adjustable output	NO
width	54.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

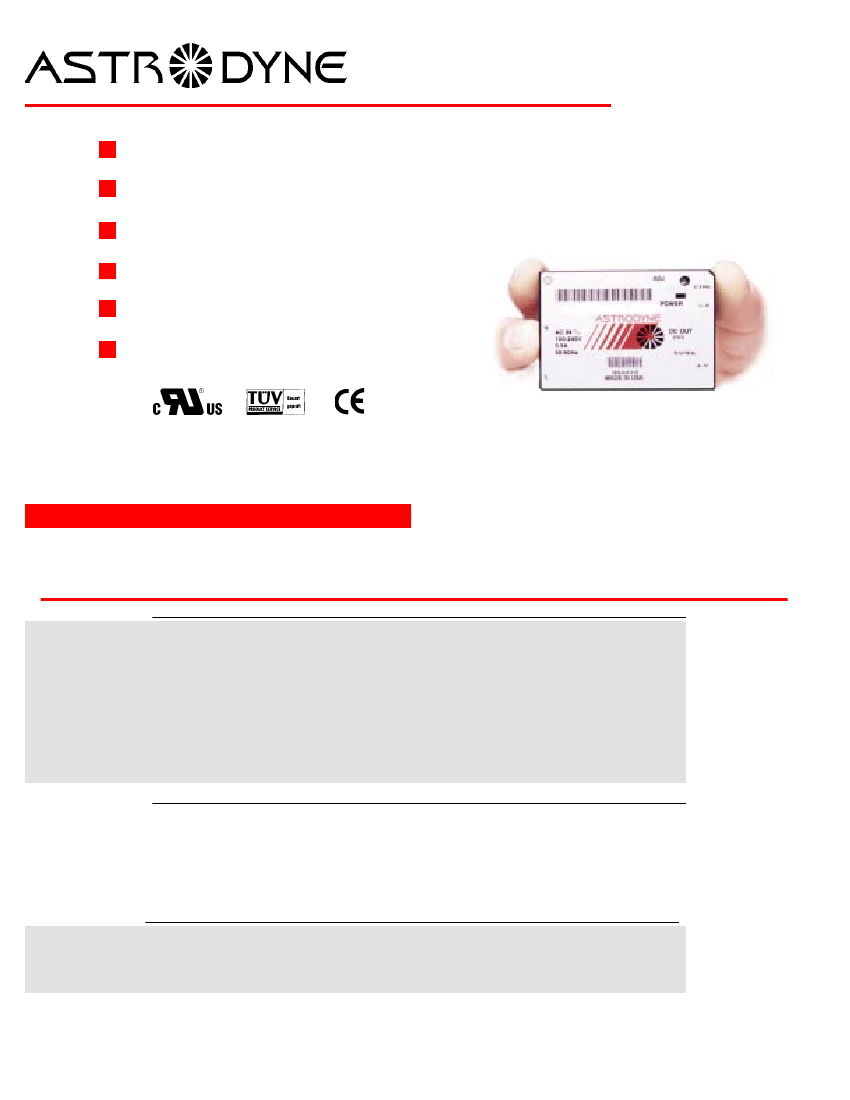

10 WATT

Ultraminiature

Modular Switching Power Supplies

Single / Dual / Triple Outputs

Universal 85VAC to 265VAC Input

3.3VDC to 24VDC Outputs

3,000VAC Input to Output Isolation

PCB and Chassis Mount Packages

Full Safety Approvals

MCA-10 Series

Fully Approved

IEC-950, EN60950, UL1950

CSA22.2-950

UL File# E167432, TUV File# B 95 06 22749 002

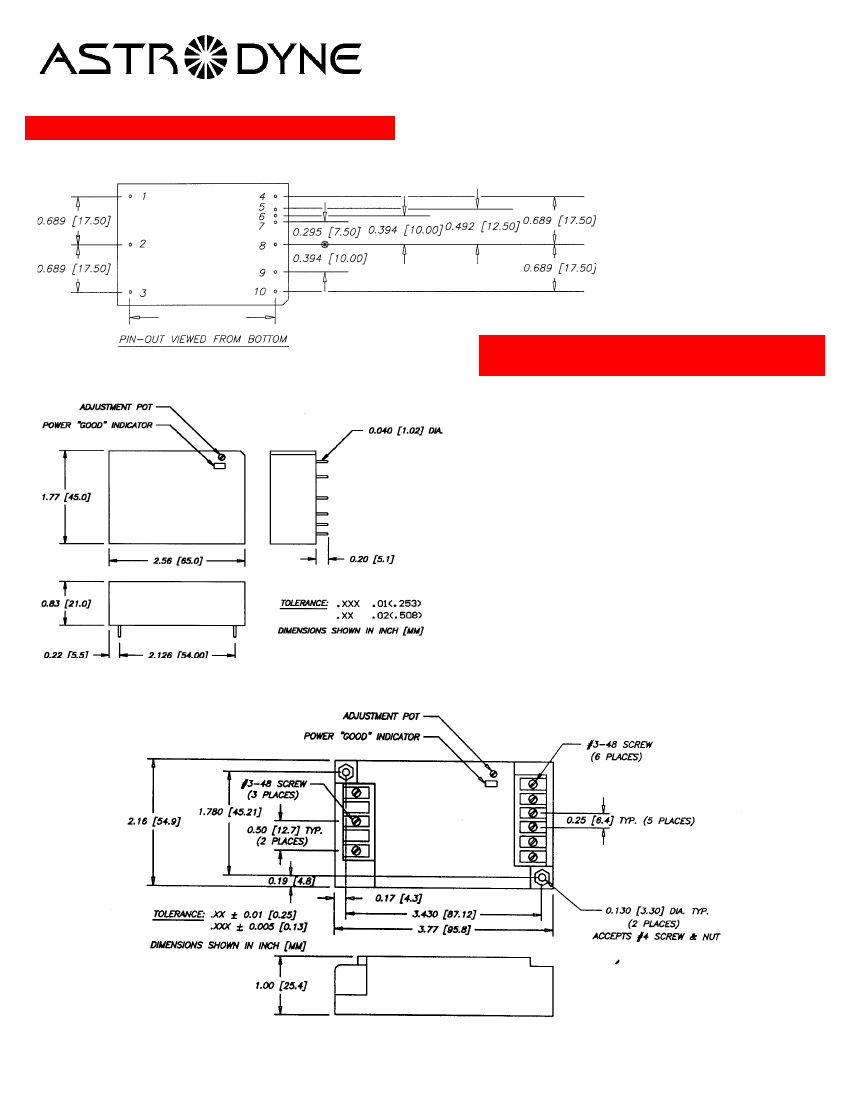

As Small As 2.56”L x 1.77”W x 0.83”H

MODEL SELECTIONS

Output

Voltage

Output

Amps/Watts

Size, (inches)

(PCB, CHASSIS)

Model

Number

Price

SINGLE OUTPUT

3.3 VDC

2.5/8W

5 VDC

12 VDC

15 VDC

24 VDC

2/10W

0.85/10W

0.67/10W

0.42/10W

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

MSCA-0100

MSCC-0100

MSCA-0101

MSCC-0101

MSCA-0102

MSCC-0102

MSCA-0103

MSCC-0103

MSCA-0105

MSCC-0105

$72

$83

$72

$83

$72

$83

$72

$83

$72

$83

$69

$79

$69

$79

$69

$79

$69

$79

$69

$79

DUAL OUTPUT

+/-12 VDC

+/-0.42/10W

+/-15 VDC

+5/12 VDC

+/-0.34/10W

1/0.42/10W

for

High Volume

Pricing

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

MDCA-0106

MDCC-0106

MDCA-0107

MDCC-0107

MDCA-0108

MDCC-0108

$78

$88

$78

$88

$78

$88

$74

$84

$74

$84

$74

$84

TRIPLE OUTPUT

+5,+/-12 VDC

1,0.1/0.1/10W

+5,+/-15 VDC

1,0.1/0.1/10W

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

(PCB)

2.56 x 1.77 x 0.83

(CHA)

3.77 x 2.16 x 1

MTCA-0109

MTCC-0109

MTCA-0111

MTCC-0111

$83

$93

$83

$93

$79

$89

$79

$89

300 Myles Standish Blvd., Taunton, MA 02780

Ph: 1-800-823-8082 Fax: 508-823-8181
