HM2P07PDW120Z1LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HM2P07PDW120Z1LF

Preview

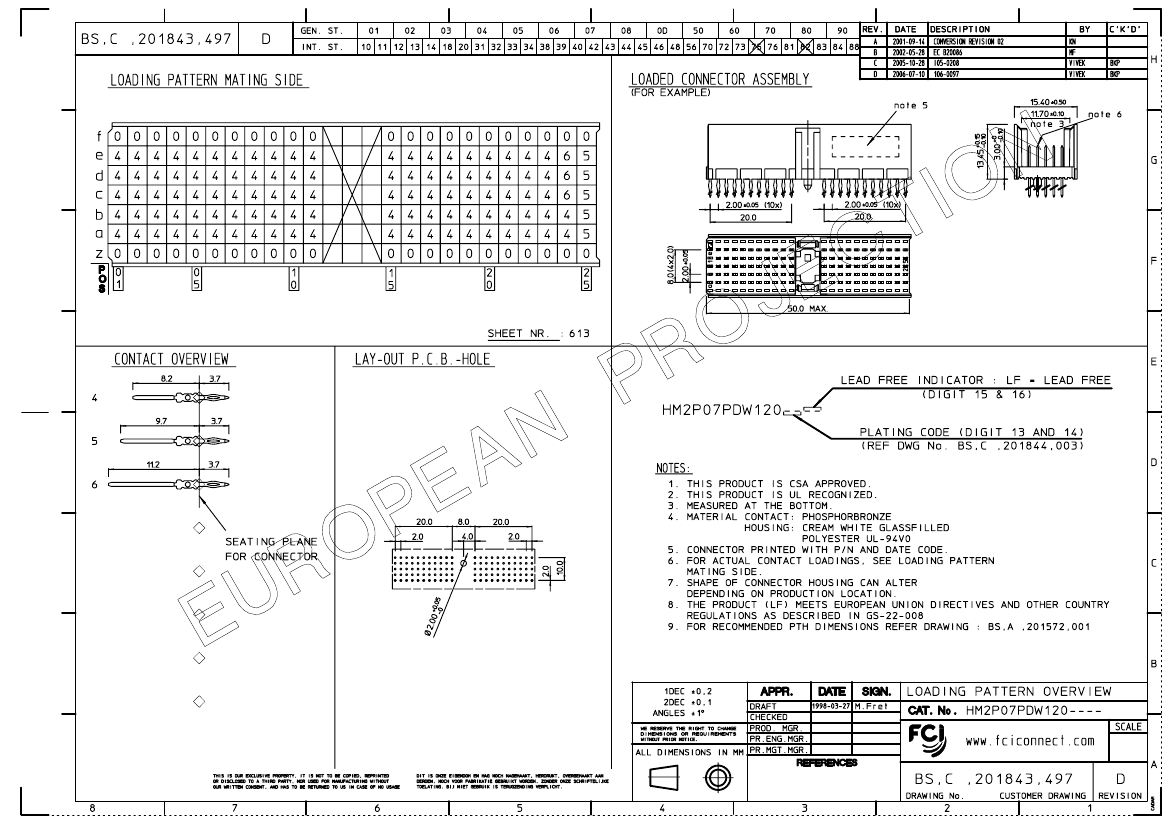

HM2P07PDW120Z1LF: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P07PDW120Z1LF Overview

Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P07PDW120Z1LF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (16) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 01, 2007

.

HM2P07PDW120Z1LF Related Products

	HM2P07PDW120Z1LF	HM2P07PDW120E9LF	HM2P07PDW120E9	HM2P07PDW120N9LF	HM2P07PDW120N9	HM2P07PDW120Z1
Description	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (16) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (16) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	110	110	110	110	110	110
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
