712S271

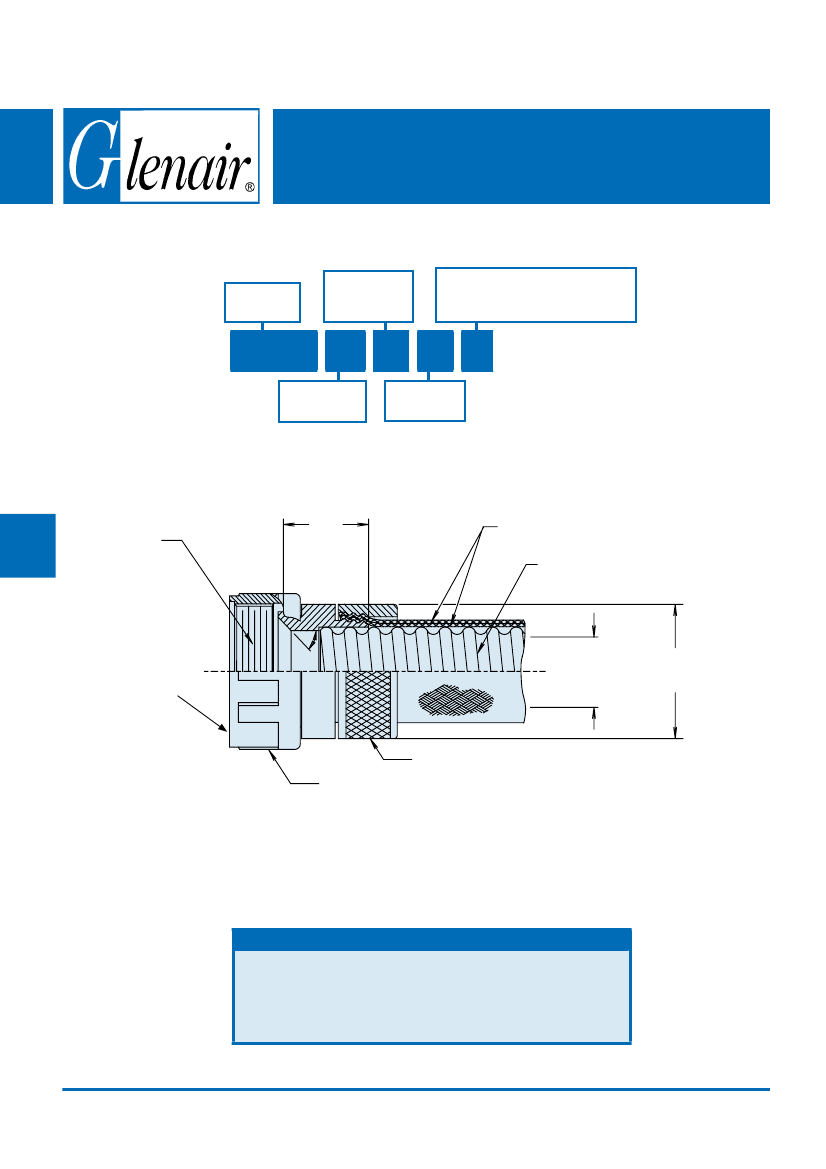

Composite Dual EMI/RFI Shield Termination
Conduit Fitting
For Glenair Series 74 Helical Convoluted Tubing
Convoluted
Tubing
A
Basic Part
Number
Conduit Fitting
Shell Size
(See
Table I)
Product Series
K
- For use with PEEK conduit material.
(Omit
for PFA, ETFE, FEP or PTFE)
712S271
XM
03
24
K
B
A Thread - Typ.
Class 2A
(See Note 2)
Finish Symbol
(See
Table III)
Tubing Size
(See
Table II)
C
1.06
(26.9)
Double Layer Braid (.030 to .080 Thickness
RFI Shield (Shown for Reference Only)
Convoluted Tubing (Shown
for Reference Only)
D
Hex Coupling
Nut
45°
Tubing
I.D.
J
Knurl or Flute Style Mfr. Option - Typ.
E
Anti-Decoupling Device
F
1.
2.
3.
4.
APPLICATION NOTES
Metric dimensions (mm) are in parentheses and are for reference only.
Convoluted tubing to be ordered seperately. See Type E tubing.
Mates to 710-318, -319, -320 and -321 transitions
Coupling nut supplied unplated.
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-22
Conduit Fitting
For Glenair Series 74 Helical Convoluted Tubing
