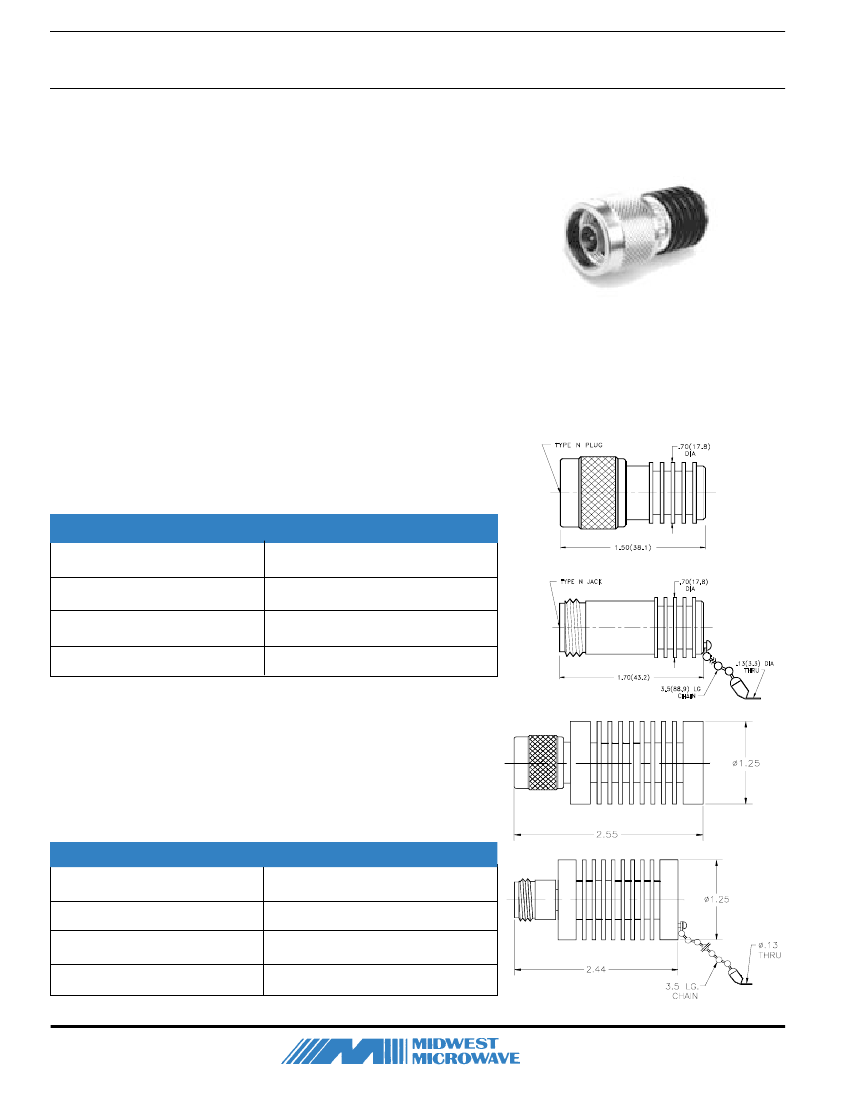

Wireless - Cellular Products
10 & 20 Watts - Type N Connector Interface
•
•
•
•
Wireless System Performance
10 or 20 Watts of Power Handling at 40
o
C
Low VSWR - 50 Ohm - High Performance.
Rugged Stainless Steel Interface Construction
Terminations
Midwest Microwave's N Type series of medium power coaxial Termi-
nations provide temperature stable, ruggedly built, precision perfor-
mance in light weight reasonably sized packages using stainless steel
connectors and housings of black anodized finned aluminum for
maximum heat dissapation. Input Power levels of 10 Watts is offered
with low VSWR performance.
10 Watts Power DC - 8.0 GHz Wireless System Performance
SPECIFICATIONS
Impedance:
50 Ohms
Frequency:
DC - 8.0 GHz
VSWR:
1.25:1
Power:
10 Watts average @ +25
o
C derated linearly to 1.0 Watts @ +125
Peak Power:
1 Kilowatt
Operating Temperature Range:
-54
o
C to +125
o
C
DC - 8.0 GHz
Male Plug
TRM-2076-M0-NNN-07
Female Jack
TRM-2076-F0-NNN-07
o
C
2076* Series
Model Numbers
Male Plug with Chain
TRM-2076-MC-NNN-07
Female Jack with Chain
TRM-2076-FC-NNN-07
* Note: DC - 12.4 GHz Models are available as the 2080 Series. Subsitute 2080 in place of 2076.
20 Watt DC - 8.0 GHz Wireless System Performance
SPECIFICATIONS
Frequency:
DC - 8.0 GHz
VSWR:
1.25
Impedance:
50 Ohms
Power:
20 Watts average @ +25
o
C derated linearly to 5.0
Peak Power:
6 Kilowatts at 40
o
C
Operating Temperature Range:
-54
o
C to +125
o
C
DC - 8.0 GHz
Male Plug
TRM-2077-M0-NNN-07
Female Jack
TRM-2077-F0-NNN-07
Watts @ +125
o
C
2077* Series
Model Numbers
Male Plug with Chain
TRM-2077-MC-NNN-07
Female Jack with Chain
TRM-2077-FC-NNN-07
* Note: DC - 12.4 GHz Models are available as the 2159 Series. Subsitute 2159 in place of 2077 to designate.
34
