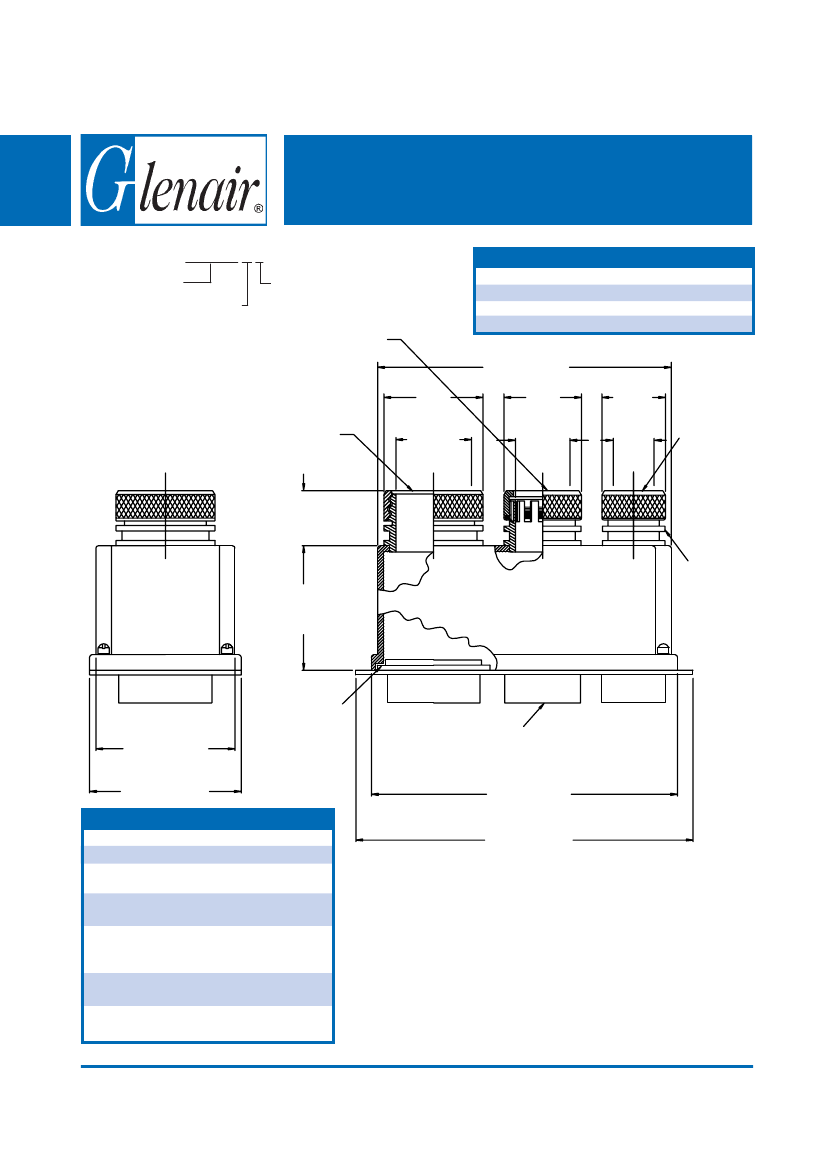

547-002
EMI/RFI TAG Ring
®
Backshell/Lamp Thread Adapter
with Shrink Boot Accomodation
for Cannon DPX3 Series Connectors
547-002 B T
Basic Part No.
Finish (Table I), Omit for
Electroless Nickel
T = Shrink Boots (Table II)
Provided, Omit for None
Tag Ring Individual
Shield Termination
3.50 (88.9)
1.43
(36.3)
Overall Shield
Termination
1.10
(27.9)
1.17
(29.7)
.88
(22.4)
.67
(17.0)
.38
(9.7)
Tag Ring
Individual
Shield
Termination
ARINC Series
400 (Cannon)
TABLE II - SHRINK BOOTS
Entry
A
B
C
Raychem Shrink Boot Part No.
202K163-25-0
202K142-25-0
202K121-25-0
.75
(19.1)
Typ.
A
Entry
2.00
(50.8)
B
Entry
C
Entry
Shrink Boot
Accomodation
Typ.
1.84 (46.7)
2.00 (50.8)
Accomodates
Connector
Insert Retention
Plate
Connector Shown
for Reference Only
3.78 (96.0)
TABLE I - FINISH OPTIONS
Symbol Finish
B
Cadmium Plate, Olive Drab
J
Iridite, Gold Over Cadmium Plate
over Nickel
N
Cadmium Plate, Olive Drab, Over
Nickel
NF
Cadmium Plate, Olive Drab, Over
Electroless Nickel (1000 Hour
Salt Spray)
T
Cadmium Plate, Bright Dip Over
Nickel (500 Hour Salt Spray)
CONSULT FACTORY FOR
OTHER AVAILABLE FINISHES
© 2004 Glenair, Inc.
4.354 (110.6)
1. Metric dimensions (mm) are indicated in parentheses.
2. Material/Finish:
Backshell, Tag Ring Body and Clamp = Al Alloy/Finish Per
Part No. Development
TAG Ring
®
Nut = Al Alloy/Gold Iridite
TAG Ring
®
Spring = Beryllium Copper/Gold Plate
Hardware = SST/Passivate
Friction Washer = Teflon/N.A.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
