527-128

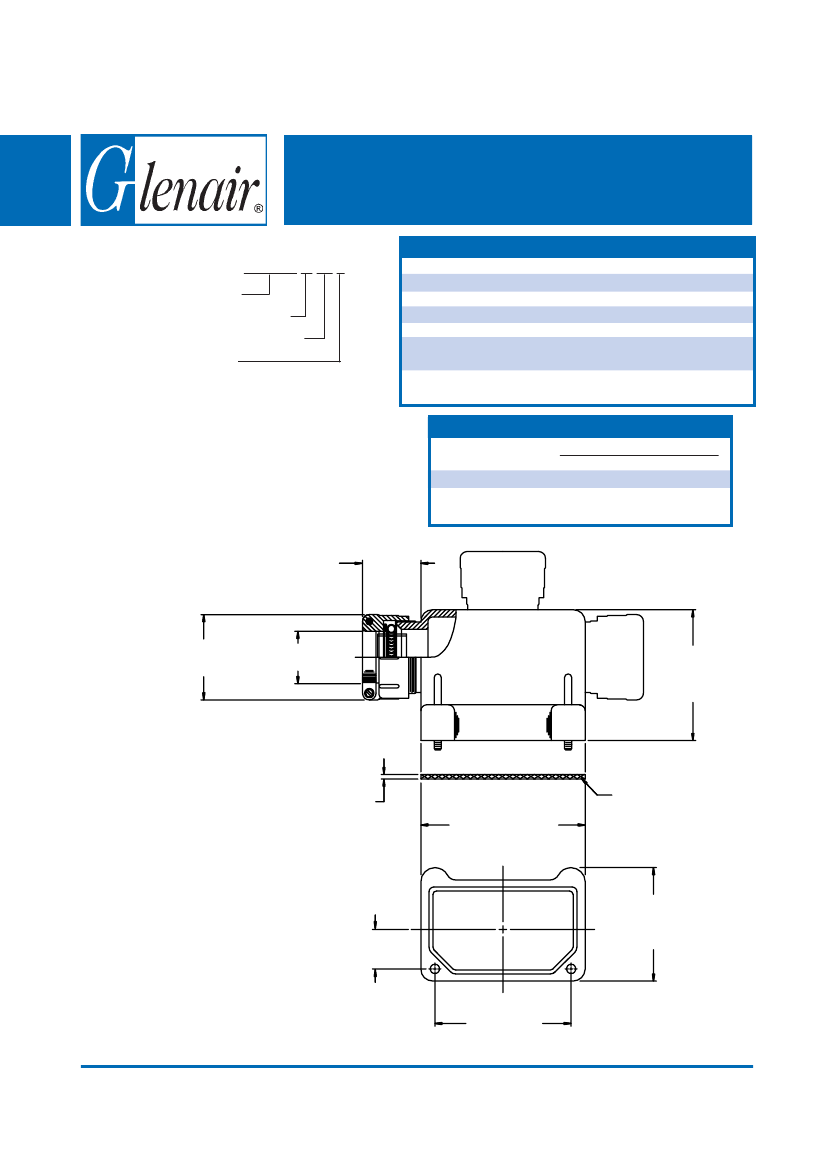

Solid G-Spring EMI/RFI Backshell for
Cannon DPXA Series Connectors
TABLE II - FINISH OPTIONS
527-128 M 01 L
Basic Part No.
Finish Symbol (Table II)
Dash No. (Table I, Note 2)
Entry Location:
L = Left Entry
R = Right Entry
T = Top Entry
Symbol
B
J
M
N
NF
T
Finish
Cadmium Plate, Olive Drab
Iridite, Gold Over Cadmium Plate over Nickel
Electroless Nickel
Cadmium Plate, Olive Drab, Over Nickel
Cadmium Plate, Olive Drab, Over Electroless
Nickel (500 Hour Salt Spray)
Cadmium Plate, Bright Dip Over Nickel
(500 Hour Salt Spray)
ARINC Series
400 (Cannon)
TABLE I: CABLE ENTRY
A
Dash
Max
No.
.968 (24.6)
01
02 * 1.218 (30.9)
* See Note 2
1.00
(25.4)
Max
Typ.
Cable Range
Min
Max
.156 (4.0) .375 (9.5)
.375 (9.5) .625 (15.9)
Top
Entry
A
Typ.
Cable Range Typ.
Right
Entry
Left
Entry
1.50
(38.1)
1. Metric dimensions (mm) are
indicated in parentheses.
2. Dash No. 02 available with top
entry only.
3. Material/Finish:
Backshell and Clamp =
Al Alloy/Table II
G-Spring and Hardware =
SST/Passivate
Friction Washer = Teflon/N.A.
EMI/RFI Gasket = Metalastic/
N.A.
.02 (.5)
RFI/EMI Gasket
1.734
(44.0)
Max
.407
(10.3)
1.195
(30.4)
Max
1.468 (37.3)
